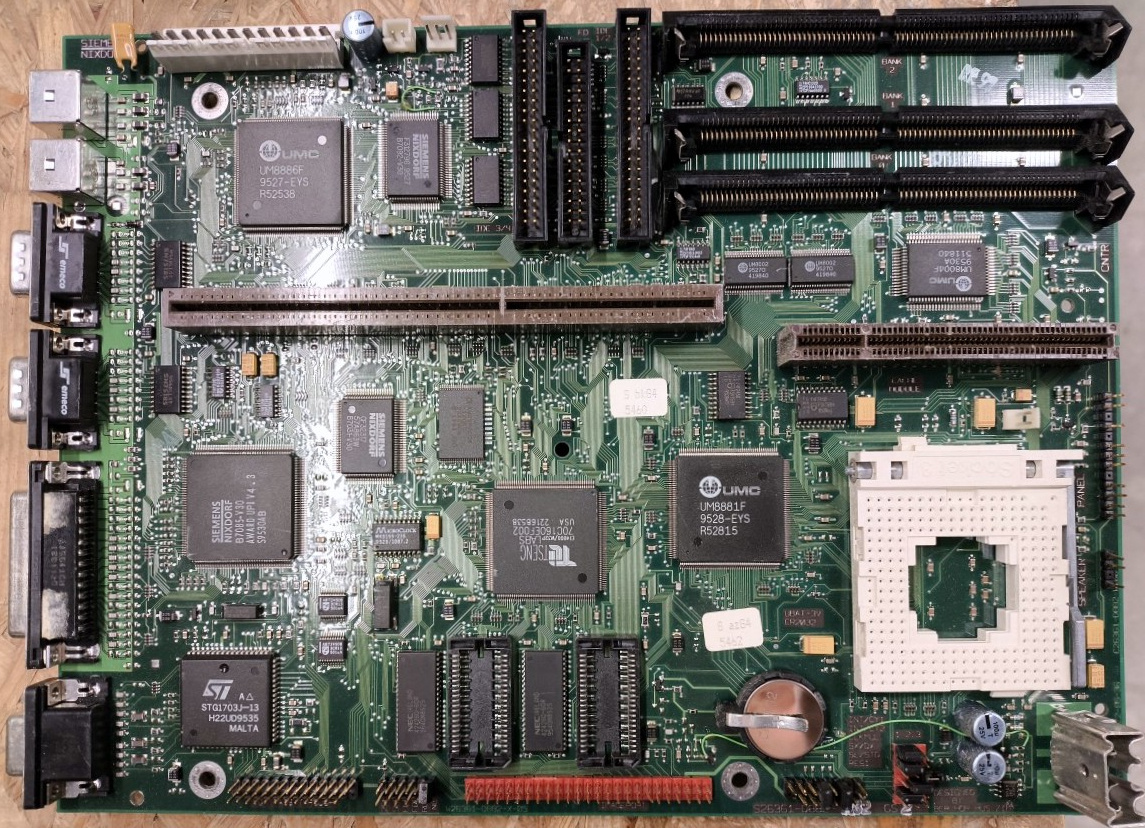

Siemens Nixdorf System Board D882
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speed
33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
310mm x 254mm
ramMax VRAM size
2MB
chipCache
0B128KB256KB
ramMax RAM size
96MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as

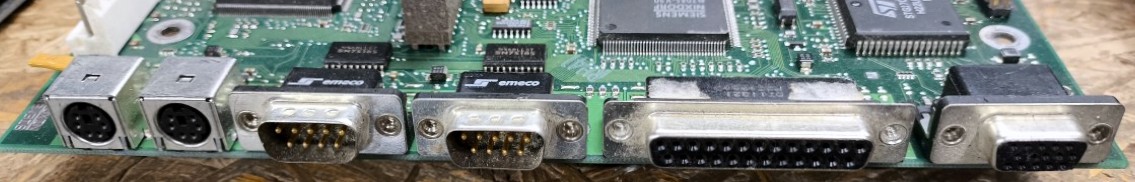

connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA

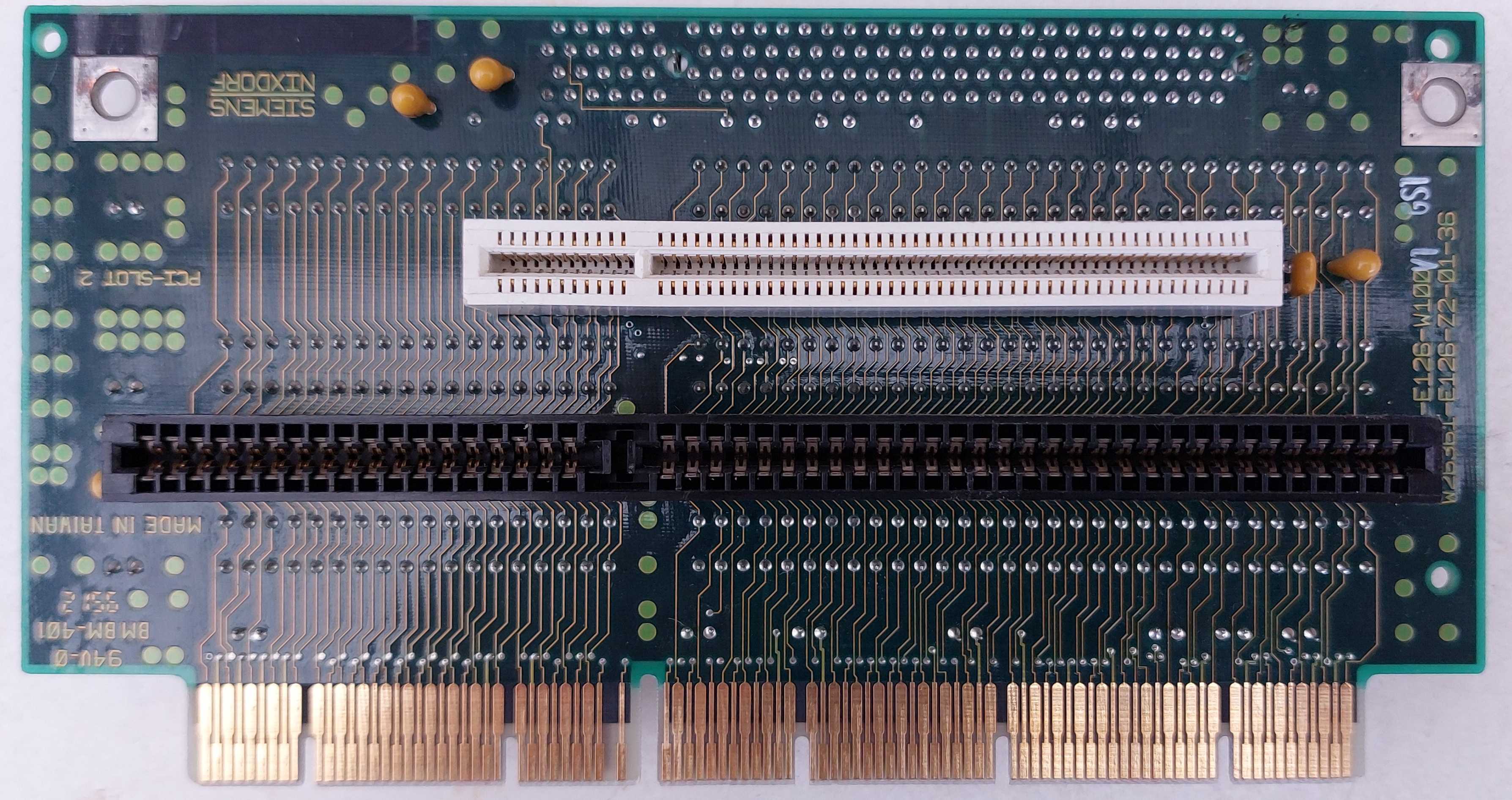

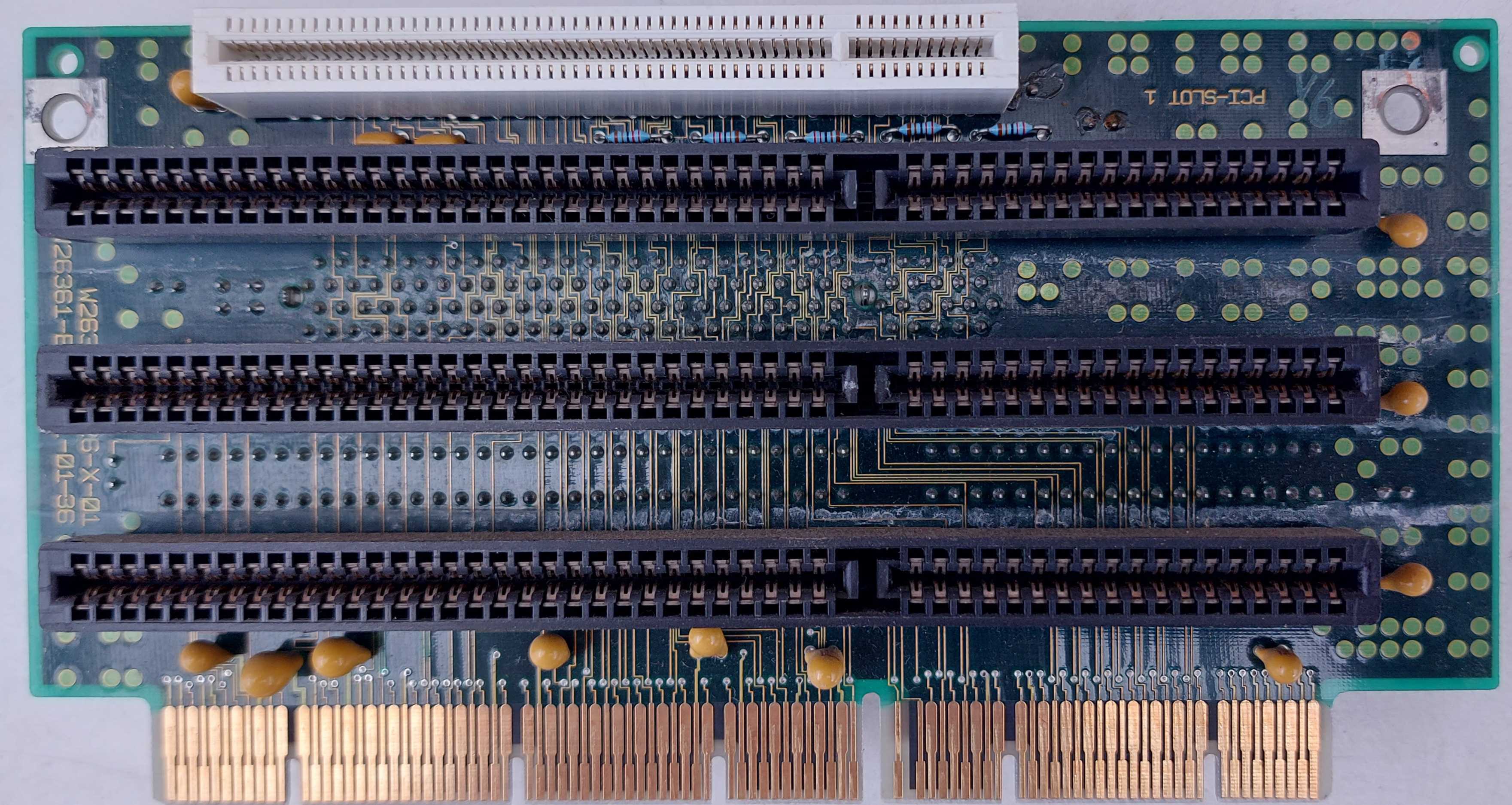

cardExpansion slots
1x
PISA
wrench Known issues

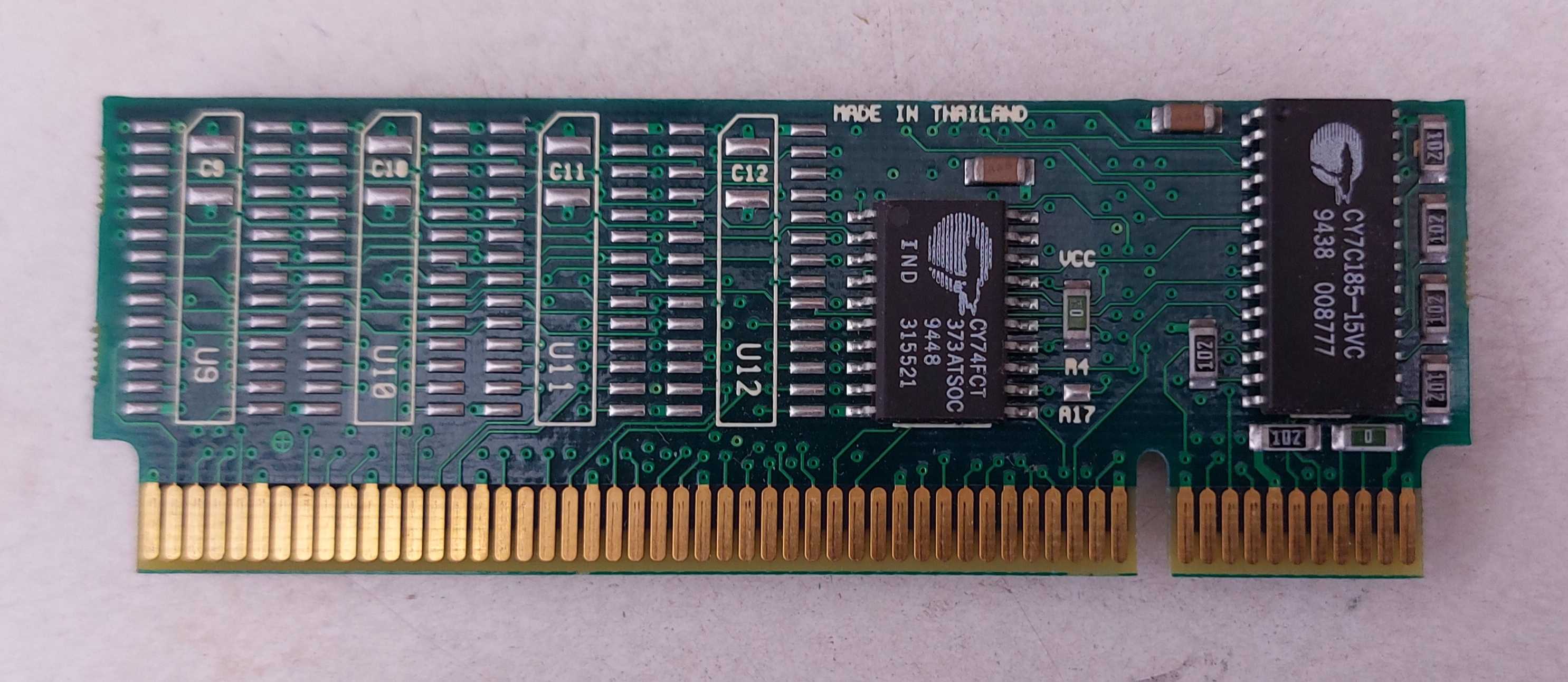

  • Proprietary Cache Slot

The motherboard has a distinctive, non-standard cache that can affect compatibility and performance. The cache slot might resemble a familiar slot type, such as an Intel COAST slot or another common design. However, it is not compatible with these modules. Connecting an incompatible module may lead to irreversible damage to the motherboard. Exercise caution to prevent damage to your hardware. It is likely that you are dealing with a PCChips motherboard.

Last updated 2025-09-24T10:34:50Z
Board info score is 9/10
chip Chips
-> Chipset part
UMC UM8881F UMC UM8886F
-> Video
Tseng Labs (TLI) ET4000/W32p
cpufam CPU family support
bios 6 BIOS files available

vendor Phoenix - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Siemens self-extracting executable (Windows)
Core version
4.04
BIOS version
Logs
POST string
Note
Resulting floppy image
Core version
4.04
BIOS version
Logs
POST string
Note
Resulting floppy image
Core version
4.04
BIOS version
Logs
POST string
Note
Siemens self-extracting executable (DOS)
Core version
4.04
BIOS version
Logs
POST string
Note
Resulting floppy image
Core version
4.04
BIOS version
Logs
POST string
Note
BAD DUMP!
Core version
4.04
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 3.1x
Arch
x86
Size
624.8KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
958.1KB
Filename
Name
Version
1992-01-15
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
504.9KB
Filename
Name
Version
1991-10-29
OS support
Windows 3.1x
Arch
x86
Size
397.5KB
Filename
Name
Version
1991-12-06
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
399.3KB
Filename
Name
Version
4.0.953
OS support
Windows 9x
Arch
x86
Size
18.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
545.2KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
543KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
621.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
989.7KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1994
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 8 (CircusCat)
image2 Image 2 of 8 (Electromyne)
image3 Image 3 of 8 (CircusCat)
image4 Image 4 of 8 (CircusCat)
image5 Image 5 of 8 (CircusCat)
image6 Image 6 of 8 (CircusCat)
image7 Image 7 of 8 (CircusCat)
image8 Image 8 of 8 (Electromyne)
