Siemens Nixdorf System Board D823
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
OEM / Proprietary
dimDimensions
330mm x 350mm
chipCache
256KB
ramMax RAM size
256MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
1x
16-bit ISA
4x
32-bit EISA
3x
32-bit PCI
wrench No board specific known issues
  • Faulty IDE Controller

The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.

Last updated 2025-08-02T17:55:55Z
Board info score is 9/10
bios 3 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Latest BIOS
Core version
1.03
BIOS version
Logs
POST string
Note
Core version
1.03
BIOS version
Logs
POST string
Note
Core version
1.03
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Alexei)

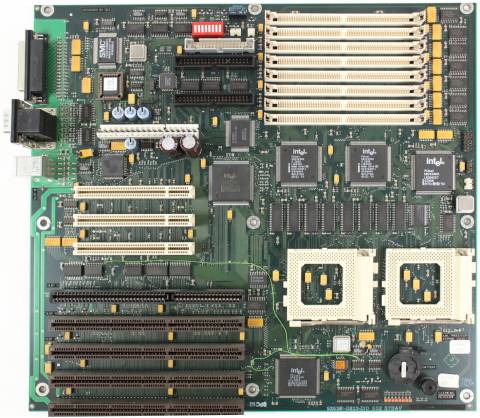

image3 Image 3 of 5 (Clous)
image4 Image 4 of 5 (Clous)

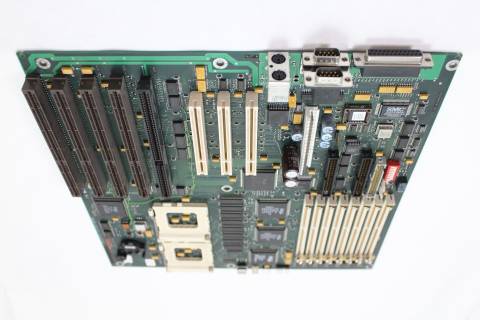

image5 Image 5 of 5 (Clous)
