Shuttle HOT-675
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz75MHz83MHz100MHz102MHz112MHz124MHz133MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244 mm x 199 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
2x
32-bit PCI
notes Notes

Officially does not support Coppermine because the VRM only goes down to 1.8V (CuMine needs 1.65V). The patched bios will recognize CopperMine CPUs, running them overclocked and all is purely at your own risk.

Last updated 2025-10-12T18:15:25Z
Board info score is 9.6/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/17/1999-i440BX-W977-2A69KH2DC-00
Note
Added microcodes for all P2/P3 processors
Core version
4.51PG
BIOS version
Logs
POST string
05/17/1999-i440BX-W977-2A69KH2DC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
02/10/1999-i440BX-W977-2A69KH2DC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/18/1998-i440BX-W977-2A69KH2DC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.06.1154
OS support
Windows 9x Windows NT 4.0
Arch
Size
20.9MB
Filename
Name
Version
5.12.01.4107
OS support
Windows 2000 Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-08-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-03
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

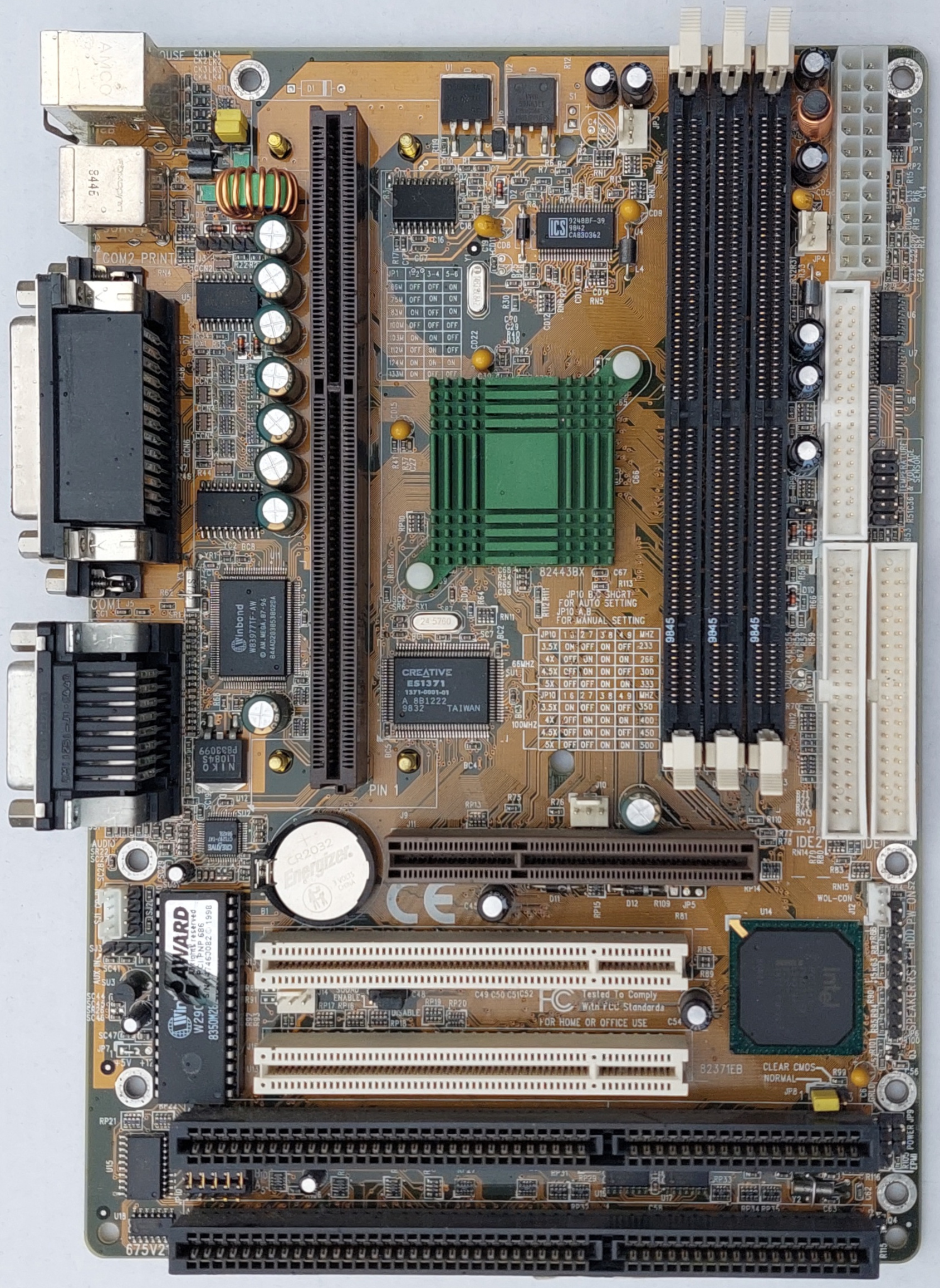

image1 Image 1 of 3 (evasive)

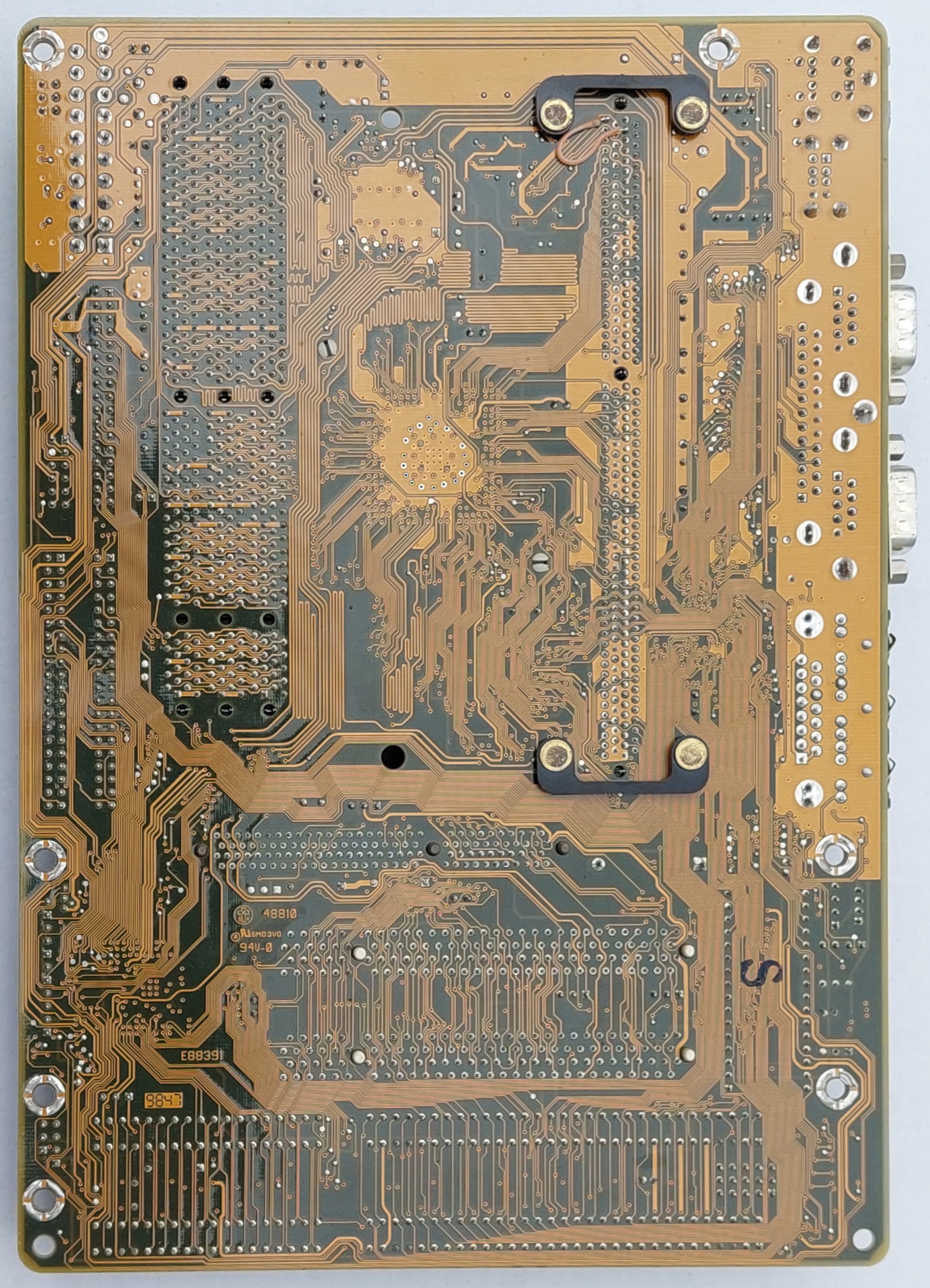

image2 Image 2 of 3 (Lyawon)

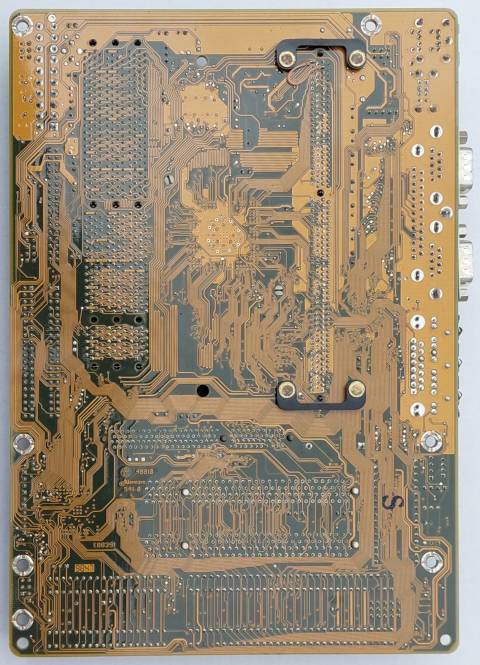

image3 Image 3 of 3 (Lyawon)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
