Shuttle FS40
Chipset
Socket
FSB speeds 200MHz266MHz333MHz400MHz
Form factorFlex ATX (max 228.6 × 190.5 mm)
Dimensions254mm × 185mm
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
Also known as
- Shuttle XPC SS40G system board
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S-Video
1x
S/PDIF
1x
Serial
4x
USB 1.x
1x
VGA
Expansion slots1x
32-bit PCI
Last updated 2025-09-09T17:28:00Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
-> Video
CPU family support
16 BIOS files available
Award - 16 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/15/2003-SiS-740-6A6IY00AC-00
Note
rev 2.1 PCB
Core version
6.00PG
BIOS version
Logs
POST string
12/25/2002-SiS-740-6A6IY00AC-00
Note
rev 2.1 PCB
Core version
6.00PG
BIOS version
Logs
POST string
12/10/2002-SiS-740-6A6IY00AC-00
Note
rev 2.1 PCB
Core version
6.00PG
BIOS version
Logs
18 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000
Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
3.73
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
1 other file available
Title
File
Logs

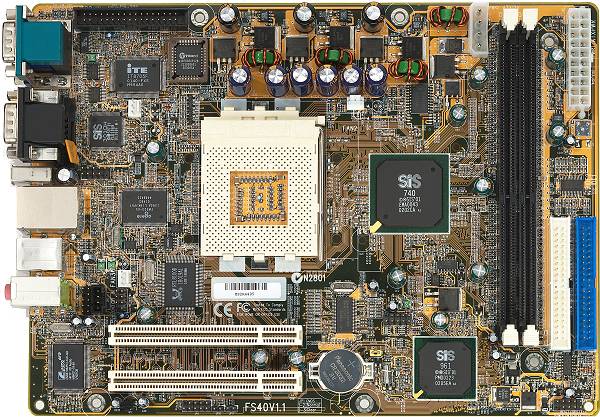

Image 1 of 3 (evasive)
Image 2 of 3 (Shuttle)

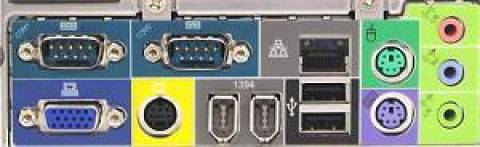

Image 3 of 3 (Shuttle)
