Shuttle AK35 V2.x
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
6x
32-bit PCI
1x
Universal AGP
Last updated 2025-06-06T19:52:50Z
Board info score is 9.4/10
chip Chips
-> Chipset part
VIA VT8367 (KT333) VIA VT8233A
-> Audio
C-Media CMI8738/PCI (C3DX)
-> RAID ctrl.
HighPoint HPT372
-> Super I/O
Winbond W83697HF
cpufam CPU family support
bios 11 BIOS files available

vendor Award - 11 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/09/2004-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/05/2003-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/12/2003-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/16/2003-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/19/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/10/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/30/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/12/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/03/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/22/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/12/2002-AK35-6A6LVH2EC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.98
OS support
MS-DOS
Arch
x86
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
2.352.7.126
OS support
Windows Vista
Arch
x86 , x86-64
Size
79.4KB
Filename
Name
Version
2.344
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
137.6KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
26.2KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
250.8KB
Filename
Version
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
184.8KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

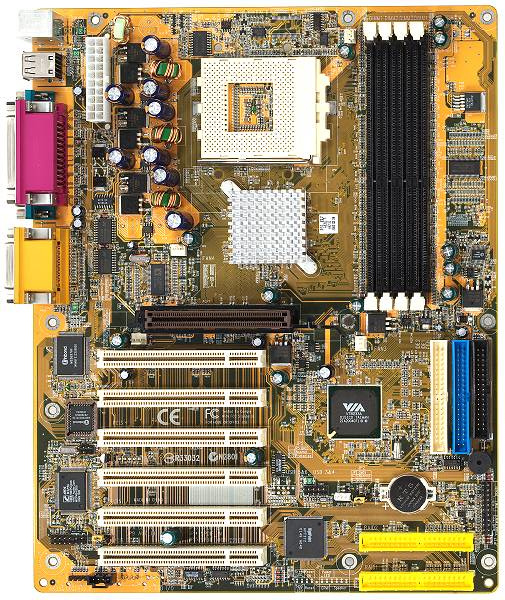

image1 Image 1 of 2 (Shuttle)

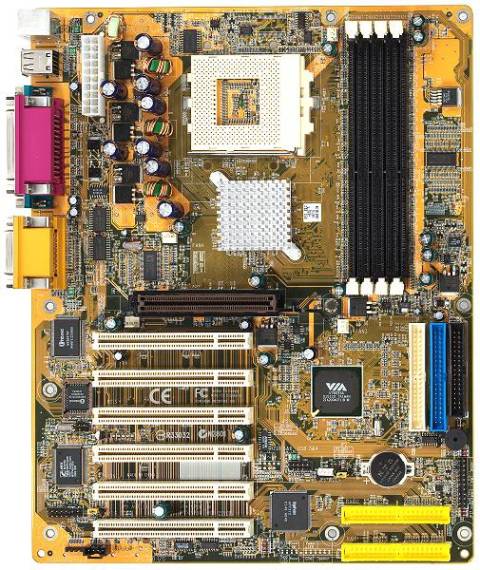

image2 Image 2 of 2 (Shuttle)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
