Samsung SPC4200P
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
12.5MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Both System and video bios are in the same ROM chip for the models with onboard VGA

Last updated 2025-06-24T19:40:13Z
Board info score is 7.1/10
bios 2 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
with C&T 451 VGA bios 2.11
Core version
286 BIOS PLUS
BIOS version
Logs
POST string
Note
with C&T 411 VGA bios 2.11
Core version
286 BIOS PLUS
BIOS version
Version 3.10 02M
Logs
POST string
Note
Core version
286 BIOS PLUS
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.0
OS support
MS-DOS
Arch
Size
13.3KB
Filename
Name
Version
N/A
OS support
MS-DOS OS/2 1.x Windows 2.x
Arch
Size
505.9KB
Filename
Name
Version
2.1
OS support
MS-DOS Windows 2.x
Arch
x86
Size
479.2KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

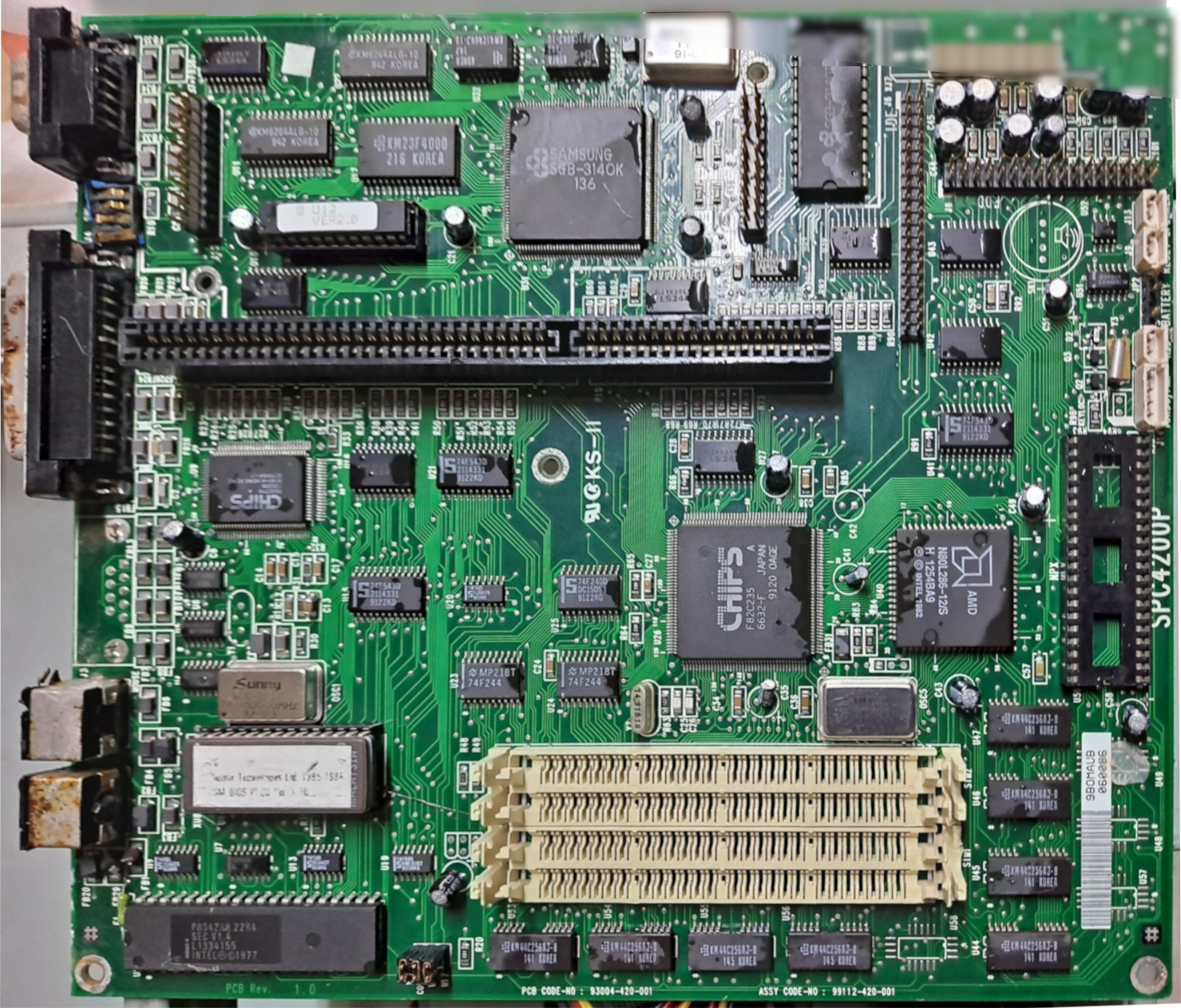

image1 Image 1 of 1 (comtong088)
