RioWorks LH520-V
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
800MHz
moboForm factor
SSI EEB (max 305 × 330 mm)
dimDimensions
Empty
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR RDIMM ECC
pwrPSU connector
12V EPS Connector (24-pin EPS) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA I
4x
SATA II
1x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
2x
64-bit PCI-X
1x
PCIe x4
1x
PCIe x8
Last updated 2024-09-09T19:01:51Z
Board info score is 7.4/10
bios 0 BIOS files available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
1.0E
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
1.00
OS support
Windows 2000 Windows XP/2k3
Arch
x86 , x86-64
Size
374.1KB
Filename
Name
Version
2.0.2600.2
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Name
Version
3.6.3.3 (Win2000/XP) / 1.0.2010.827 (Vista/Win7/2008)
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-07
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
1999-01-10
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

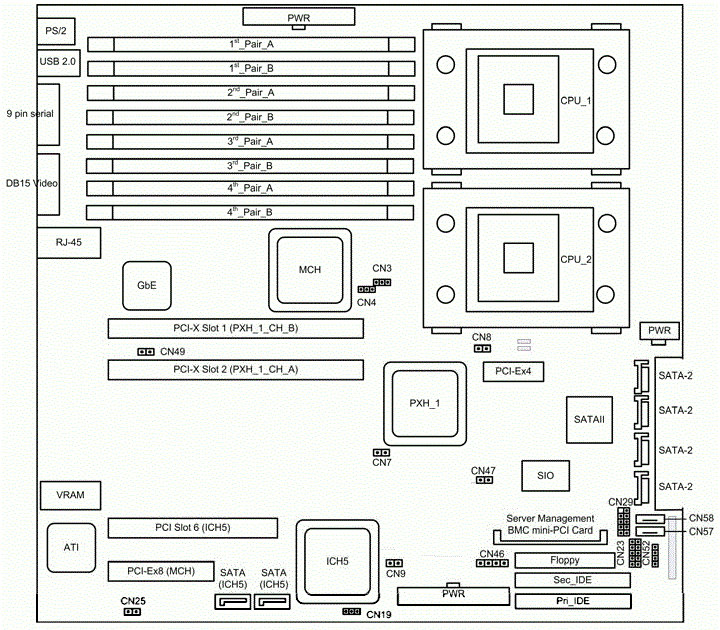

image1 Image 1 of 1 (evasive)
