RioWorks HDAMA (Rev. D/E)
Chipset
Socket
FSB speed Empty
Form factorSSI EEB (max 305 × 330 mm)
Dimensions304mm x 330mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR2 UDIMM ECC
PSU connector
Multi CPU support2 CPUs
Also known as
- RioWorks HDAMA-WOS (no SATA)
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
4x
SATA I
2x
Serial
4x
USB 1.x
1x
VGA
Expansion slots2x
32-bit PCI
4x
64-bit PCI-X
Notes
Requires a SSI EPS12V (24pin + 8pin) power supply
Check the revision of the board on the sticker attached to the AUX power connector - HDAMA without a sticker is Rev. D, HDAMA with a sticker is a Rev. E
The on-board S-ATA firmware is different between Rev.D and Rev.E BIOS
- Rev.D: Promise PDC20319 controller
- Rev.E: Silicon Image Sil3114 controller
HDAMA-WOS can be used with either BIOS
Last updated 2024-08-02T21:06:32Z
Board info score is 8.6/10
Chips
-> Chipset part
-> Network
-> SATA ctrl.
-> Super I/O
-> Video
CPU family support
14 BIOS files available
Phoenix - 14 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
19 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.8.7
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
5.3MB
Filename
Name
Version
8.2.2.0
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
6.2MB
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
1.0.65.1
OS support
Windows 7
Arch
x86
, x86-64
Size
6.9MB
Filename
Name
Version
1.3.10.0
OS support
Windows 9x
Arch
x86
Size
126.6KB
Filename
Name
Version
1.2.9.0
OS support
Windows Vista
Windows XP/2k3
Arch
Size
377.5KB
Filename
Name
Version
1.3.11.0
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
Size
132.2KB
Filename
Name
Version
1.5.20.3
OS support
Windows Vista
Windows XP/2k3
Arch
Size
266.7KB
Filename
Name
Version
1.5.20.3
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
Size
216.5KB
Filename
Name
Version
1.0.20.0
OS support
Linux
Windows 2000
Windows 9x
Windows NT 4.0
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-01-10
File
Logs
Chip
Release date
2008-08-14
File
Logs
Chip
Release date
2006
File
Logs
1 other file available
Title
File
Logs

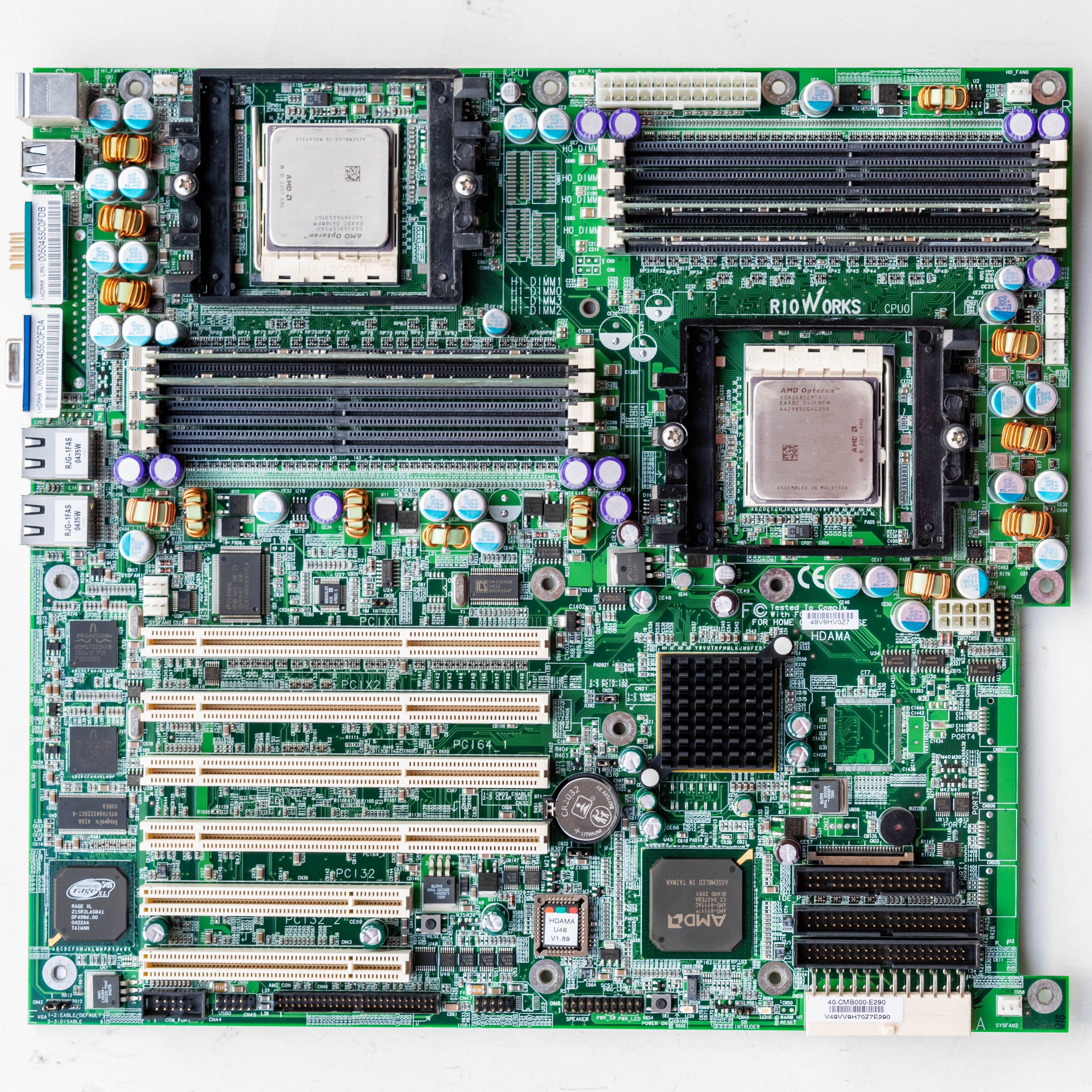

Image 1 of 3 (Motherboard Continuum)

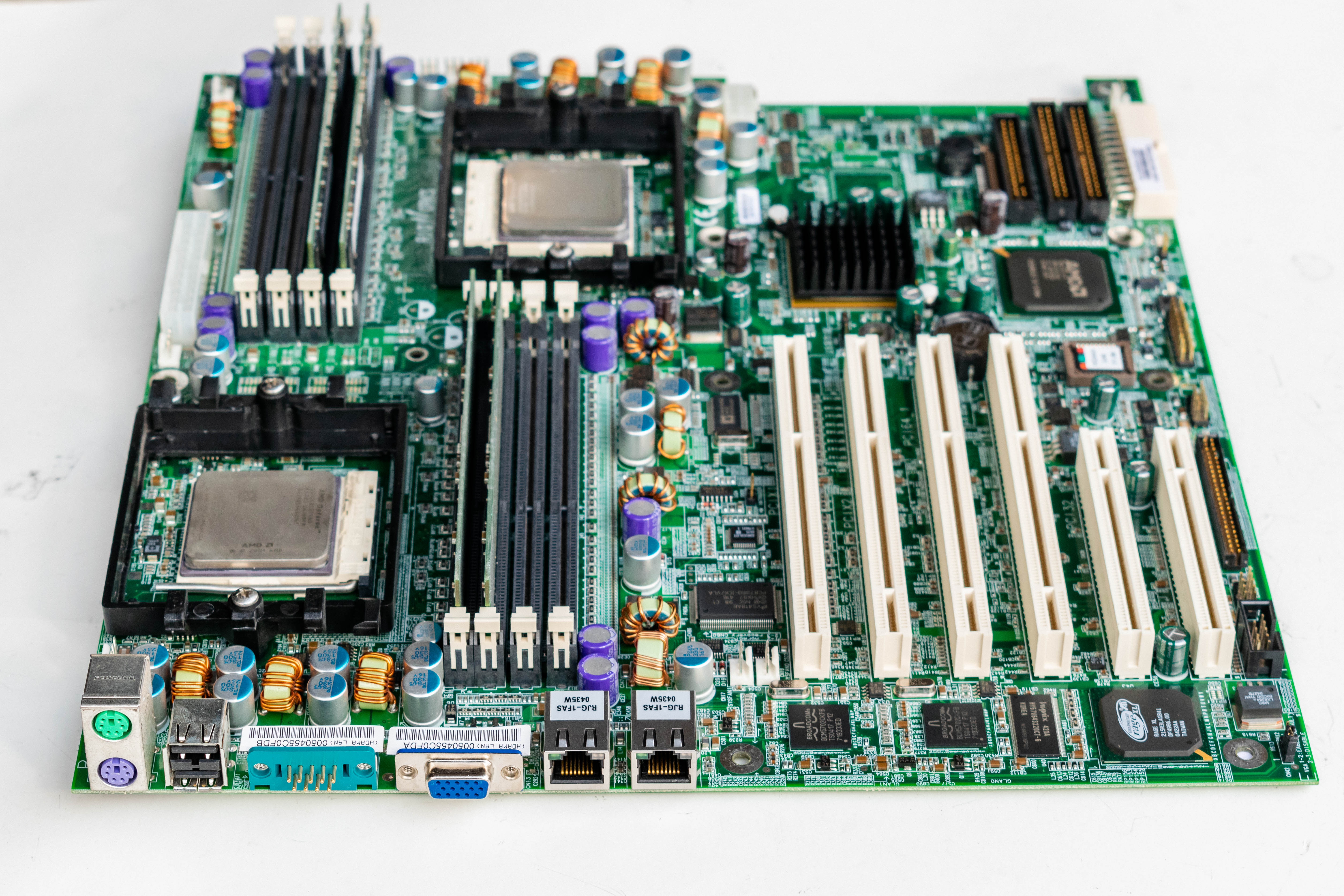

Image 2 of 3 (Motherboard Continuum)

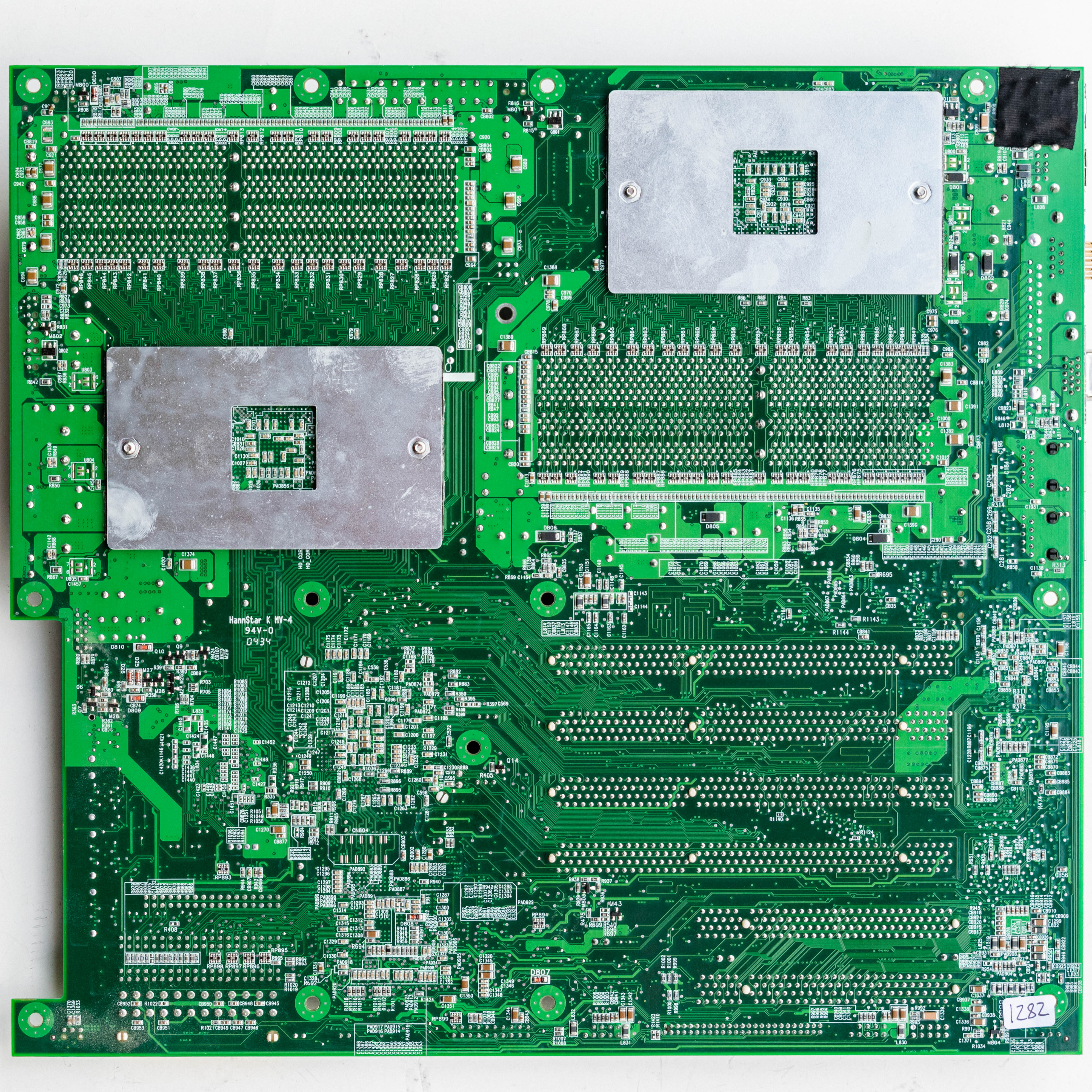

Image 3 of 3 (Motherboard Continuum)
