QDI P6I845/P2D/533 (PlatiniX 2D/533)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 224mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • QDI PlatiniX 2D/533-A (P2D/533-A)
  • QDI PlatiniX 2D/533-L (P2D/533-L)
  • QDI PlatiniX 2D/533-AL (P2D/533-AL)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
SB_Link
2x
Serial
4x
USB 1.x
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
1x
CNR
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

LAN is optional

Last updated 2025-10-17T22:19:05Z
Board info score is 8.6/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/24/2003-i845-W83627-6A69VQ1AC-00
Note
Latest BIOS
Core version
6.00PG
BIOS version
Logs
POST string
12/23/2002-i845-W83627-6A69VQ1AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/03/2002-i845-W83627-6A69VQ1AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/31/2002-i845-W83627-6A69VQ1AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/20/2002-i845-W83627-6A69VQ1AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/18/2002-i845-W83627-6A69VQ1AC-00
Note
First Release for PlatiniX 2D/533
Core version
6.00PG
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.13.10
OS support
Windows XP/2k3
Arch
Size
1.6MB
Filename
Name
Version
N/A
OS support
Windows 2000 Windows 9x
Arch
Size
371.6KB
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
5.31.0.0
OS support
MS-DOS OS/2 2.x Windows 2000 Windows NT 4.0
Arch
Size
60MB
Filename
Name
Version
6.2
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-06
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

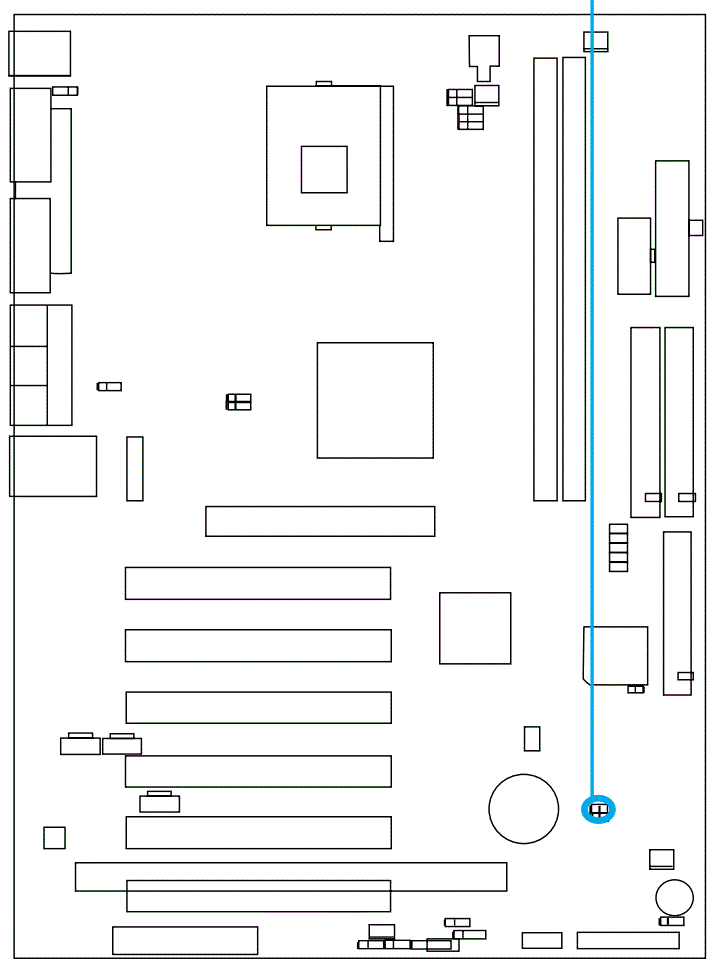

image1 Image 1 of 4 (QDI)

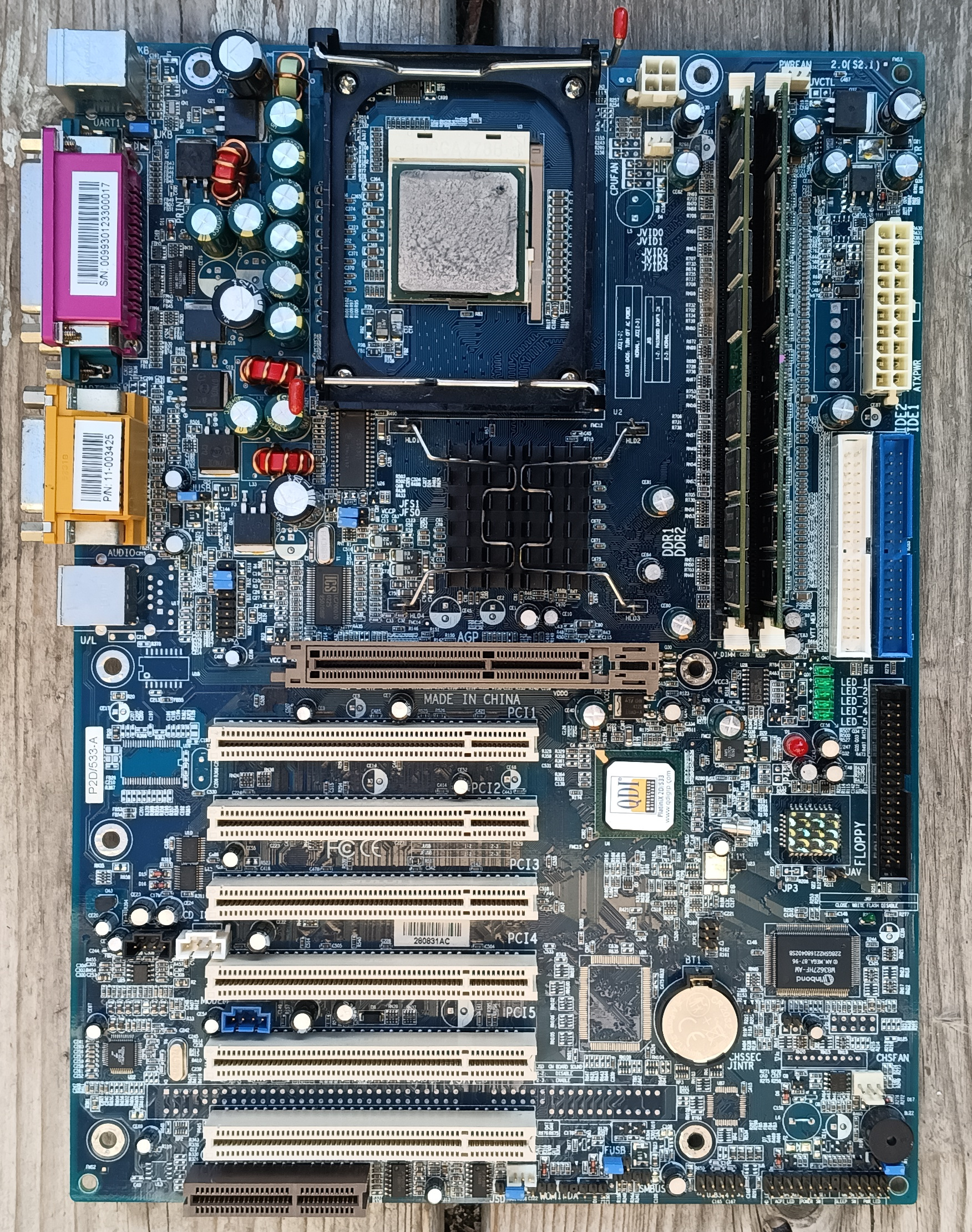

image2 Image 2 of 4 (dataino.it)

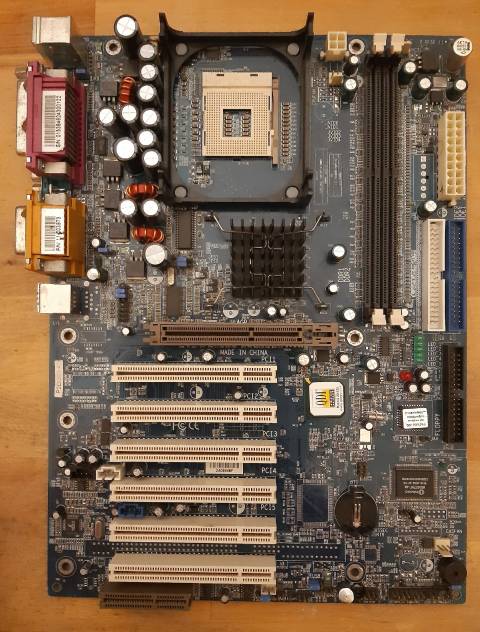

image3 Image 3 of 4 (Carlos S. M.)

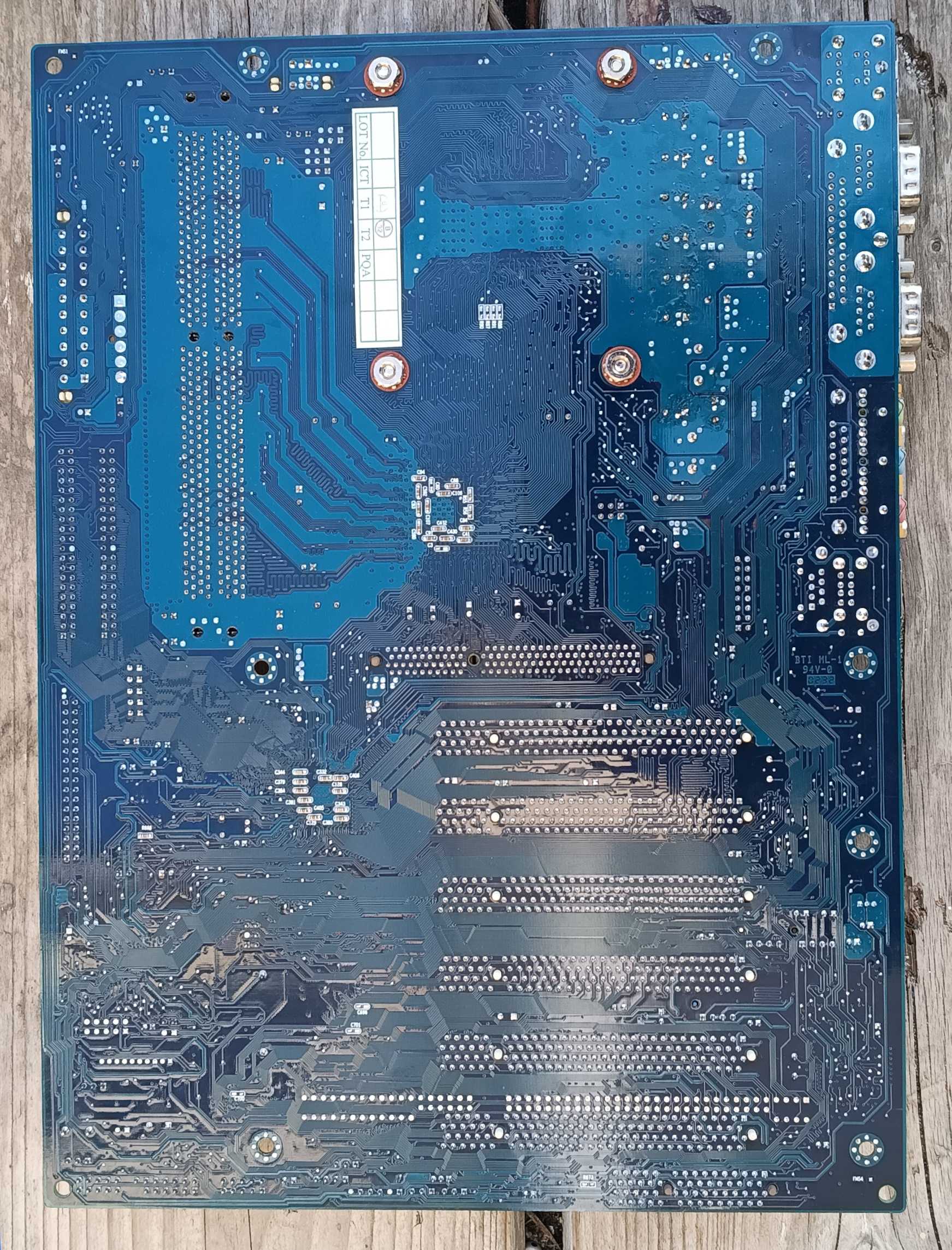

image4 Image 4 of 4 (dataino.it)
