Protech ISA-562LF
Logs
chipChipset
cpuSocket
FCBGA479 (BGA479)
speedFSB speed
400MHz
moboForm factor
Single Board Computer
dimDimensions
185 mm x 122 mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB(DDR333)
ramRAM type
200-pin DDR SO-DIMM
pwrPSU connector
OEM/Proprietary
tag Also known as
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
1x
PC/104
notes Notes
  • can also come with an ULV Celeron M 1GHz or Pentium M LV 1.4GHz
  • can come with an ALC202 or ALC203 Sound Chip
Last updated 2025-10-16T16:10:51Z
Board info score is 9.3/10
chip Chips
-> Chipset part
Intel 82855GME (GMCH)
-> Bridge Interface
ITE IT8888F (PCI to ISA Bridge)
-> Network
Intel 82562ET (10/100M PLC)
-> Processor
Intel Celeron M 370 (BGA) (RJ80536NC0211M)
-> Super I/O
Winbond W83627HG
cpufam CPU family support
Empty
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/12/2006-i852-W83627HF-6A69YP6LC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/12/2006-i852-W83627HF-6A69YP6LC-00
Note
fullscreen logo removed
Core version
v6.00PG
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-01
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2005-03
File
Logs
Chip
Release date
2003-10
File
Logs
Chip
Release date
File
Logs

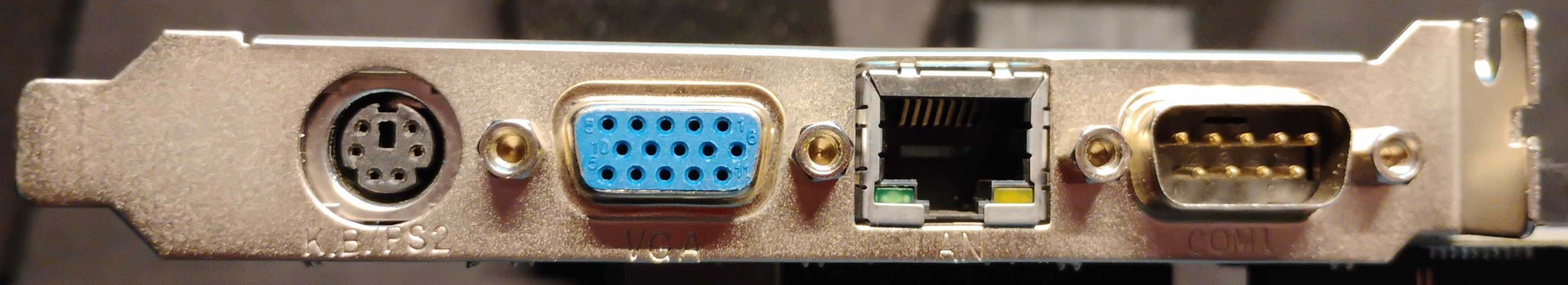

image1 Image 1 of 4 (Protech)

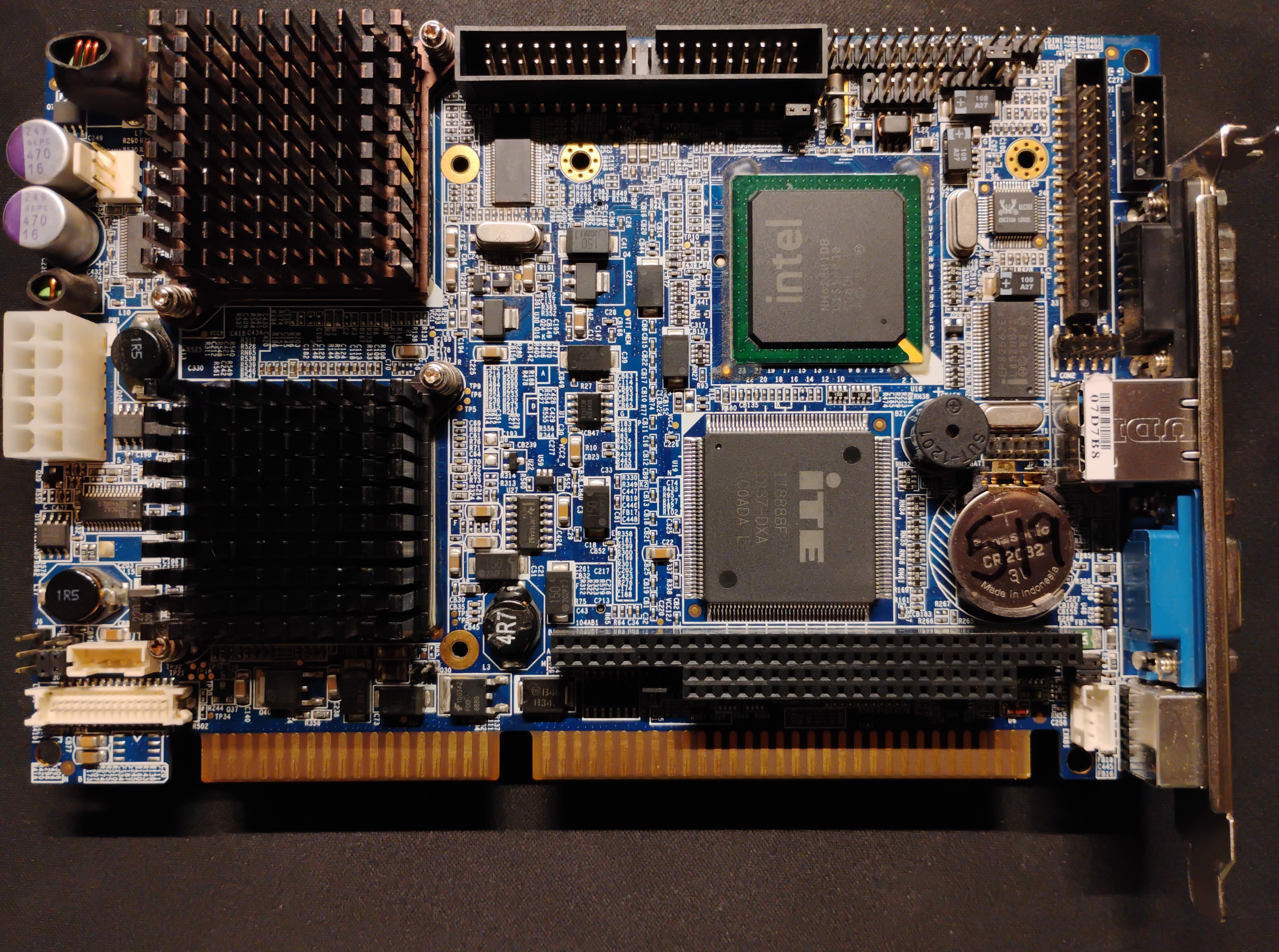

image2 Image 2 of 4 (megatog615)

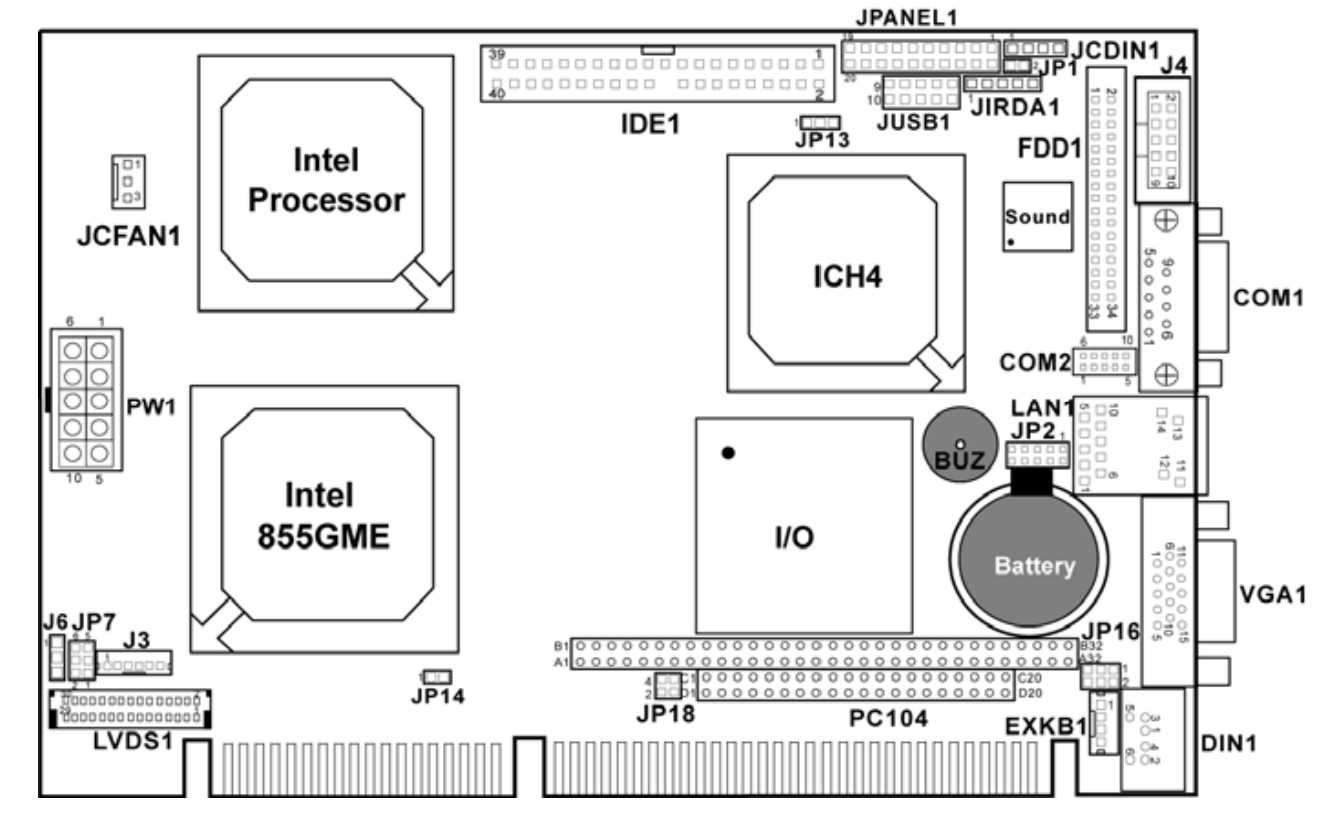

image3 Image 3 of 4 (megatog615)

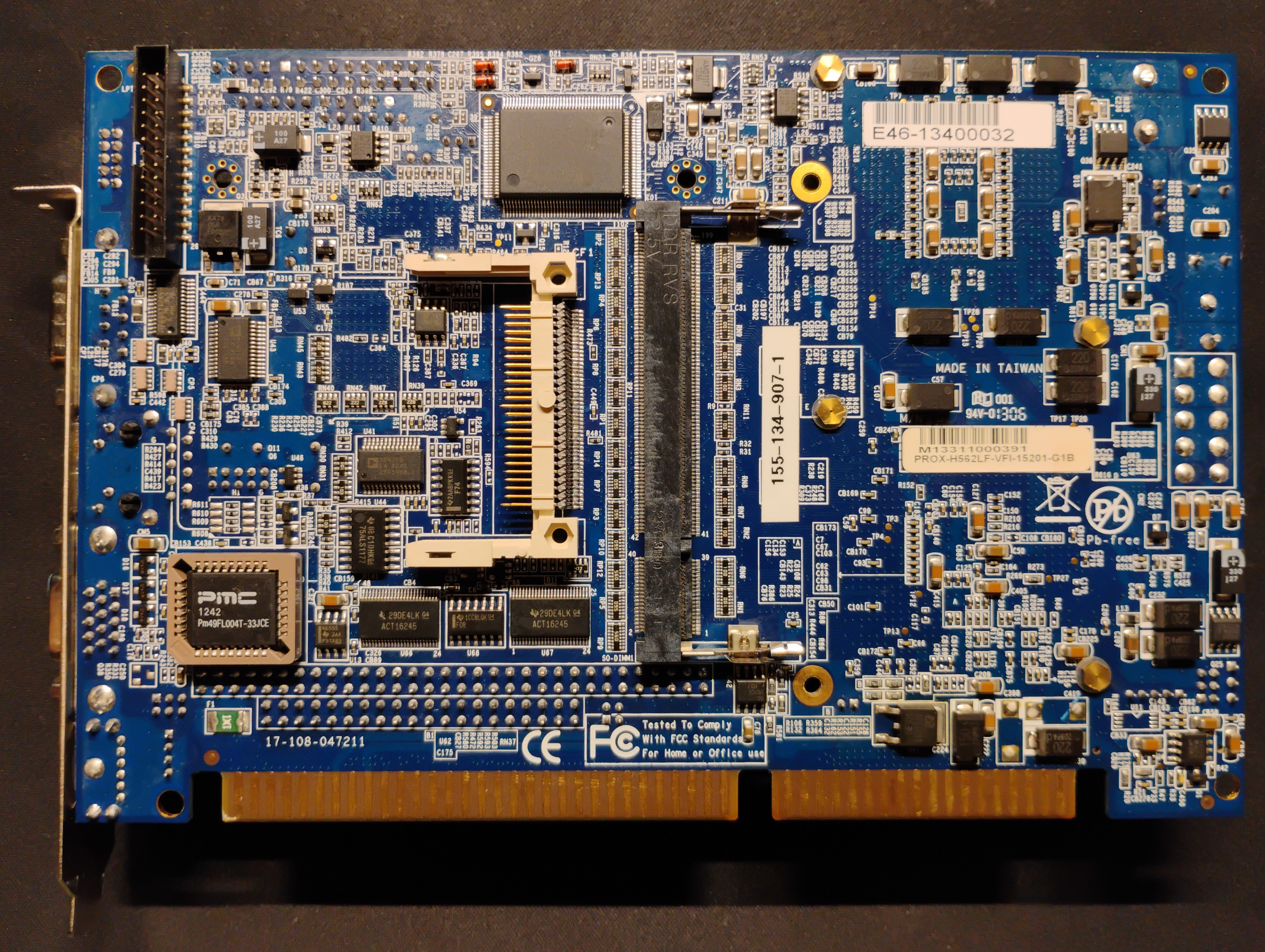

image4 Image 4 of 4 (megatog615)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
