Portwell WADE-8180
Chipset
Socket
FSB speeds 800MHz1066MHz1333MHz
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
GPIO
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
4x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
PCIe x16
Last updated 2025-08-11T11:11:56Z
Board info score is 8.1/10
Chips
-> Chipset part
-> Video
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Core 2 Quad (Kentsfield)
- Intel Core 2 Duo (Wolfdale)
- Intel Core 2 Quad (Yorkfield)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Celeron (Conroe-L)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Celeron Dual-Core (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Core 2 Extreme (Yorkfield)
- Intel Xeon (Yorkfield)
0 BIOS files available
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.42.15
OS support
Windows XP/2k3
Arch
x86
Size
9.3MB
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-07
File
Logs
Chip
Release date
2008-09
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Socket
Release date
File
Logs

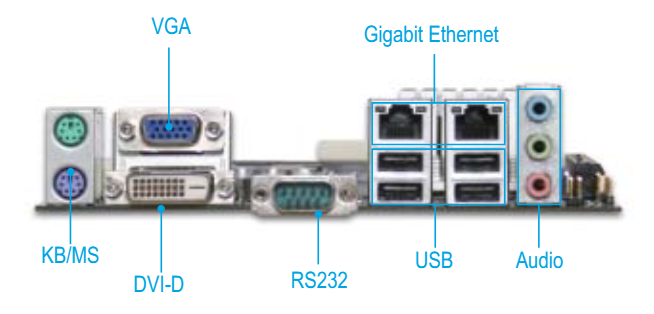

Image 1 of 3 (Portwell)

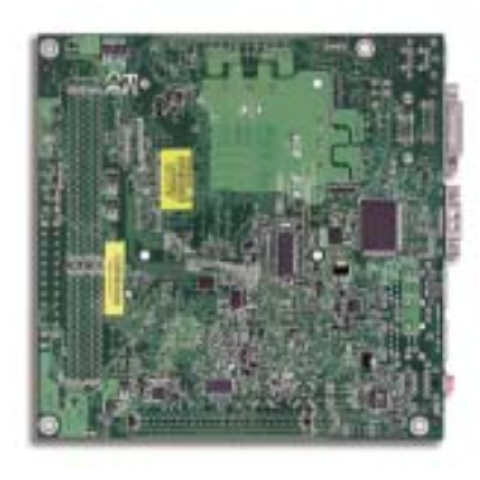

Image 2 of 3 (Portwell)

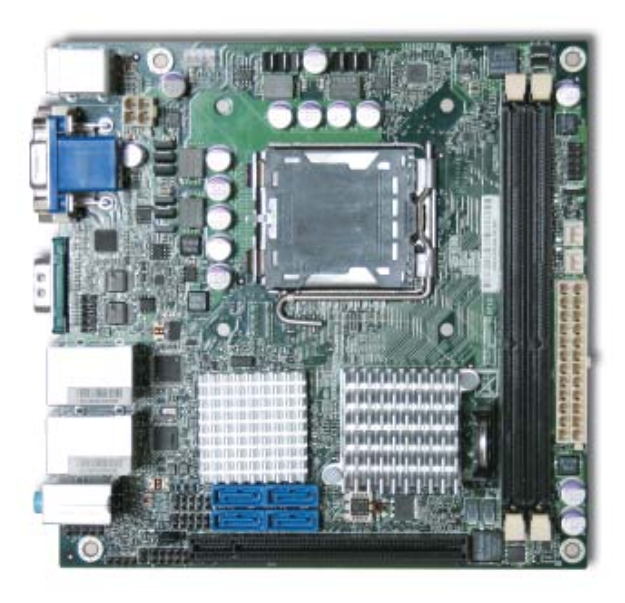

Image 3 of 3 (Portwell)
