Portwell PSMC-C301 SMARC Carrier Board
Logs
chipChipset
Empty
cpuSocket
Empty
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
250mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
Empty
pwrPSU connector
ATX 2.x (24-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
2x
CAN Bus
1x
DisplayPort
1x
GPIO
1x
HDMI
1x
LVDS
2x
RJ-45 LAN
1x
SATA II
1x
SD Card Slot
4x
Serial
3x
USB 2.0
2x
USB 3.0
cardExpansion slots
1x
M.2 (E key)
1x
Mini-PCIe
1x
PCIe x1
1x
SIM Card Socket
1x
SMARC (MXM 3.0 Type A)
Last updated 2025-10-05T20:52:59Z
Board info score is 5.1/10
chip Chips
-> Audio
Realtek ALC886 (High Definition Audio)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

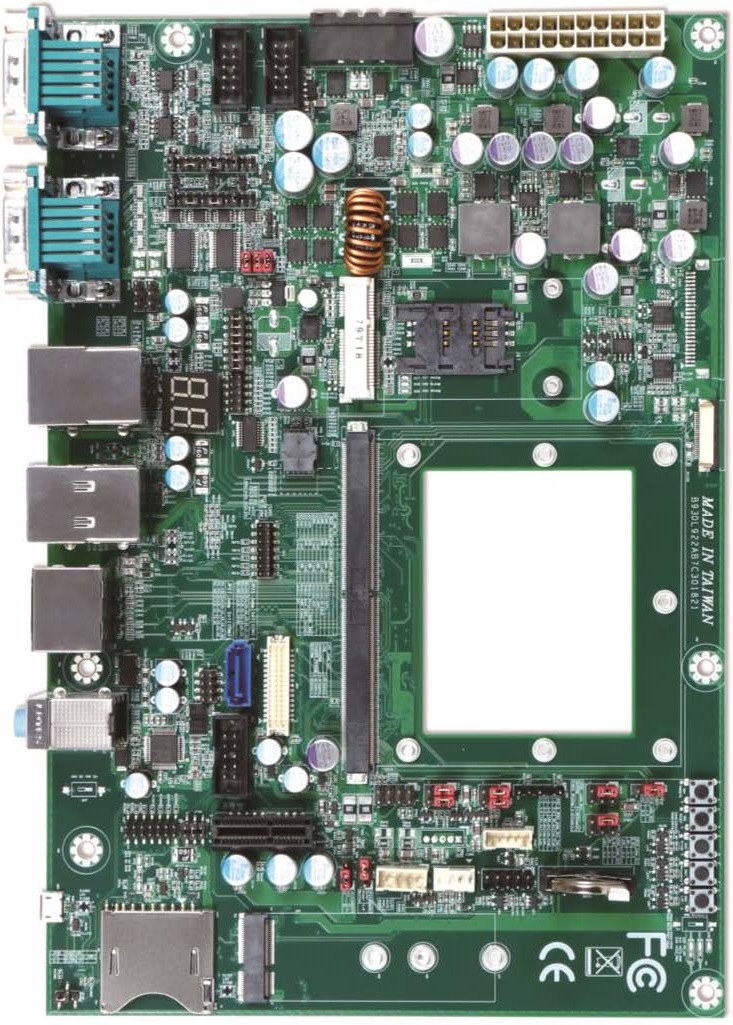

image1 Image 1 of 2 (Portwell)

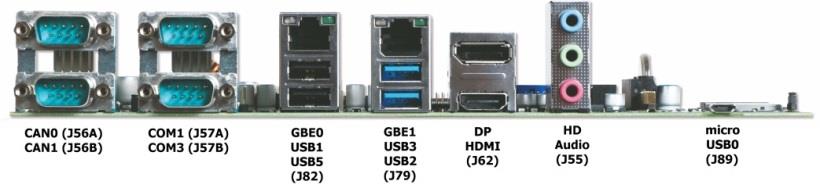

image2 Image 2 of 2 (Portwell)
