PCPartner RD580AKM-AA1D
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR2 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
Last updated 2025-11-06T14:00:48Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> Network
-> RAID ctrl.
CPU family support
4 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/17/2007-RD580-SB600-6A668PRDC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/16/2007-RD580-SB600-6A668PRDC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/18/2006-RD580-SB600-6A668PRDC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/10/2006-RD580-SB600-6A668PRDC-00
Note
Core version
6.00PG
BIOS version
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs

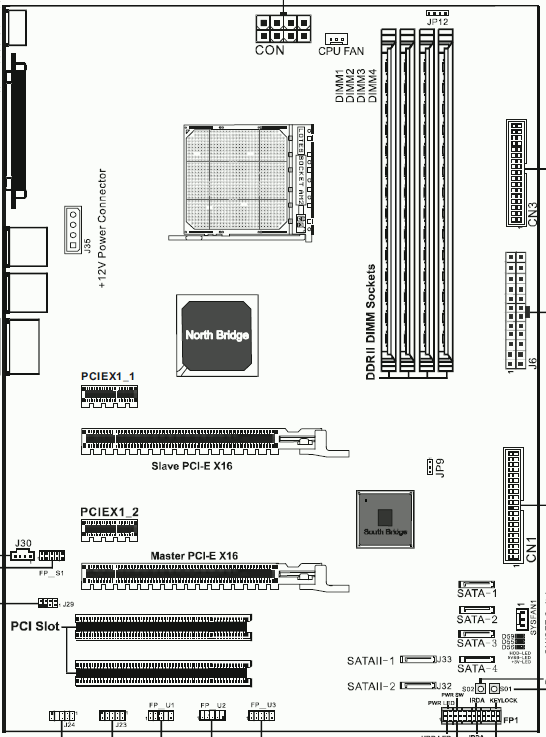

Image 1 of 3 (evasive)
Image 2 of 3
Image 3 of 3
