PCPartner RD480AK9-A75D
Chipset
Socket
FSB speeds 800MHz1000MHz
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
Last updated 2023-07-15T11:53:31Z
Board info score is 9.5/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
CPU family support
4 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/11/2006-RD480-SB450-6A666PRMC-00
Note
beta
Core version
6.00PG
BIOS version
Logs
POST string
03/03/2006-RD480-SB450-6A666PRMC-00
Note
beta
Core version
6.00PG
BIOS version
Logs
POST string
11/16/2005-RD480SB450-6A666PRKC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/27/2005-RD480-SB450-6A666PRMC-00
Note
Core version
6.00PG
BIOS version
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005-09-01
File
Logs

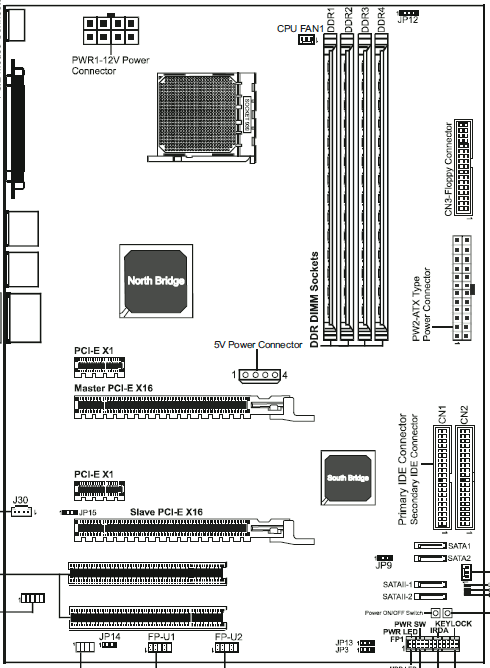

Image 1 of 3 (evasive)

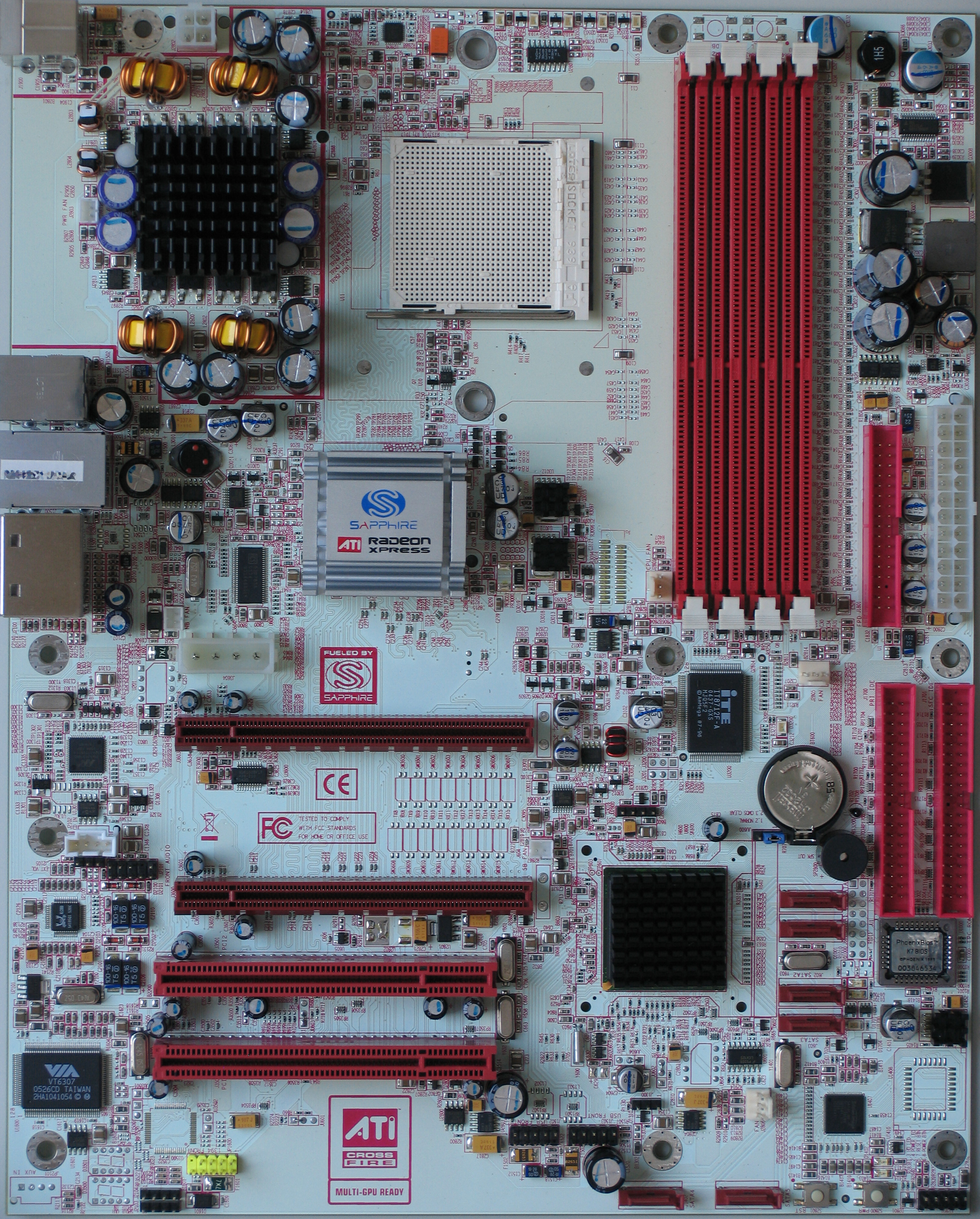

Image 2 of 3
Image 3 of 3
