PCChips/Hsin Tech T18 Tidalwave
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM types
DDR UDIMMDDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA I
1x
Serial
4x
USB 2.0
cardExpansion slots
3x
32-bit PCI
1x
PCChips AGPro
2x
PCIe x1
1x
PCIe x16
wrench Known issues
  • Fake AGP slot

Any AGP cards inserted into this slot operate in PCI 33Mhz Fallback mode.

  1. DO NOT use 1.5V exclusive AGP cards (rear notch away from IO side) in this board.
  2. ONLY use true universal AGP cards with both slots, these support 1.5V and 3.3V operation.
    • This is a PCI bus connected to an AGP slot.
    • The PCI bus operates at 3.3V and may damage 1.5V exclusive cards.
    • AGP cards are backwards compatible with PCI signalling logic.
    • Performance is greatly reduced vs a true AGP bus.
Last updated 2026-01-09T16:15:50Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-001131-00101111-030106-GrantsD-T18
Note
Core version
080011
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2007-11
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2005
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

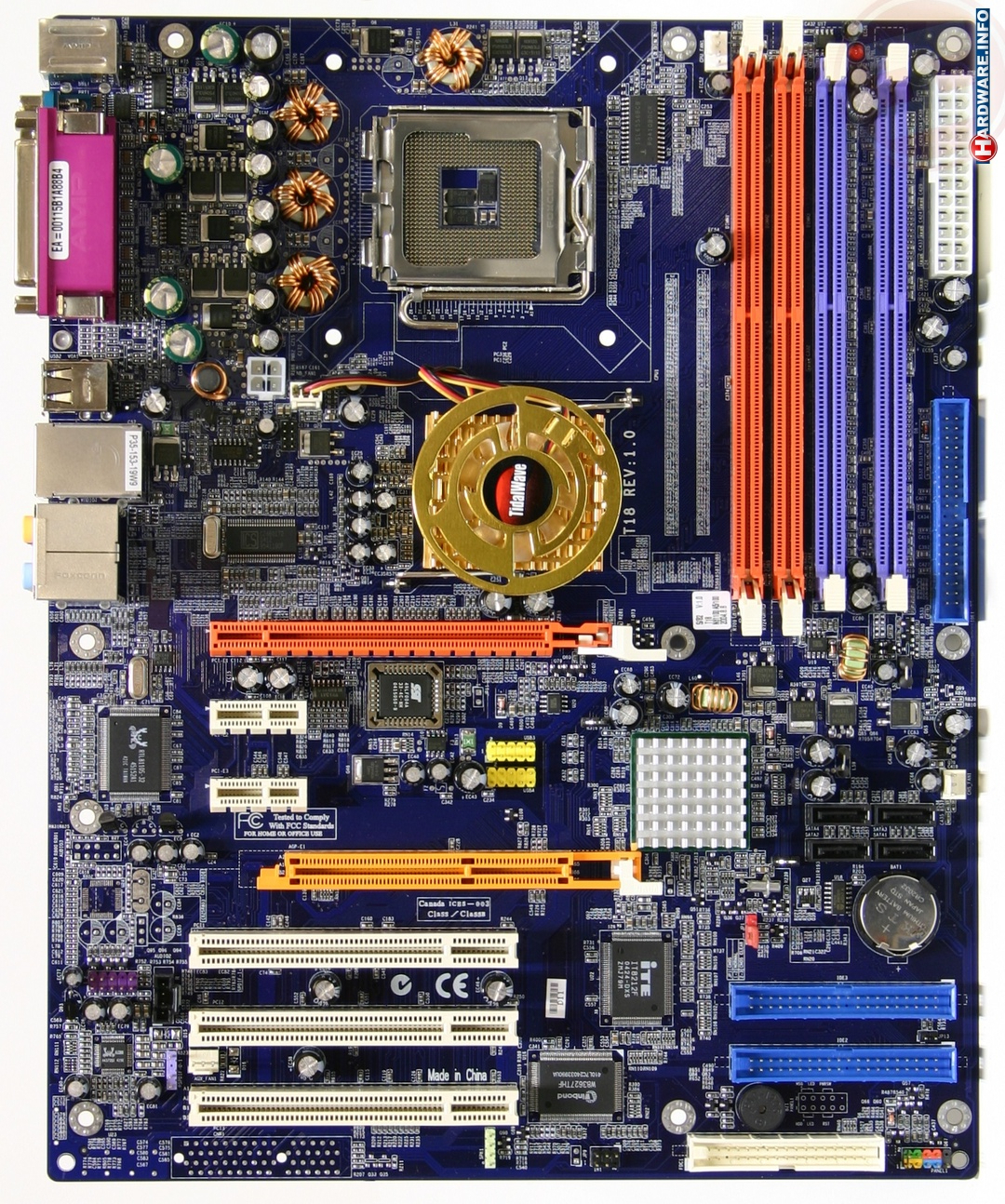

image1 Image 1 of 1 (PCChips/Hsin Tech)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
