PCChips/Hsin Tech M932LR
Logs
chipChipset
cpuSocket
Socket 423 (PGA423)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM types
DDR UDIMMSDR UDIMM
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP
Last updated 2025-04-16T05:41:59Z
Board info score is 9/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0722-001131-00101111-040201-SiS64X-M932R
Note
932LR
Core version
070010
BIOS version
Logs
POST string
62-0722-001131-00101111-040201-SiS64X-M932LR
Note
932
Core version
070010
BIOS version
Logs
POST string
62-0610-001131-00101111-040201-SiS645-M932R
Note
932LR
Core version
070010
BIOS version
Logs
POST string
62-0610-001131-00101111-040201-SiS645-M932LR
Note
932
Core version
070010
BIOS version
Logs
POST string
62-0516-001131-00101111-040201-SiS645-M932R
Note
932LR
Core version
070010
BIOS version
Logs
POST string
62-0516-001131-00101111-040201-SiS645-M932LR
Note
932
Core version
070010
BIOS version
Logs
POST string
62-0610-001131-00101111-040201-SiS645-P4S5A2
Note
Core version
070010
BIOS version
Logs
POST string
62-0516-001131-00101111-040201-SiS645-P4S5A2
Note
Core version
070010
BIOS version
Logs
POST string
62-0218-001131-00101111-040201-SiS645-P4S5A2
Note
Core version
070010
BIOS version
Logs
POST string
62-0114-001131-00101111-040201-SiS645-P4S5A2
Note
Core version
070010
BIOS version
Logs
POST string
62-1114-001437-00101111-040201-SiS645-P4S5A2
Note
Core version
070010
BIOS version
Logs
POST string
62-0927-001437-00101111-040201-SiS645-M932LR
Note
Core version
070010
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename

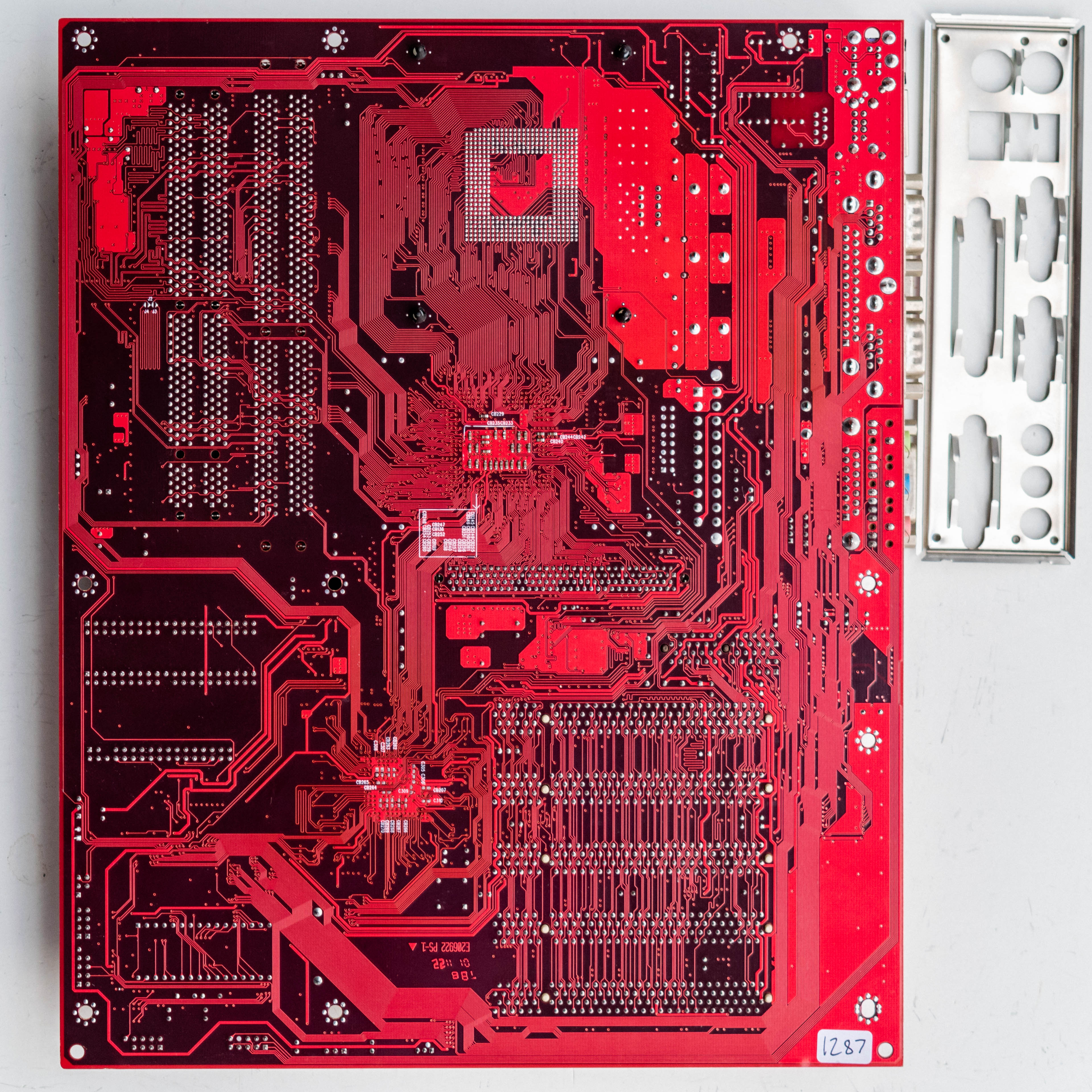

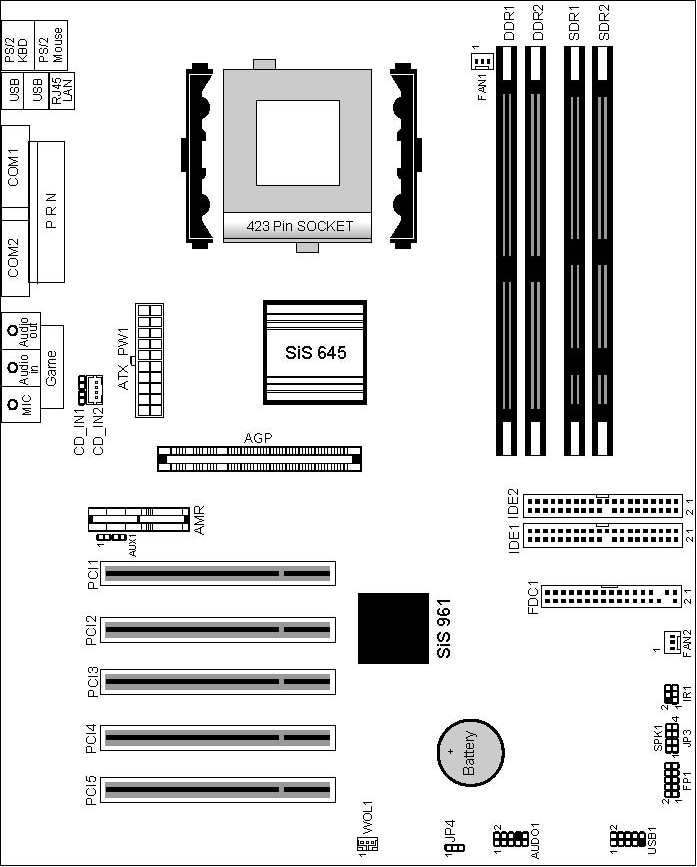

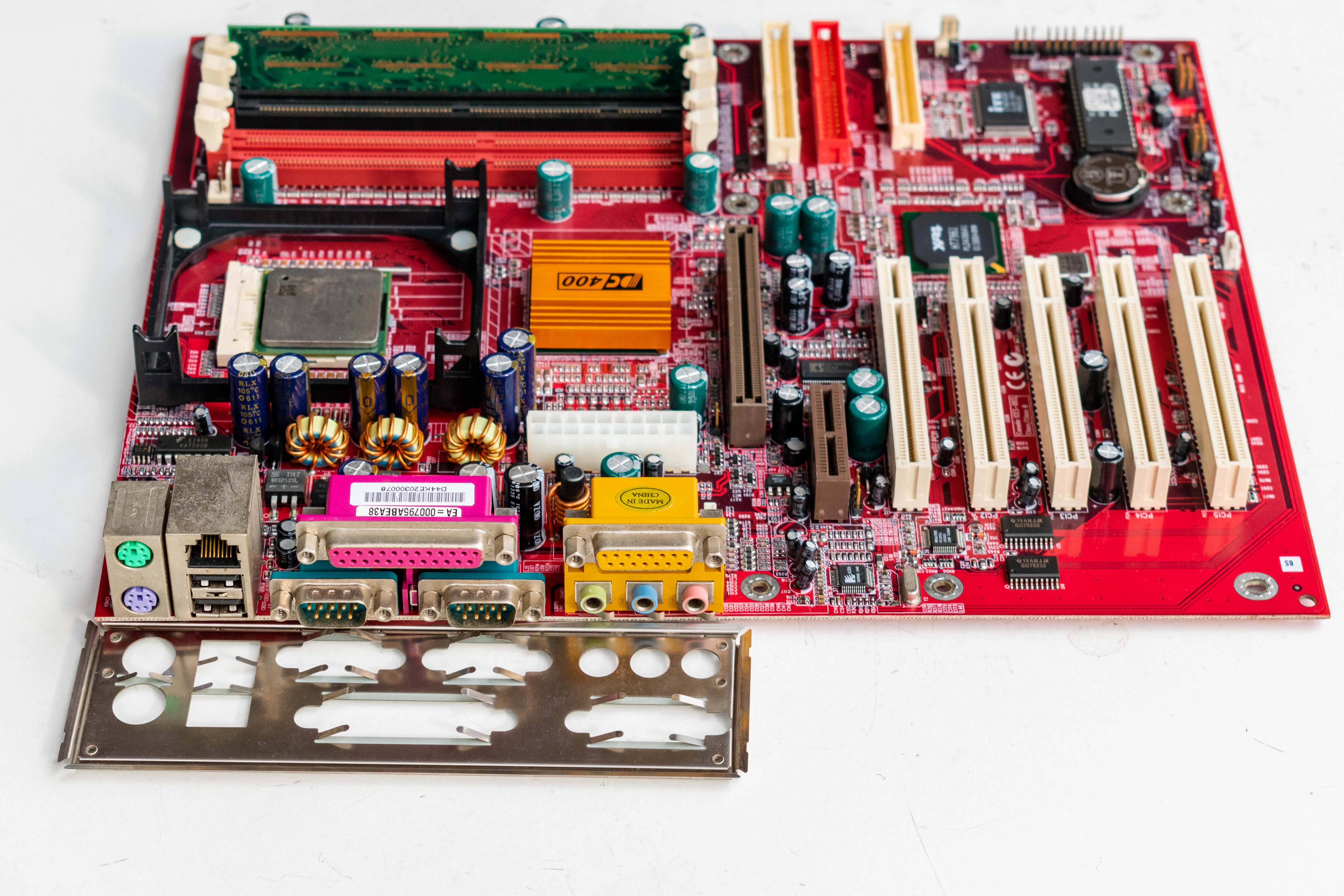

image1 Image 1 of 4 (PCChips/Hsin Tech)
image2 Image 2 of 4 (Motherboard Continuum)
image3 Image 3 of 4 (Motherboard Continuum)
image4 Image 4 of 4 (Motherboard Continuum)
