PCChips/Hsin Tech M918 (486)
Chipset
Socket
FSB speeds 20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions254mm x 218mm
Cache
128KB256KB512KB1MB
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Known issues
- Fake cache
The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered DIP-chips and no jumpers to set the chache size. Cache functionality can usually be restored by installing proper chips, jumpers and a BIOS update/mod.
Notes
The CPU socket is not a full Socket 3, it lacks the outside rows of pins used by the Pentium OverDrive.
Is cloned as Amptron DX-9300A (VER 1.1)
Last updated 2025-01-05T22:17:40Z
Board info score is 9.1/10
Chips
-> Chipset part
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-C100-001437-00101111-101094-486PCIMB-U
Note
Core version
101094
BIOS version
Logs
POST string
41-A300-001437-00101111-101094-21011/33
Note
Core version
101094
BIOS version
Logs
POST string
41-C100-001437-00101111-101094-486PCIMB-U
Note
Core version
101094
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.06a
OS support
MS-DOS
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows NT 3.5x
Arch
x86
Size
104.9KB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

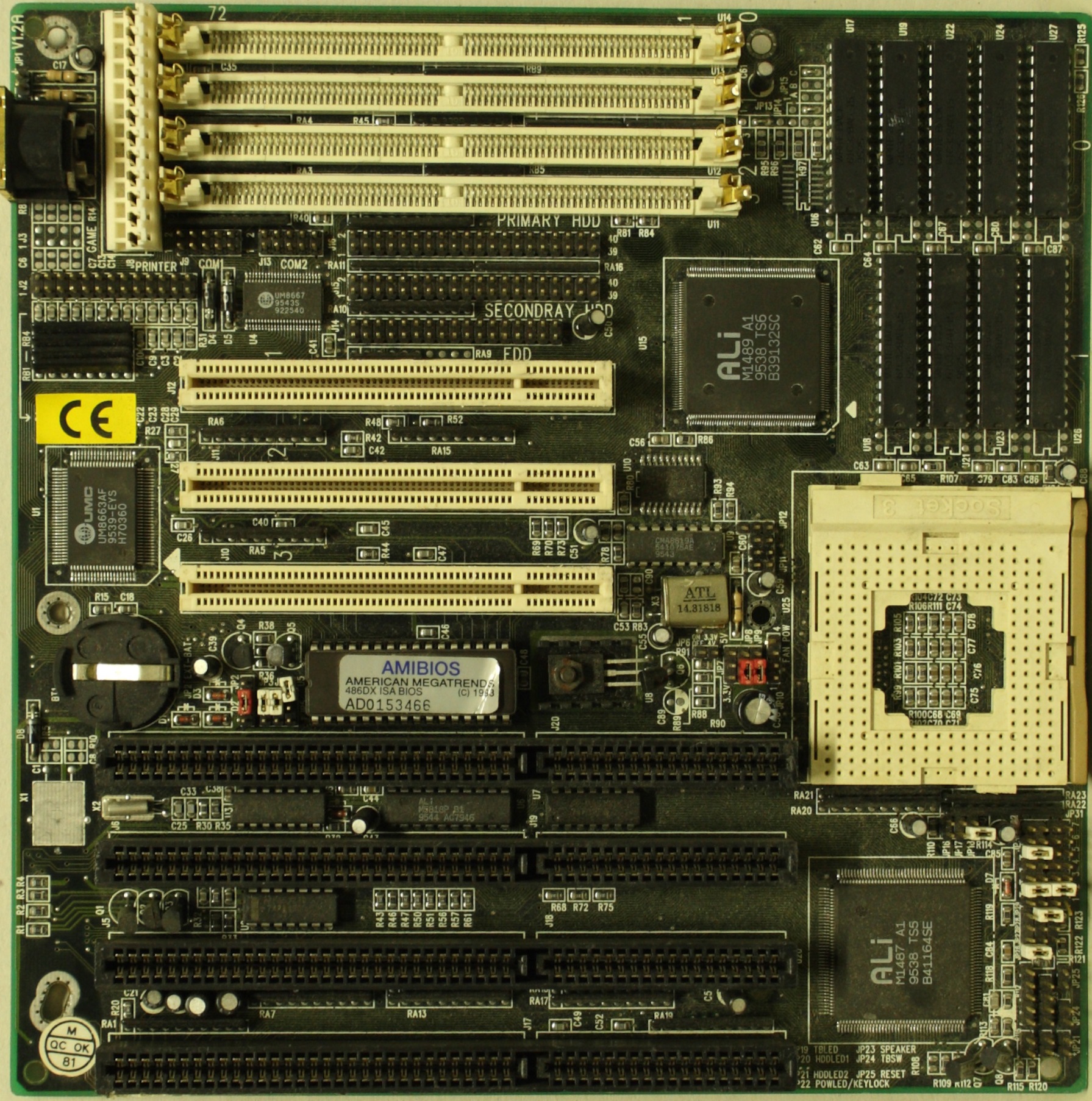

Image 1 of 6 (evasive)

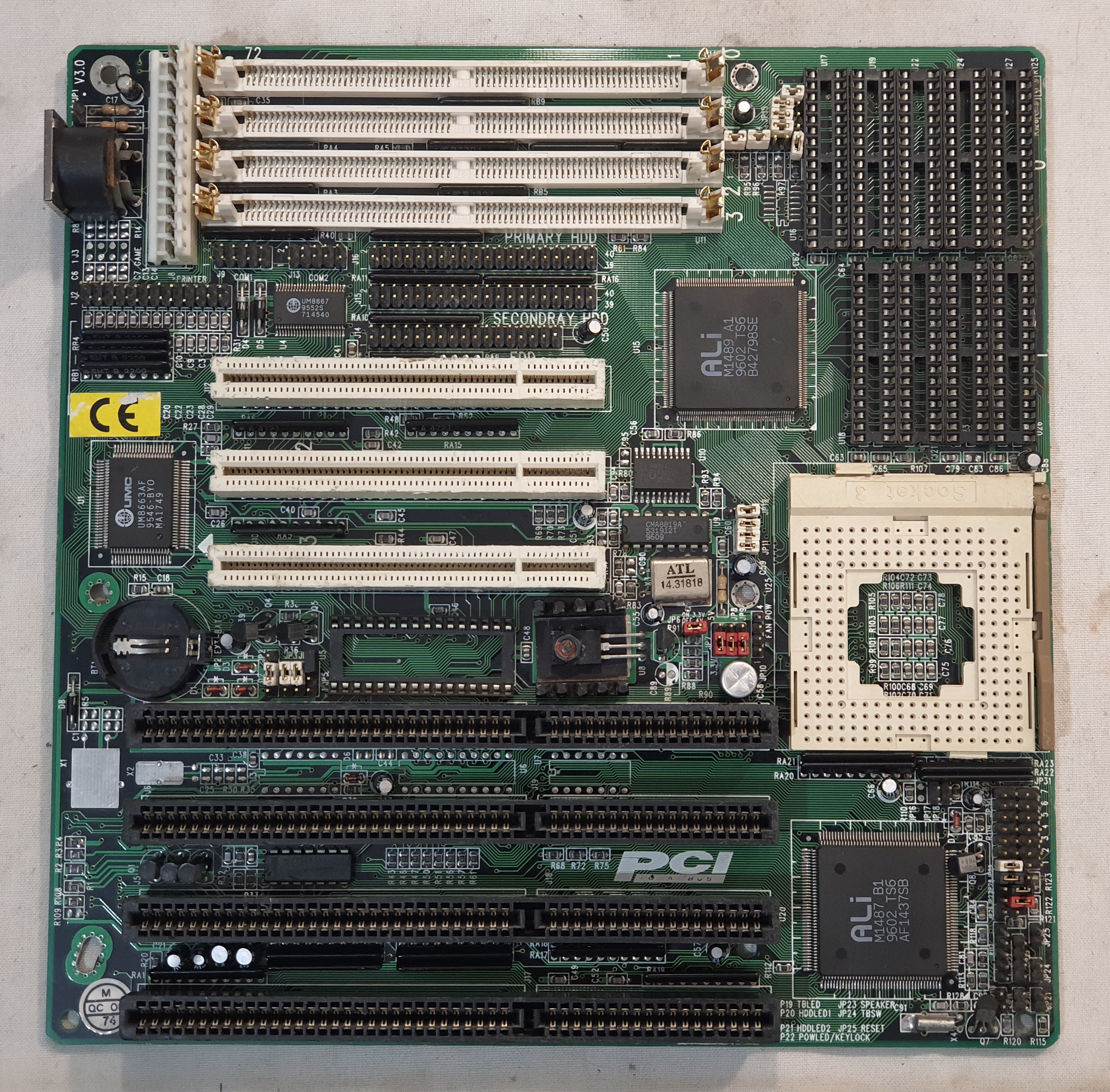

Image 2 of 6 (computerguy096)

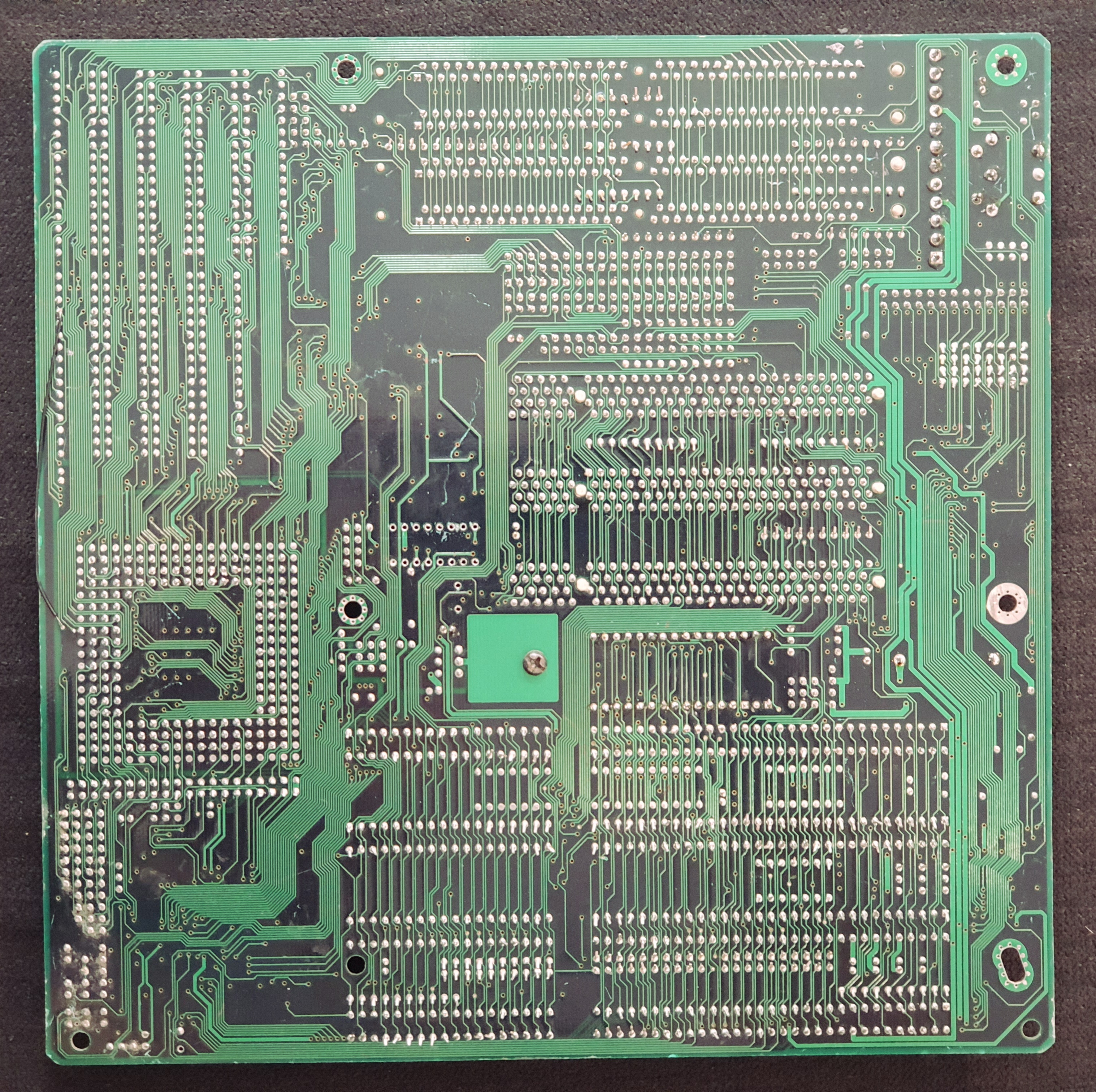

Image 3 of 6 (bakemono)

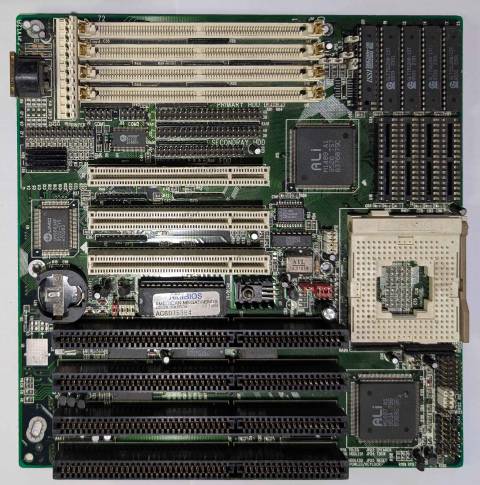

Image 4 of 6 (perhenden)

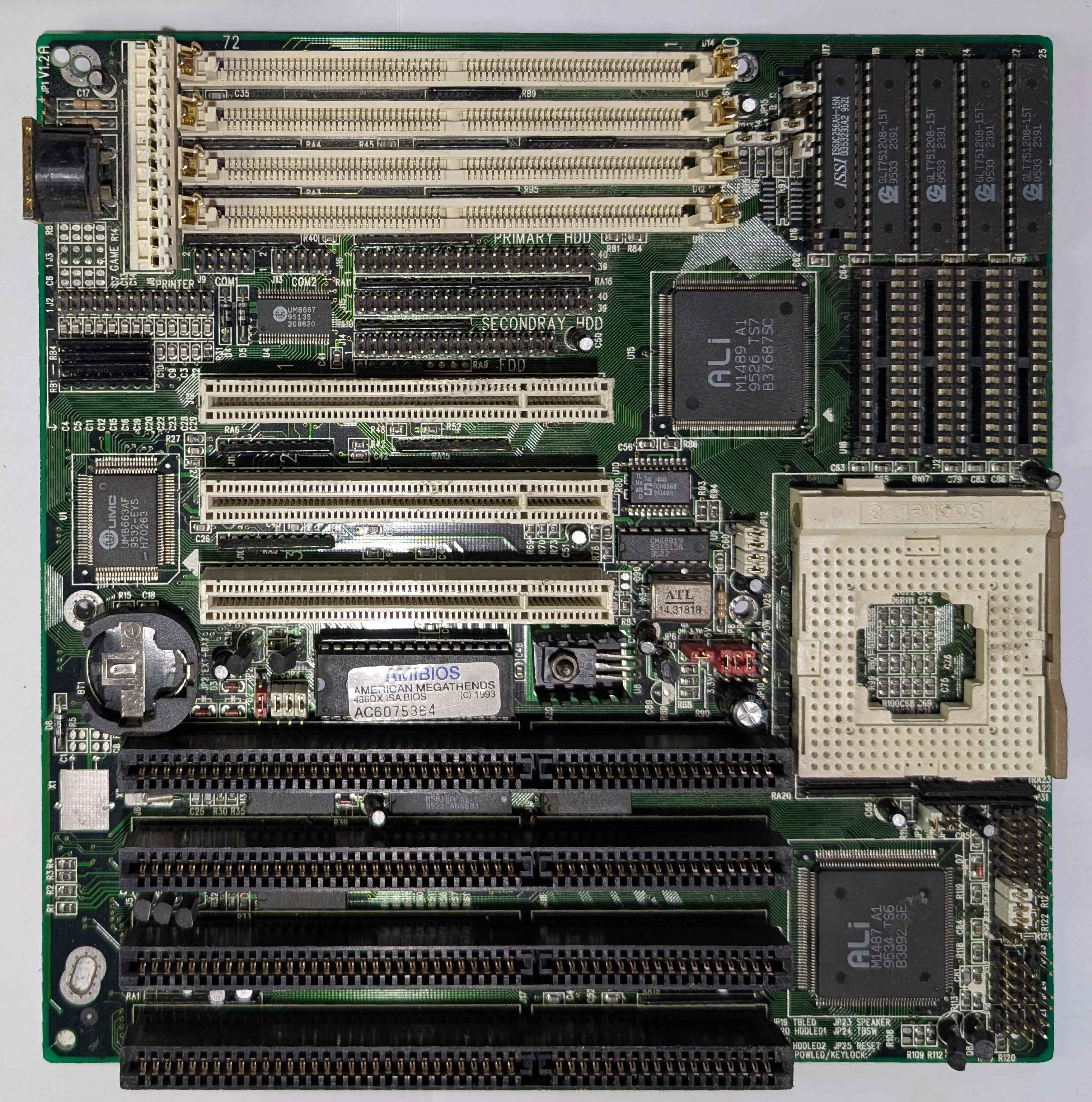

Image 5 of 6 (computerguy096)

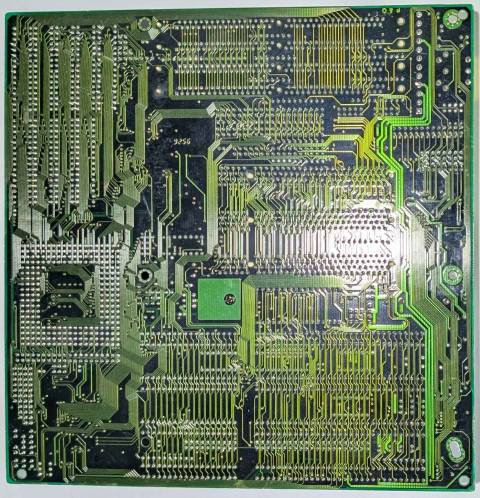

Image 6 of 6 (perhenden)
