PCChips/Hsin Tech M766LMRT V1.x
Chipset
Sockets
FSB speeds 66MHz100MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 257mm
Max VRAM size32MB
Cache
None/Integrated in the CPU
Max RAM size
512MB
RAM type SDR UDIMM
PSU connector
Also known as
- PCChips/Hsin Tech M766LRT V1.x
I/O ports1x
3.5mm Audio Combo
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
1x
SB_Link
2x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
Expansion slots3x
32-bit PCI
Last updated 2025-05-28T14:41:48Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Network
-> Power Regulation
-> Super I/O
-> Video
9 BIOS files available
AMI - 9 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1127-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-1126-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-1026-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-1022-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-0729-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-0702-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-0629-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-0426-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
POST string
63-0418-001437-00101111-071595-WHITNEY-M766_V1.0-8712
Note
Core version
071595
BIOS version
Logs
19 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000
Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
4.1
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Intel 82801AA (ICH) and 82801AB (ICH0) I/O Controller Hub Specification Update 290677-004 (May 2001)
Logs
Chip
Release date
File
Intel 82801AA (ICH) and 82801AB (ICH0) I/O Controller Hub Specification Update 290677-014 (Sep 2003)
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
1997-05
File
Logs

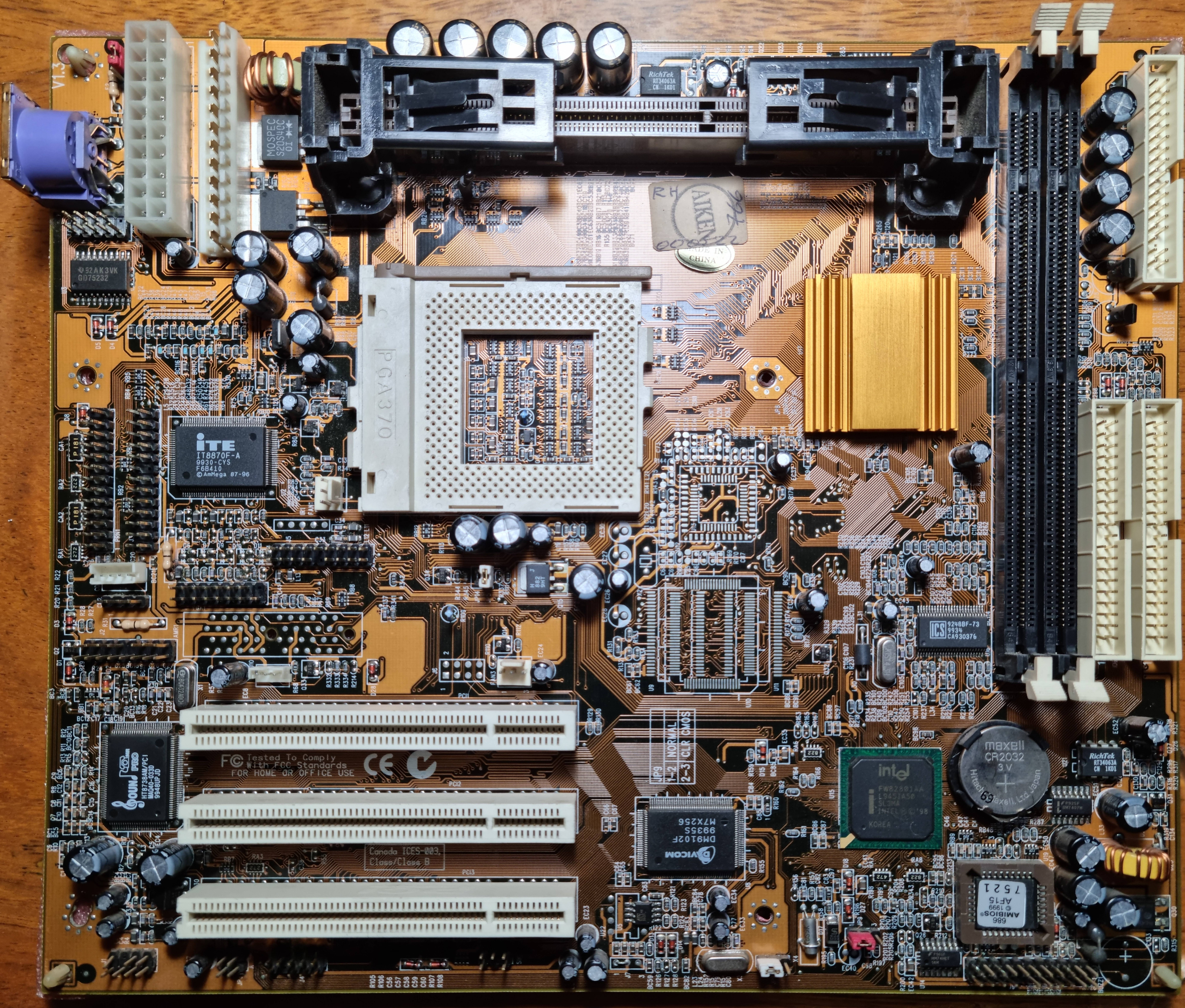

Image 1 of 2 (evasive)
Image 2 of 2 (Lía)
