PCChips/Hsin Tech M761 V1.x
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz100MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 190mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
1x
3.3V AGP
3x
32-bit PCI
Last updated 2025-02-20T14:42:13Z
Board info score is 9.6/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0406-001437-00101111-071595-440BX-M761_V1.2-8671
Note
2Mbit
Core version
071595
BIOS version
Logs
POST string
61-1208-001437-00101111-071595-440BX-M3300V1.0-8671
Note
1Mbit
Core version
071595
BIOS version
Logs
POST string
61-0730-001437-00101111-071595-440BX-M761_V1.2-8671
Note
1Mbit
Core version
071595
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.0.00152
OS support
Windows 9x Windows NT 4.0
Arch
Size
35.9MB
Filename
Name
Version
4.10.00.0152
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
Size
27.2MB
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.7MB
Filename
Version
OS support
Empty
Arch
x86
Size
863.1KB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

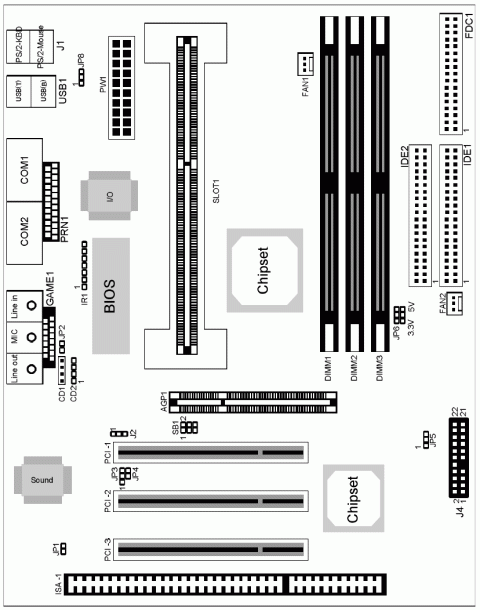

image1 Image 1 of 3 (PCChips/Hsin Tech)

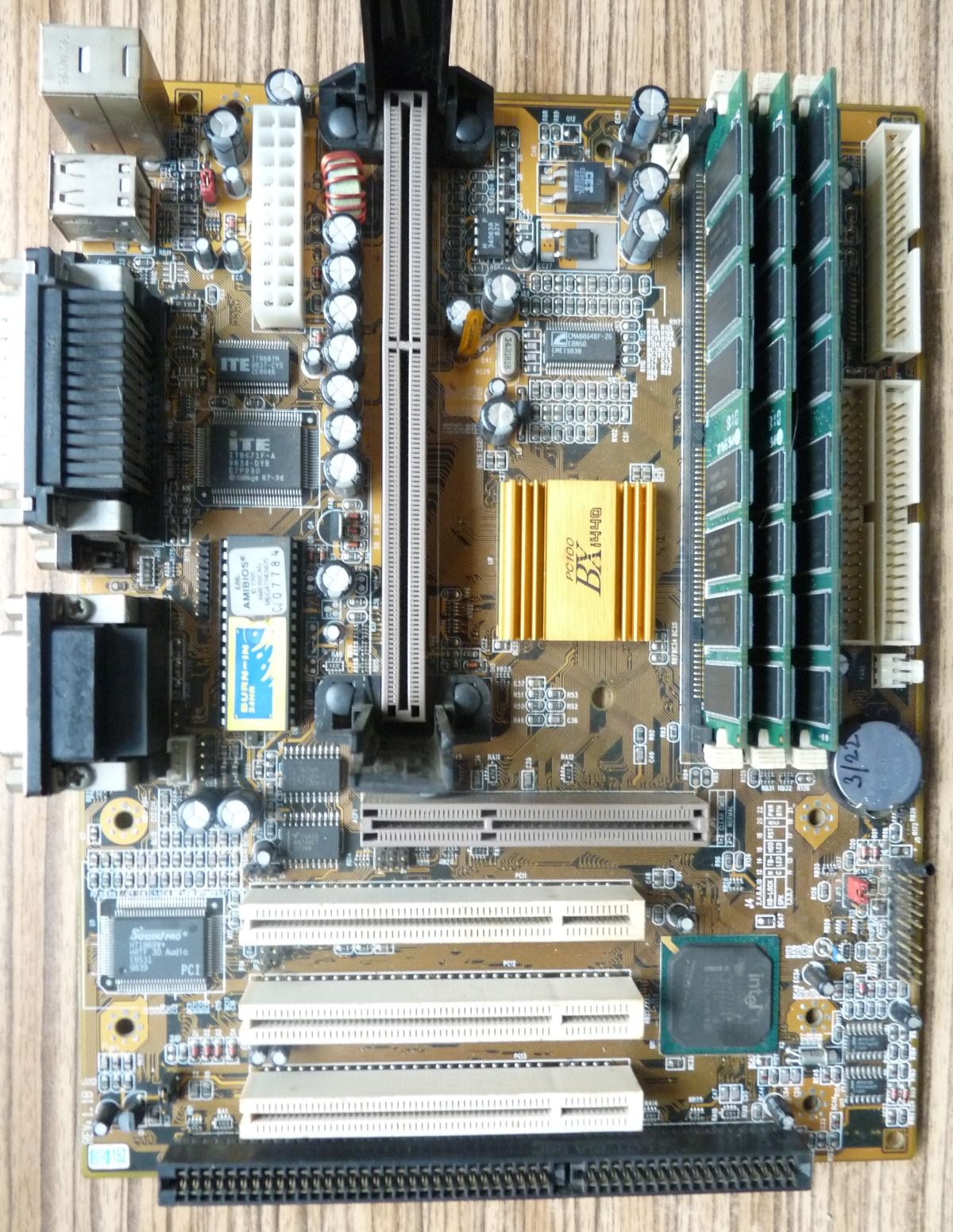

image2 Image 2 of 3 (nynkab)

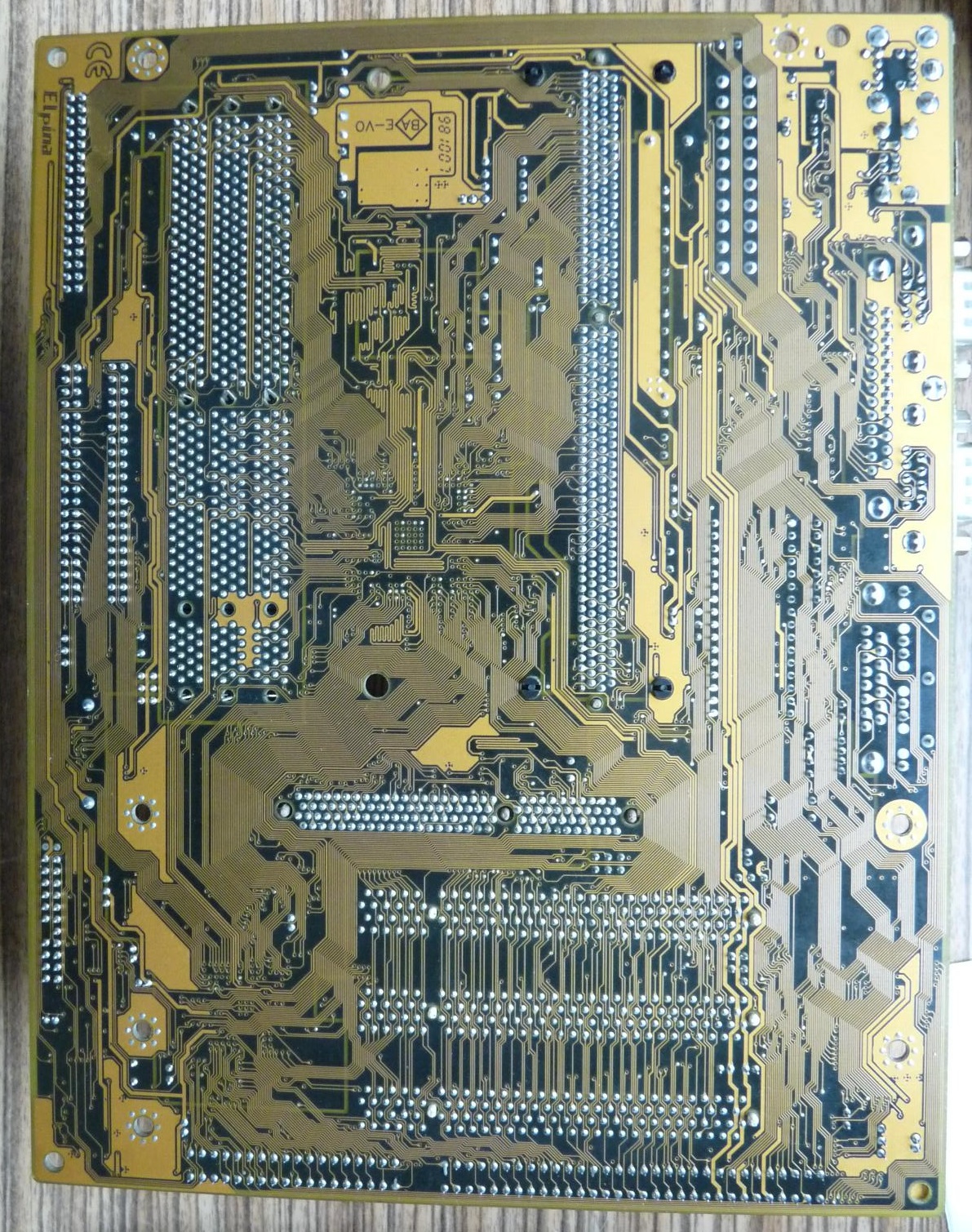

image3 Image 3 of 3 (nynkab)
