PCChips/Hsin Tech M754LR+
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 210mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
3x
32-bit PCI
notes Notes

Some quirks:

  • If BIOS is to be believed, theoretically supports up to 20x CPU clock multiplier.
  • Both APM and ACPI are switchable.
  • IDE manual autodetection explicitly recognizes DVD drives (but converts them to CDROM when leaving the screen).
  • Ultra DMA must be enabled separately in Features Setup.
  • VRAM adjustable between 0 and 32 MB. If dedicated video memory is fitted (between ATX and NB), the option must be set to 0 for it to work.
Last updated 2025-11-12T15:22:47Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0306-001437-00101111-071595-A631A543-M754LMR
Note
Core version
071595
BIOS version
Logs
drv 47 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.05.1110 (VxD) / 1.53 (NT4)
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
2.8MB
Filename
Name
Version
4.05.1109 (VxD) / 5.12.01.5170 (WDM) / 1.5 (NT4)
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
17.1MB
Filename
Name
Version
5.12.01.5124
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
3.8MB
Filename
Name
Version
0.14.7
OS support
Linux
Arch
x86
Size
27.9KB
Filename
Name
Version
4.05.1109
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
16.2MB
Filename
Name
Version
5.12.01.5126
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
2.20
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
10.1MB
Filename
Name
Version
7.66.01.0
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
3.2MB
Filename
Name
Version
40.72
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Name
Version
1.19
OS support
MS-DOS NetWare Server 4 Netware Client32 Windows 2000 Windows 3.1x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
16.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.5MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
4.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
5.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.1MB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
9.6MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
6.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

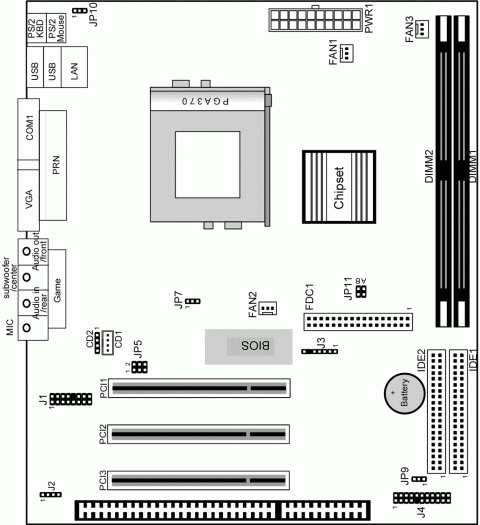

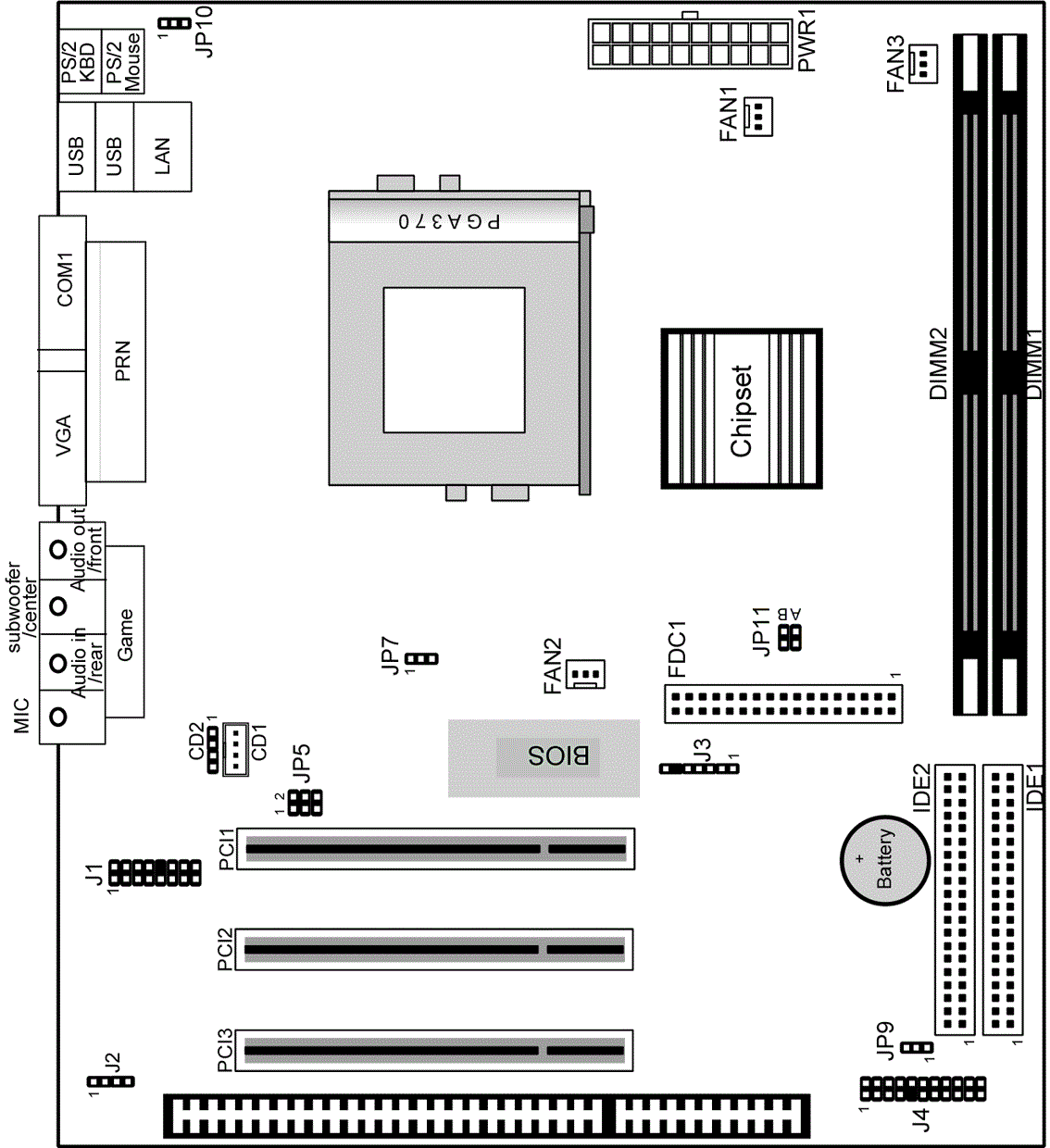

image1 Image 1 of 3 (PCChips/Hsin Tech)

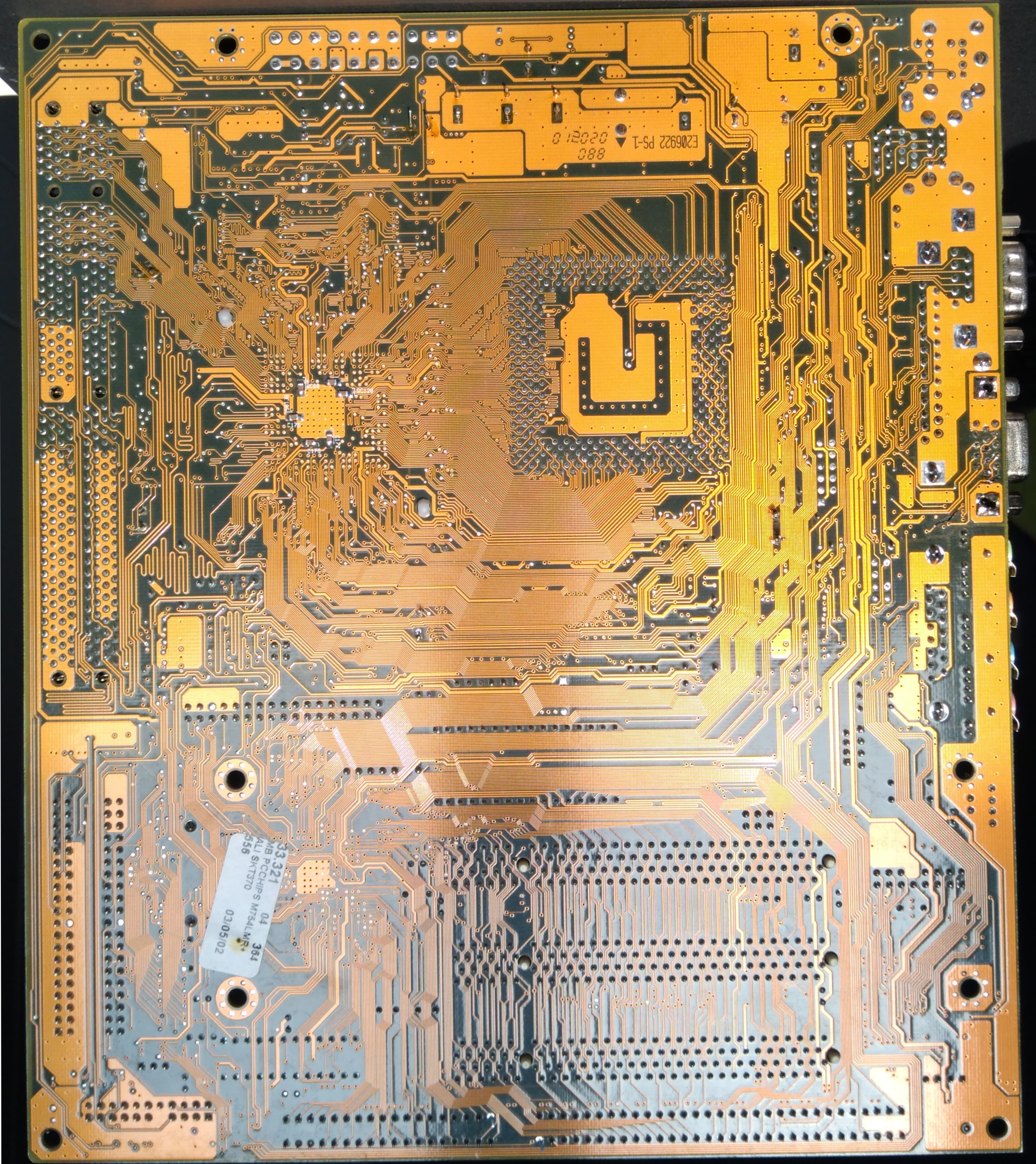

image2 Image 2 of 3 (Nexxen)

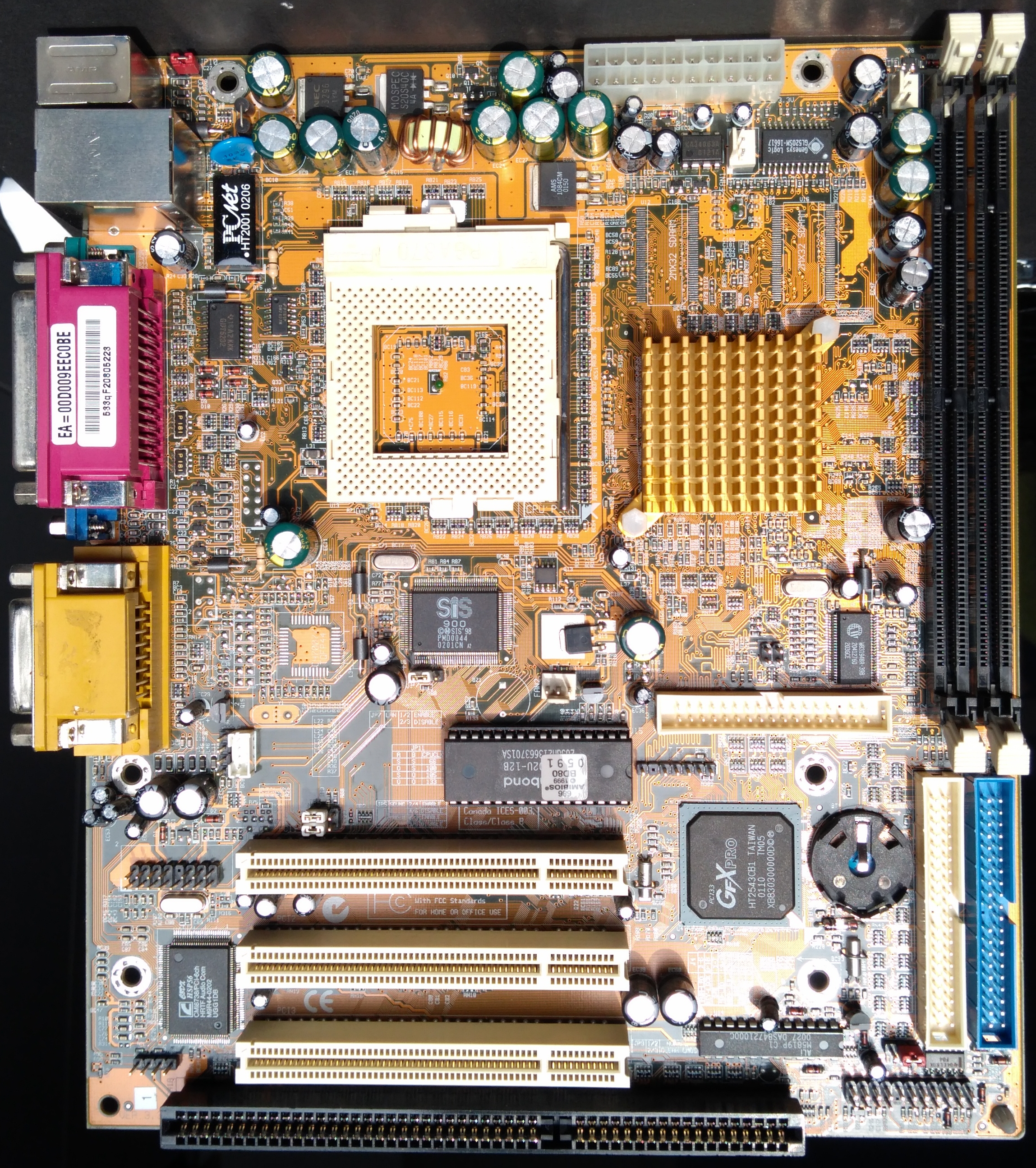

image3 Image 3 of 3 (Nexxen)
