PCChips/Hsin Tech M750
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 220mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
notes Notes

A second CPU can only be used if the APIC module is installed into the 50-pin slot above the ROM chip. This module contains the S82093AA APIC chip and was sold optionally. Its PCB was reverse engineered and therefore a custom one can be built, refer here for details.

Last updated 2025-12-08T13:46:49Z
Board info score is 9/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-1217-001437-00101111-071595-440BX-M750IV1.0-8671
Note
Core version
071595
BIOS version
Logs
POST string
62-0321-001437-00101111-071595-440BX-M750IV1.0-8671
Note
Core version
071595
BIOS version
Logs
POST string
62-0210-001437-00101111-071595-440BX-M750IV1.0-8671
Note
Core version
071595
BIOS version
Logs
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
PV2.1
OS support
Windows 9x
Arch
Size
1.2MB
Filename
Name
Version
1.1
OS support
OS/2 Warp 3.x
Arch
x86
Size
958.8KB
Filename
Name
Version
1.0
OS support
Windows 2000
Arch
x86
Size
181.6KB
Filename
Name
Version
1.4.7
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Name
Version
SDR - PV3.0W
OS support
Windows NT 4.0
Arch
x86
Size
321.9KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.2MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-08
File
Logs
Chip
Release date
2000
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-04
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

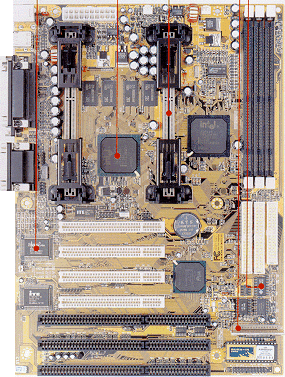

image1 Image 1 of 2 (PCChips/Hsin Tech)

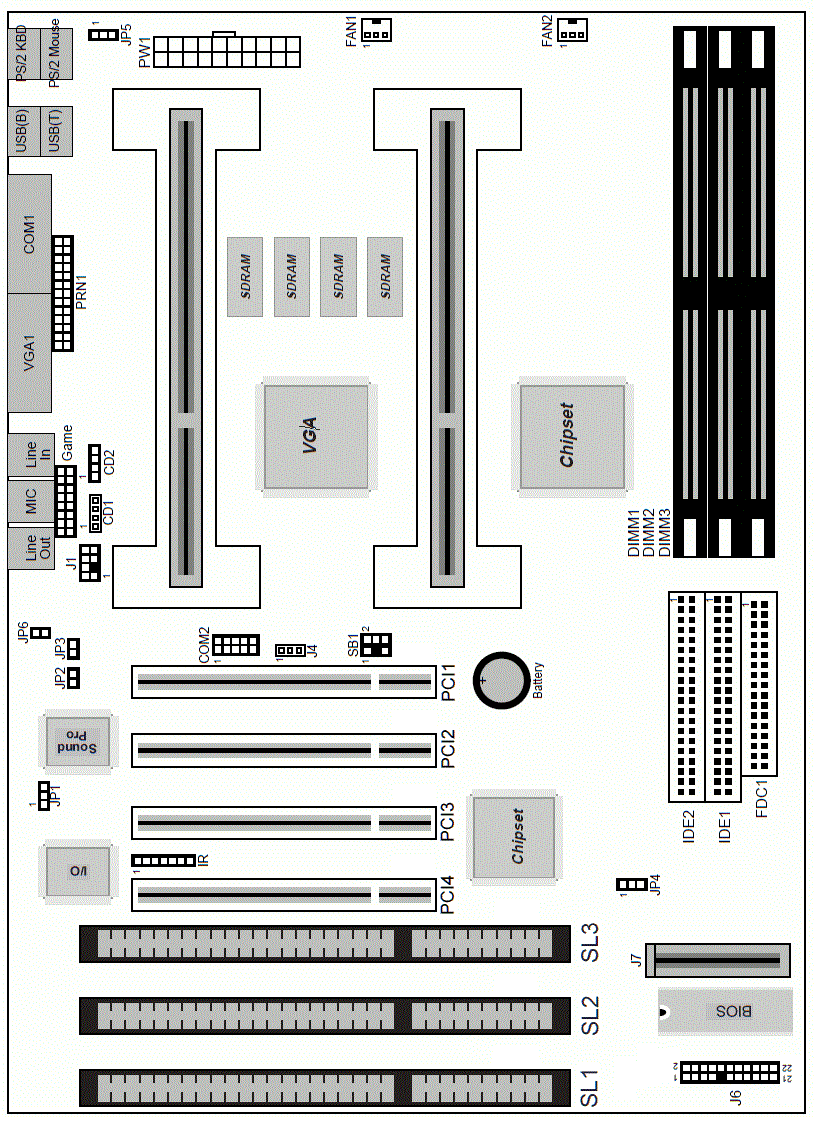

image2 Image 2 of 2
