PCChips/Hsin Tech M720
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speed
66MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
notes Notes

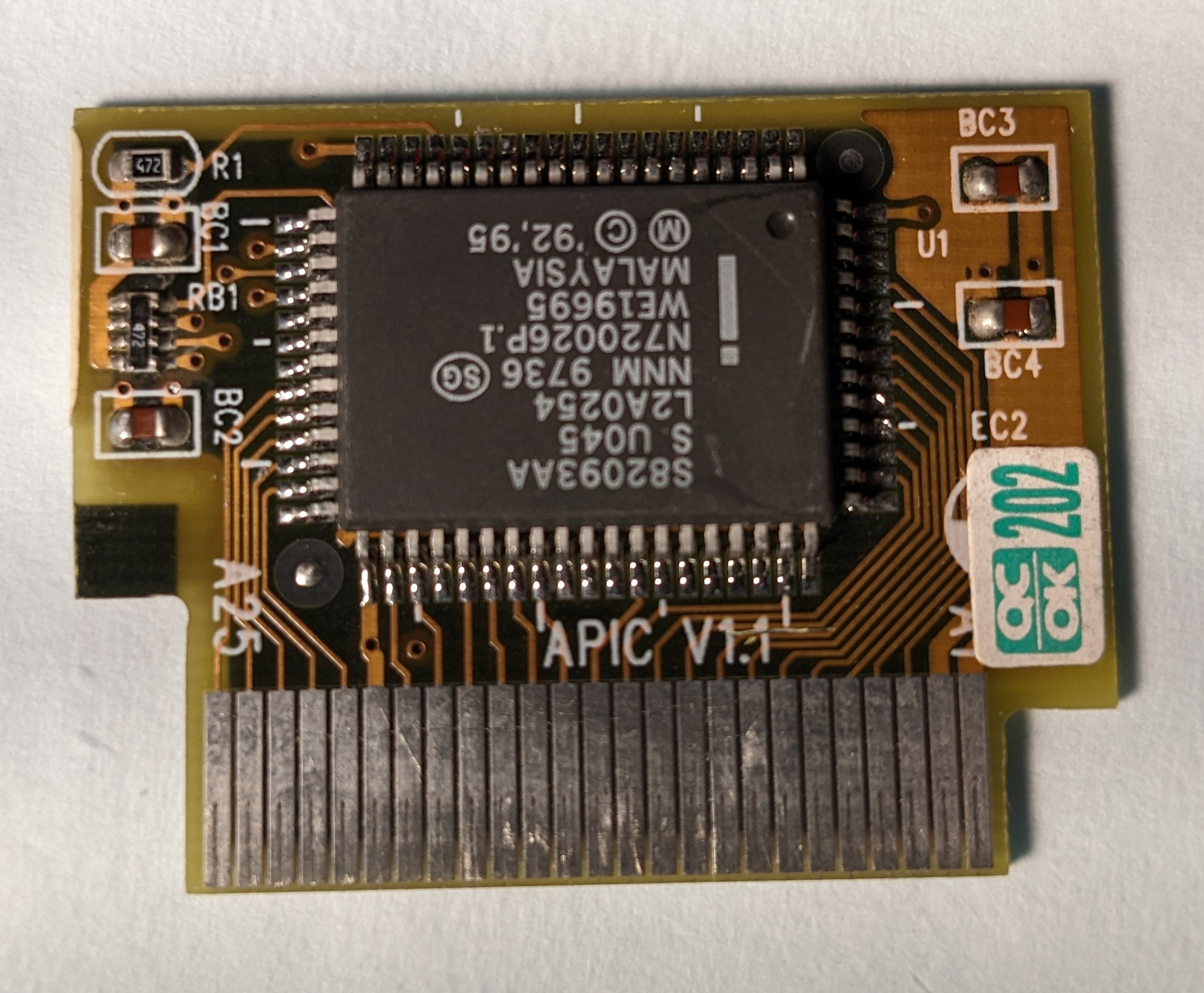

A second CPU can only be used if the APIC module is installed into the 50-pin slot above the ROM chip. This module contains the S82093AA APIC chip and was sold optionally. Its PCB was reverse engineered and therefore a custom one can be built, refer here for details.

Amptron PII-2200 V3.1 is known to be incompatible with BIOS images for the M720, refer to this entry for details.

Last updated 2025-12-08T13:46:47Z
Board info score is 9.7/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
61-0814-001437-00101111-071595-M720-1440L000
Note
Core version
071595
BIOS version
Logs
POST string
61-0701-001437-00101111-071595-M720-1440L000
Note
Core version
071595
BIOS version
Logs
POST string
61-0401-001437-00101111-071595-M720-1440L000
Note
Core version
071595
BIOS version
Logs
POST string
61-0306-001437-00101111-071595-M720-1440L000
Note
Core version
071595
BIOS version
Logs
POST string
61-0303-001437-00101111-071595-M720-1440L000
Note
Core version
071595
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

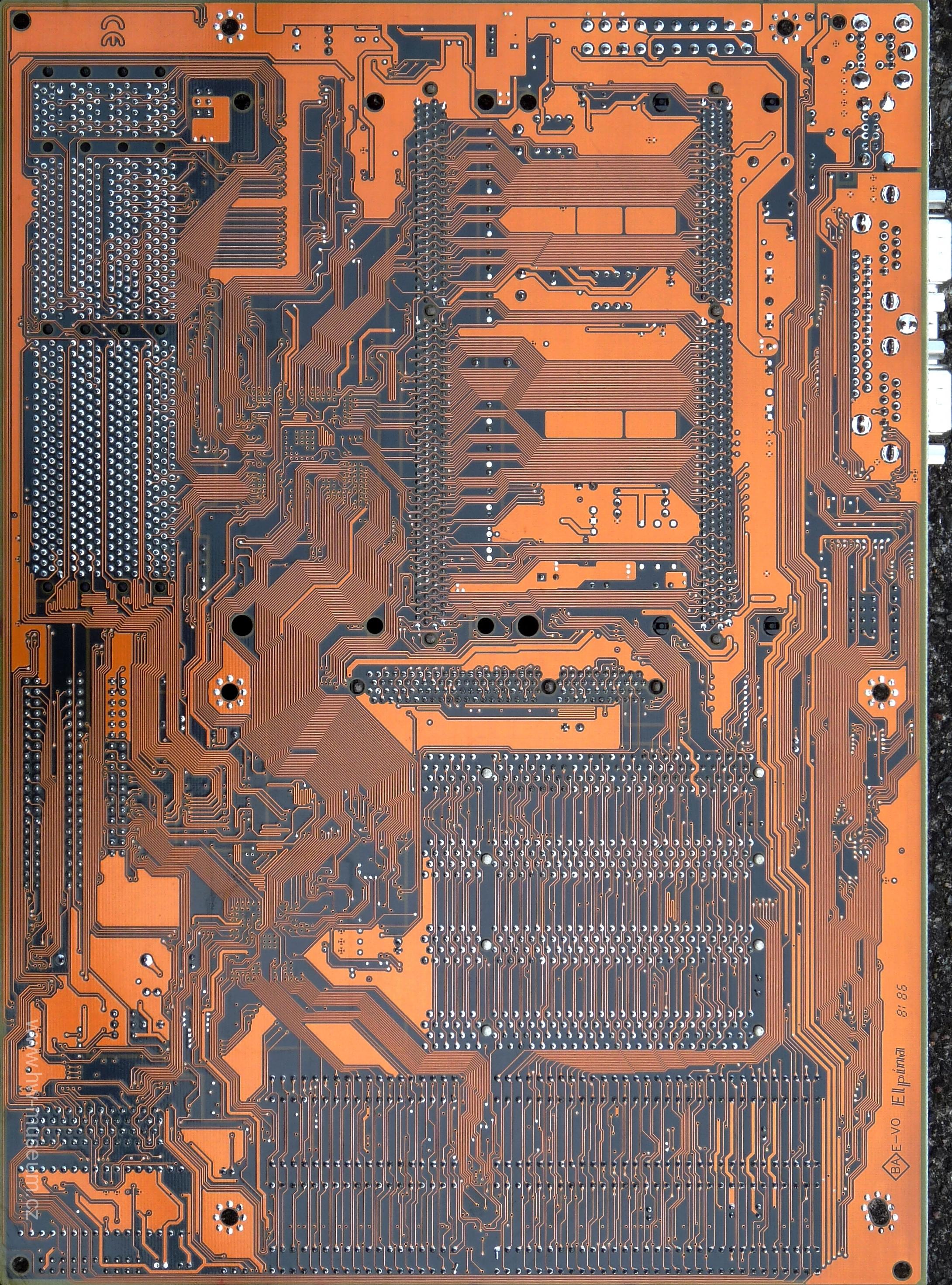

image1 Image 1 of 4 (Microhouse)

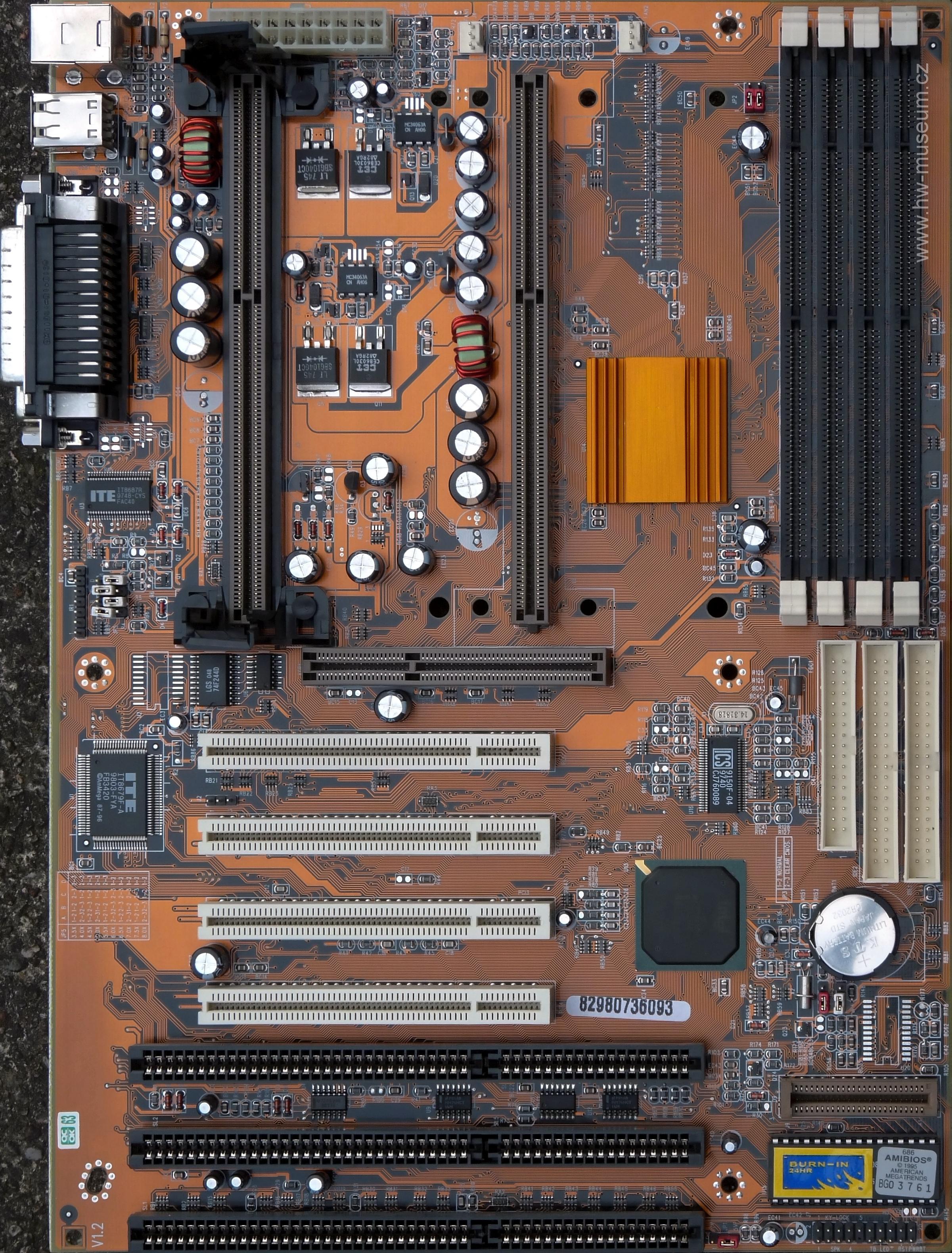

image2 Image 2 of 4 (havli)
image3 Image 3 of 4 (havli)
image4 Image 4 of 4 (fire219)
