PCChips/Hsin Tech M601 (ver. 1.3F)
Logs
chipChipset
cpuSocket
PGA168
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
250mm x 220mm
chipCache
64KB128KB256KB
ramMax RAM size
64MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
7x
16-bit ISA
3x
32-bit VLB
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-09-02T14:10:56Z
Board info score is 6.4/10
chip Chips
-> Chipset part
SARC RC4018A4 (CHIP 11) SARC RC4019A4 (CHIP 13)
cpufam CPU family support
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

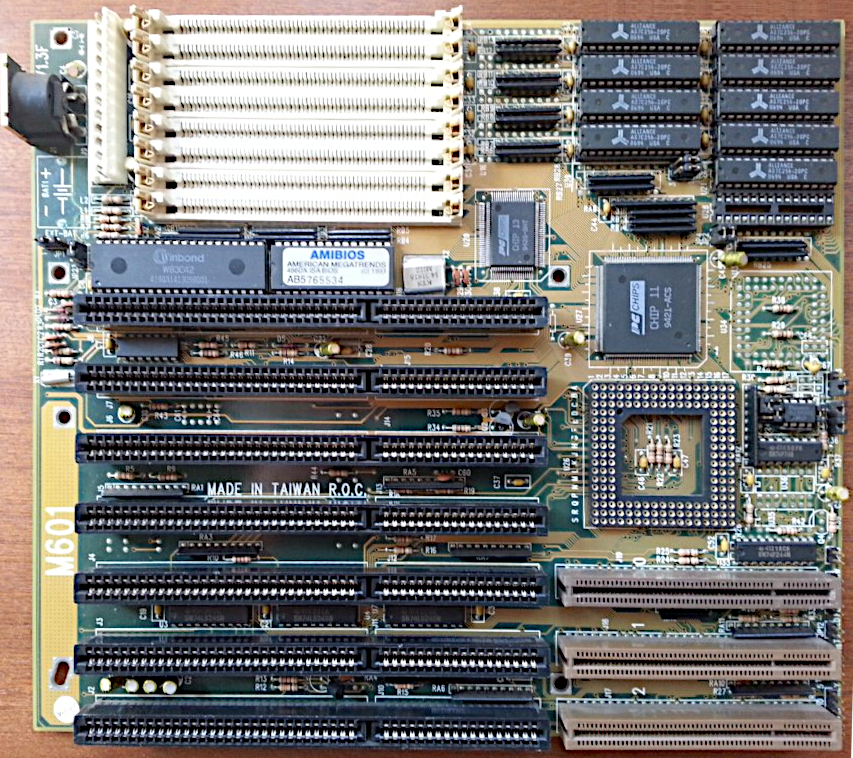

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
