PCChips/Hsin Tech M592
Chipset
Socket
FSB speeds 50MHz55MHz60MHz66MHz75MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Max VRAM size2MB
Cache
512KB
Max RAM size
144MB(16MB is onboard)
RAM types 72-pin FPM72-pin EDO168-pin EDO UDIMM
PSU connector
Also known as
- PC Wave MB-592
- Ability Technologies MB-586VXU2
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
3x
USB 1.x
1x
VGA
Expansion slots2x
16-bit ISA
2x
32-bit PCI
Last updated 2025-08-21T06:34:03Z
Board info score is 9.3/10
Chips
-> Chipset part
-> Audio
-> Super I/O
-> Video
2 BIOS files available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-0531-001437-00101110-071595-592-001_10_UTRON
Note
Core version
071595
BIOS version
Logs
POST string
51-0509-001437-00101110-071595-592-001_10_UTRON
Note
Core version
071595
BIOS version
Logs
7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.10.0.00152
OS support
Windows 9x
Windows NT 4.0
Arch
Size
35.9MB
Filename
Name
Version
4.10.00.0152
OS support
MS-DOS
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
Size
27.2MB
Filename
Name
Version
1.04a
OS support
OS/2 1.x
Windows 3.1x
Windows NT 3.5x
Windows NT 4.0
Arch
Size
7.1MB
Filename
Name
Version
1.0.0.1
OS support
Windows 9x
Arch
Size
282.4KB
Filename
Version
OS support
Arch
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs
Image 1 of 2 (Microhouse)

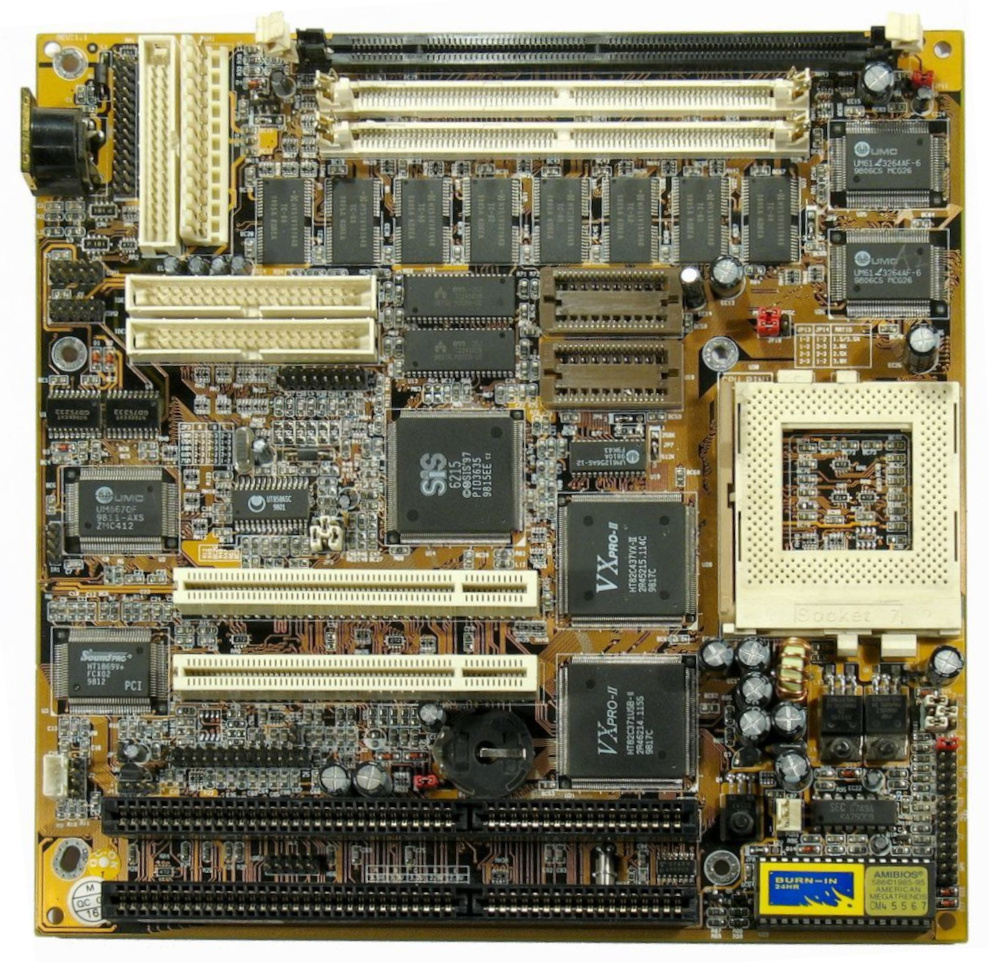

Image 2 of 2 (old_pc_parts)
