PCChips/Hsin Tech M507
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
1x
COAST Slot
1x
Pentium VRM Header
Known issues
- Fake cache
The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered DIP-chips and no jumpers to set the chache size. Cache functionality can usually be restored by installing proper chips, jumpers and a BIOS update/mod.
Notes
if you have an "S" bios, only upgrade with an "S" version. This has to do with the internal blocks in the bios chip.
Last updated 2025-01-03T18:57:36Z
Board info score is 9.5/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Super I/O
CPU family support
7 BIOS files available
Award - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/31/95-TRITON-2A59CF54C-00
Note
Core version
4.50G
BIOS version
Logs
POST string
04/10/97-i430FX-2A59CF5HC-00
Note
Amptron PM-7600
Core version
4.51PG
BIOS version
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
5 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-06-23
File
Logs

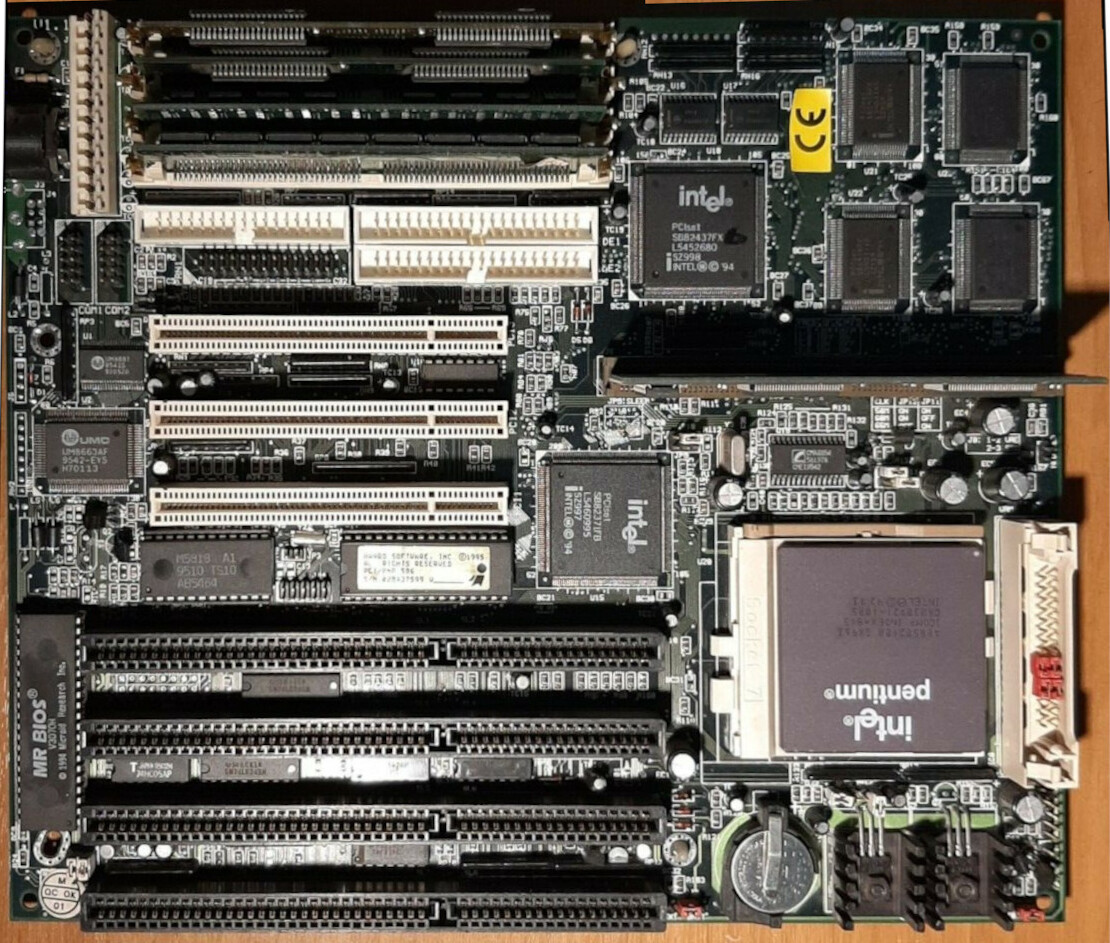

Image 1 of 7 (Microhouse)

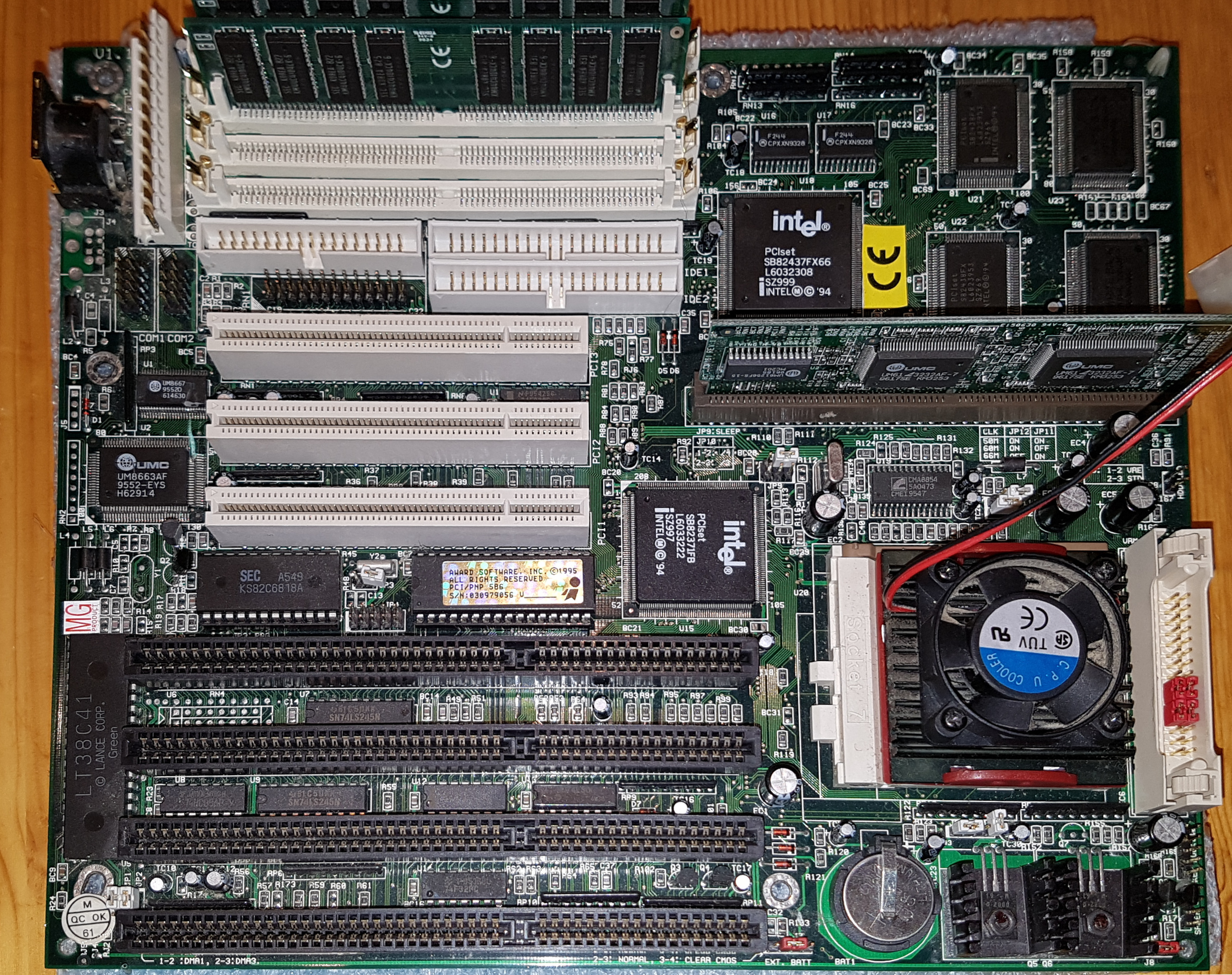

Image 2 of 7 (evasive)
Image 3 of 7

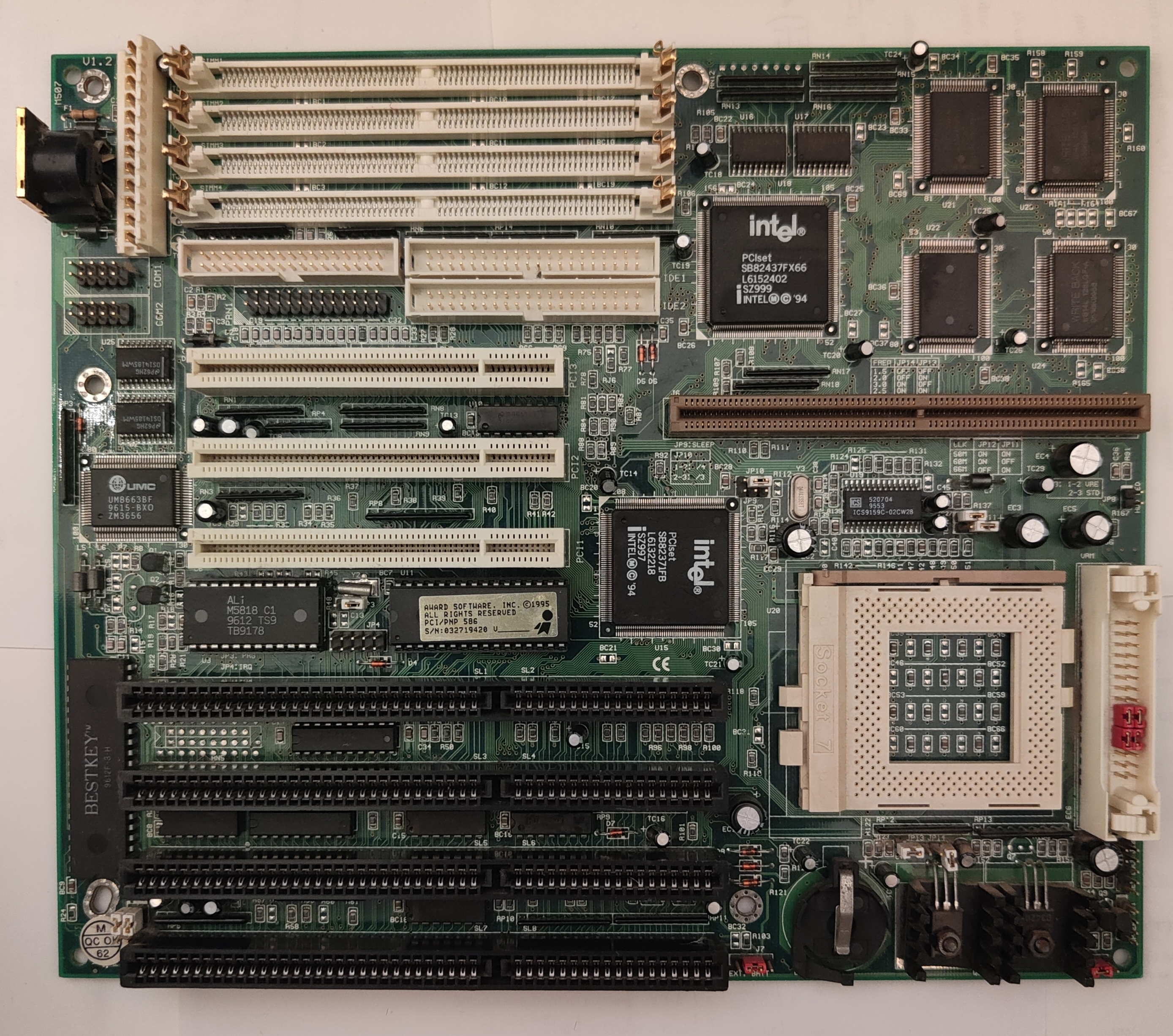

Image 4 of 7 (Carlos S. M.)

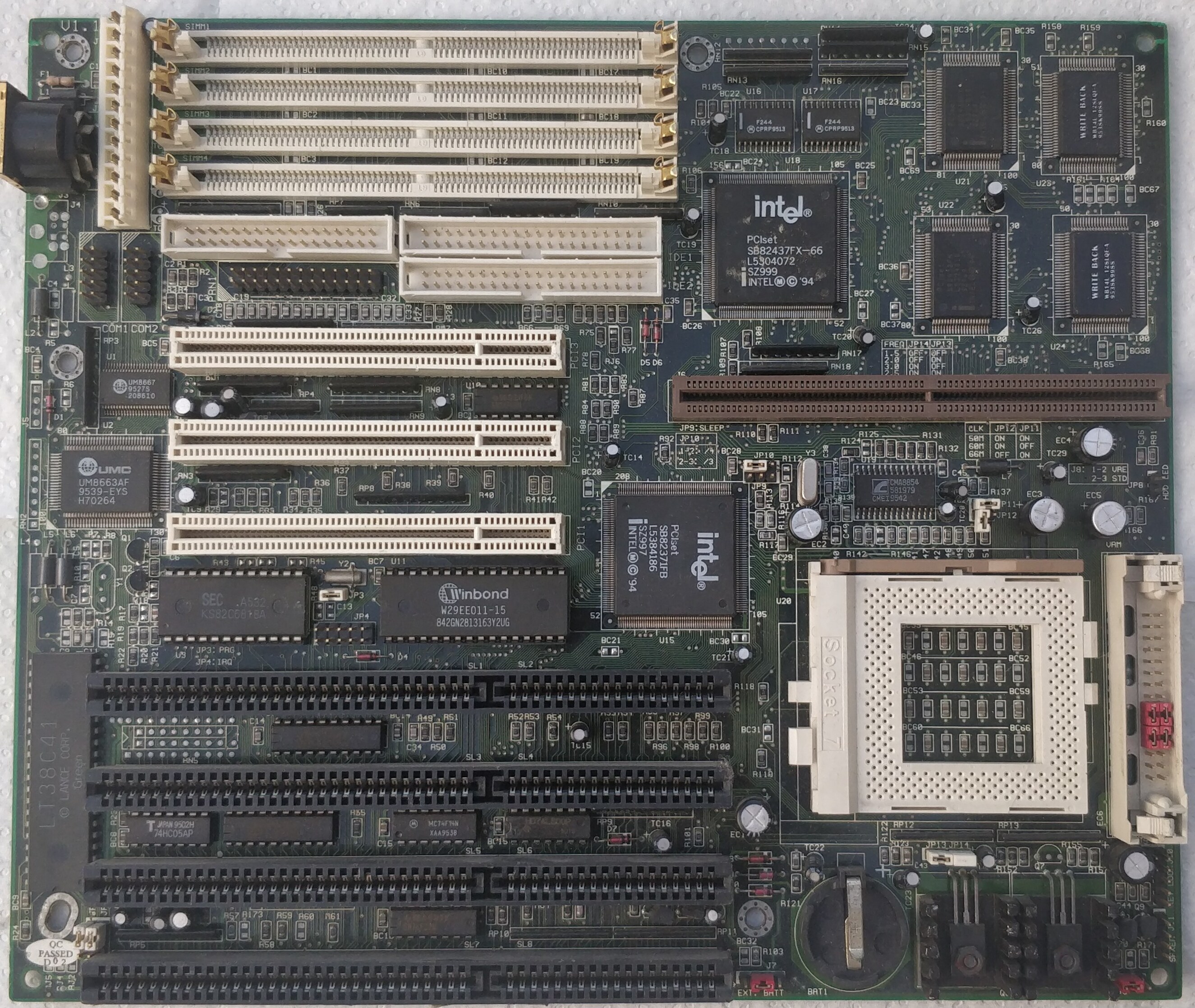

Image 5 of 7

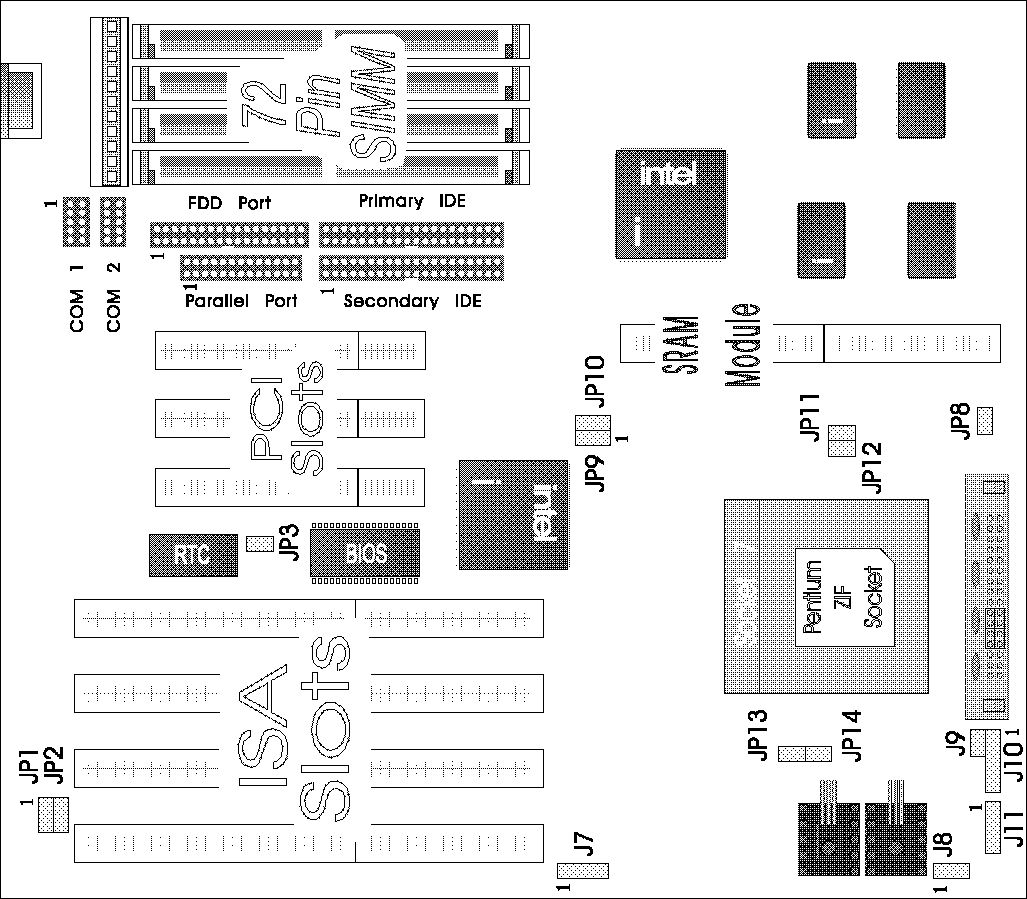

Image 6 of 7 (deksor)

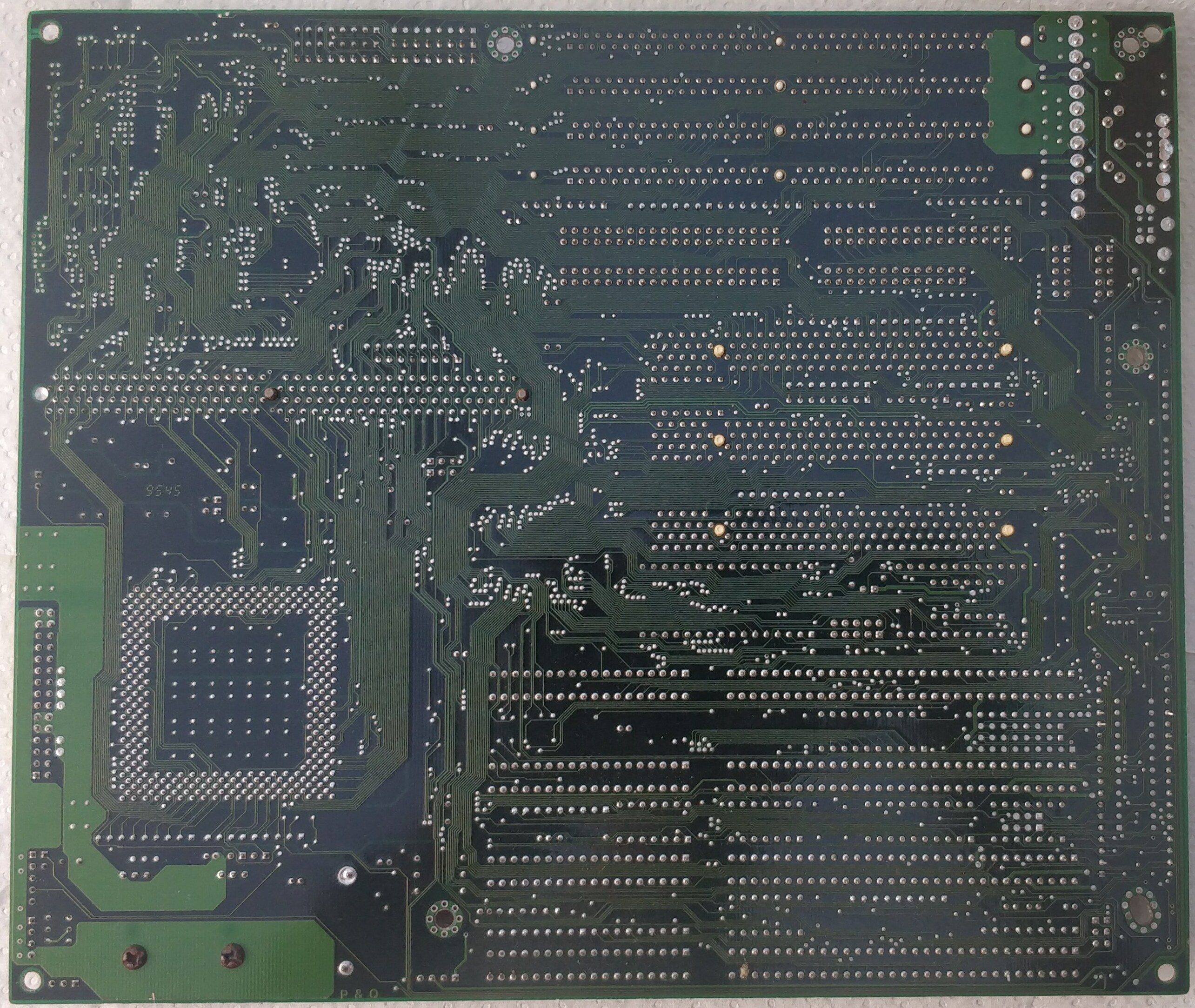

Image 7 of 7 (deksor)
