PCChips/Hsin Tech M205 (rev2)
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
12.5MHz16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2MB
ramRAM types
DIP-20 (4bit)DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
3x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes
  • Similar but slightly different than the PC Chips M205, PCMATE TD60, and Hedaka HED-986 motherboards.

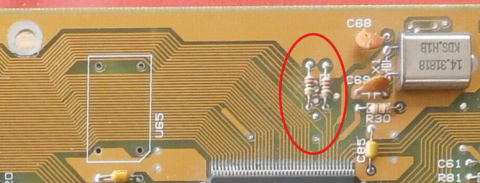

  • Examine area between the TD60 chip and the edge of the board.
  • This board has 2 unlabled resistors in that location.
Last updated 2025-06-26T15:30:28Z
Board info score is 7.7/10
chip Chips
-> Chipset part
City Gate D60
cpufam CPU family support
bios 0 BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.30
OS support
MS-DOS
Arch
Size
8.9KB
Filename
Name
Version
2.27
OS support
MS-DOS
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 3 (Microhouse)

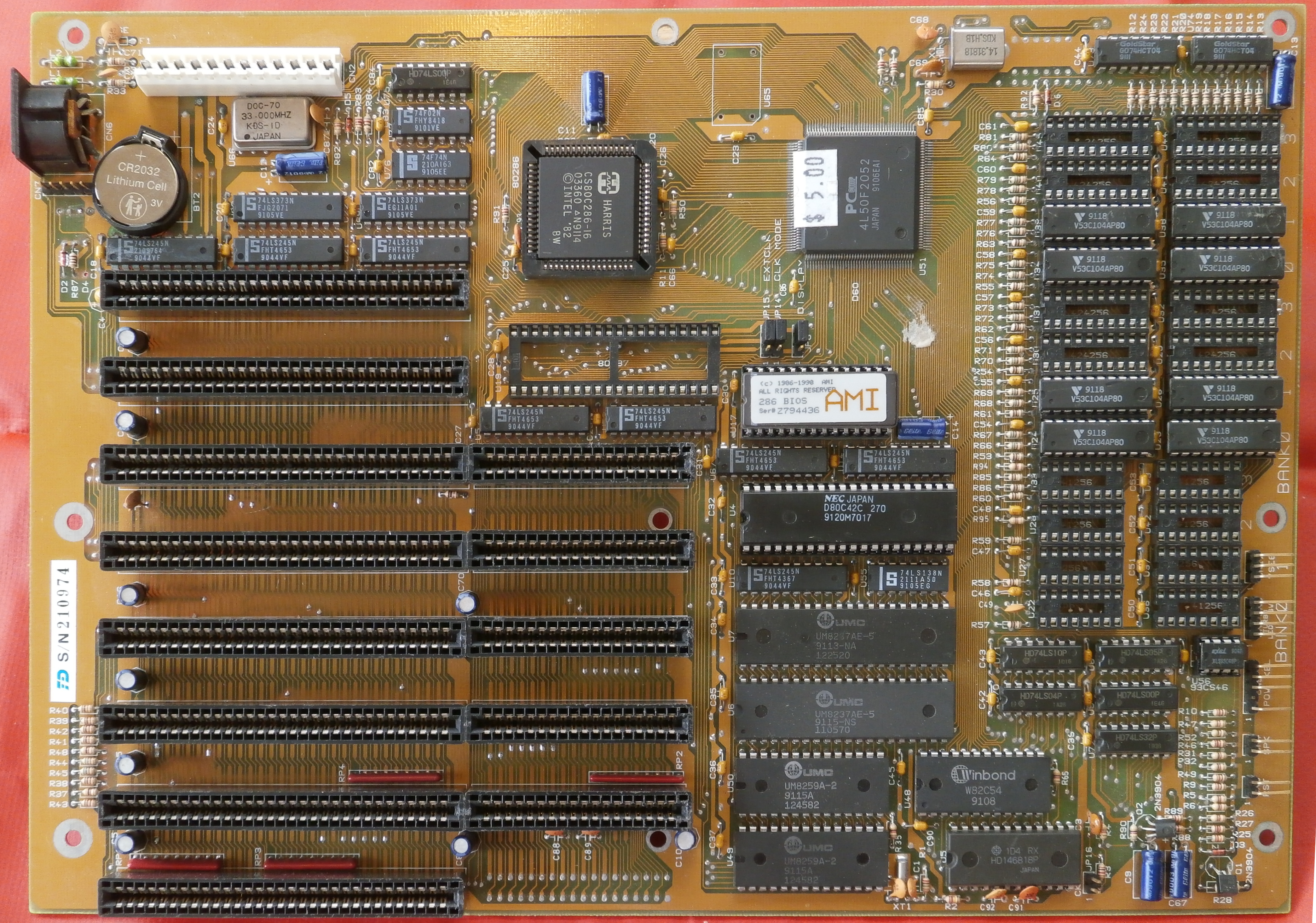

image2 Image 2 of 3
image3 Image 3 of 3
