Packard Bell 386X
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
16MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

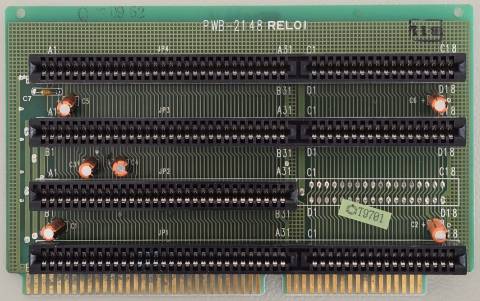

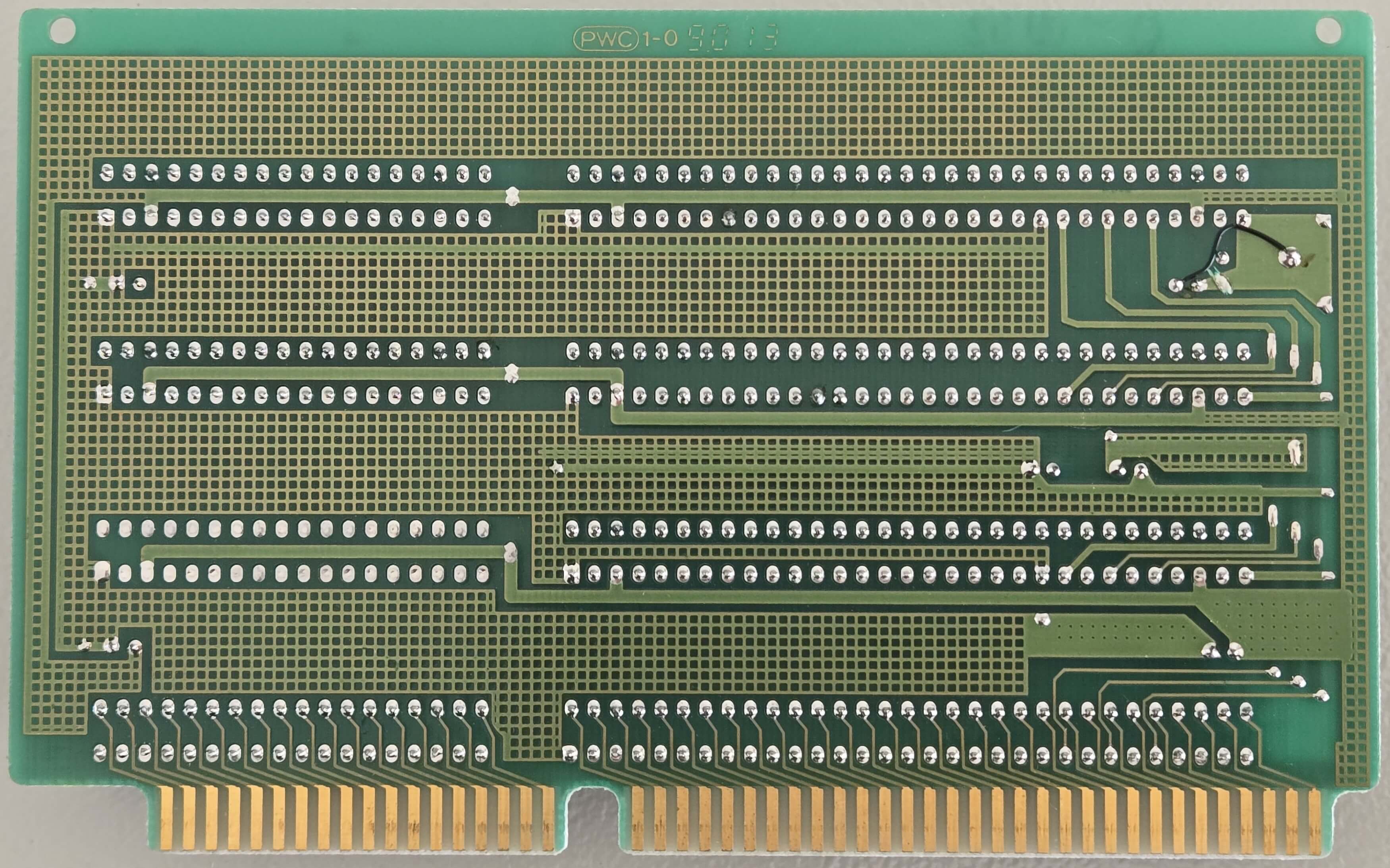

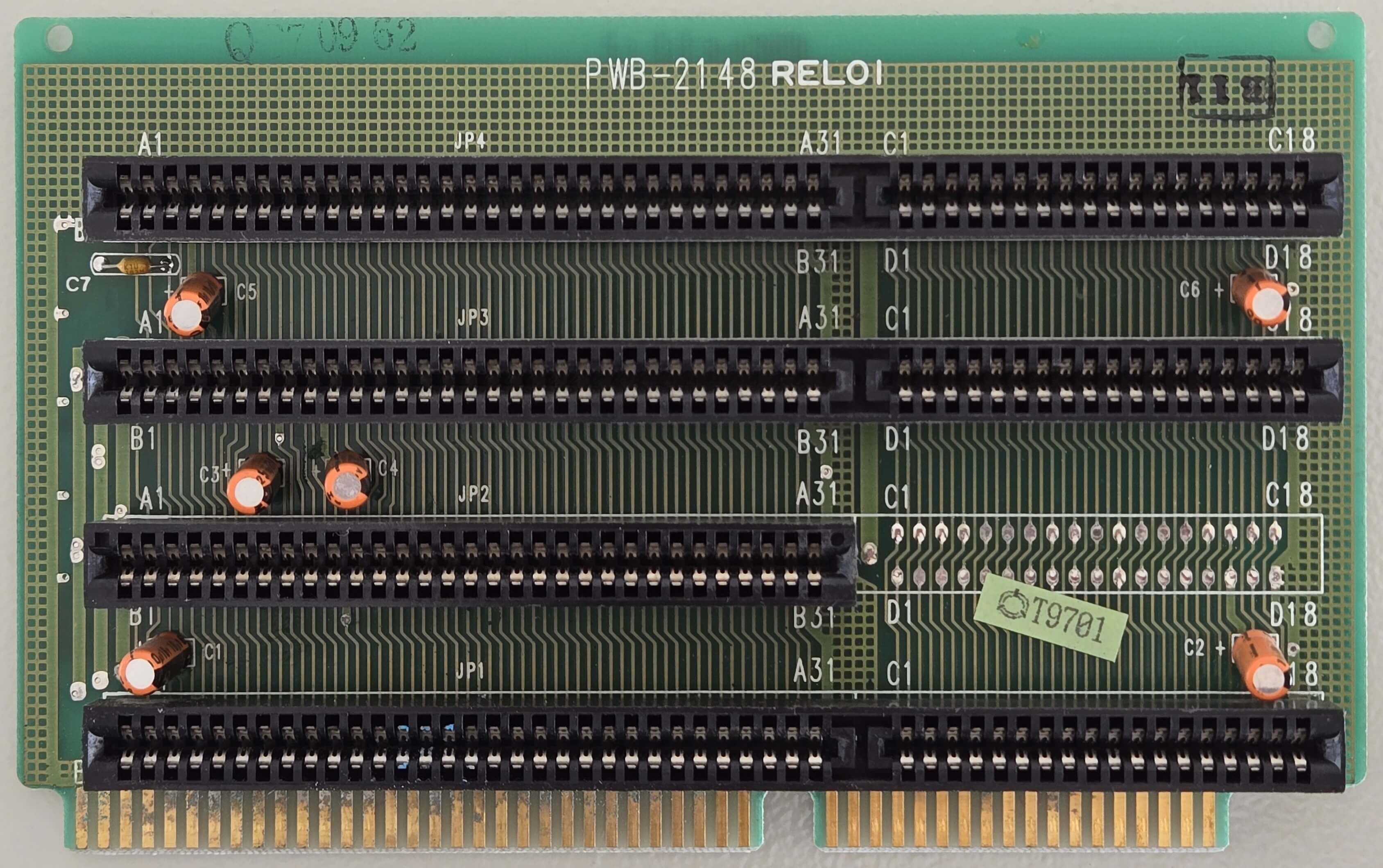

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-24T19:31:38Z
Board info score is 8.4/10
bios 0 BIOS files available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
1.10.114
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1989-08-29
File
Logs
Chip
Release date
1990-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1989-11
File
Logs
Chip
Release date
1989-11
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

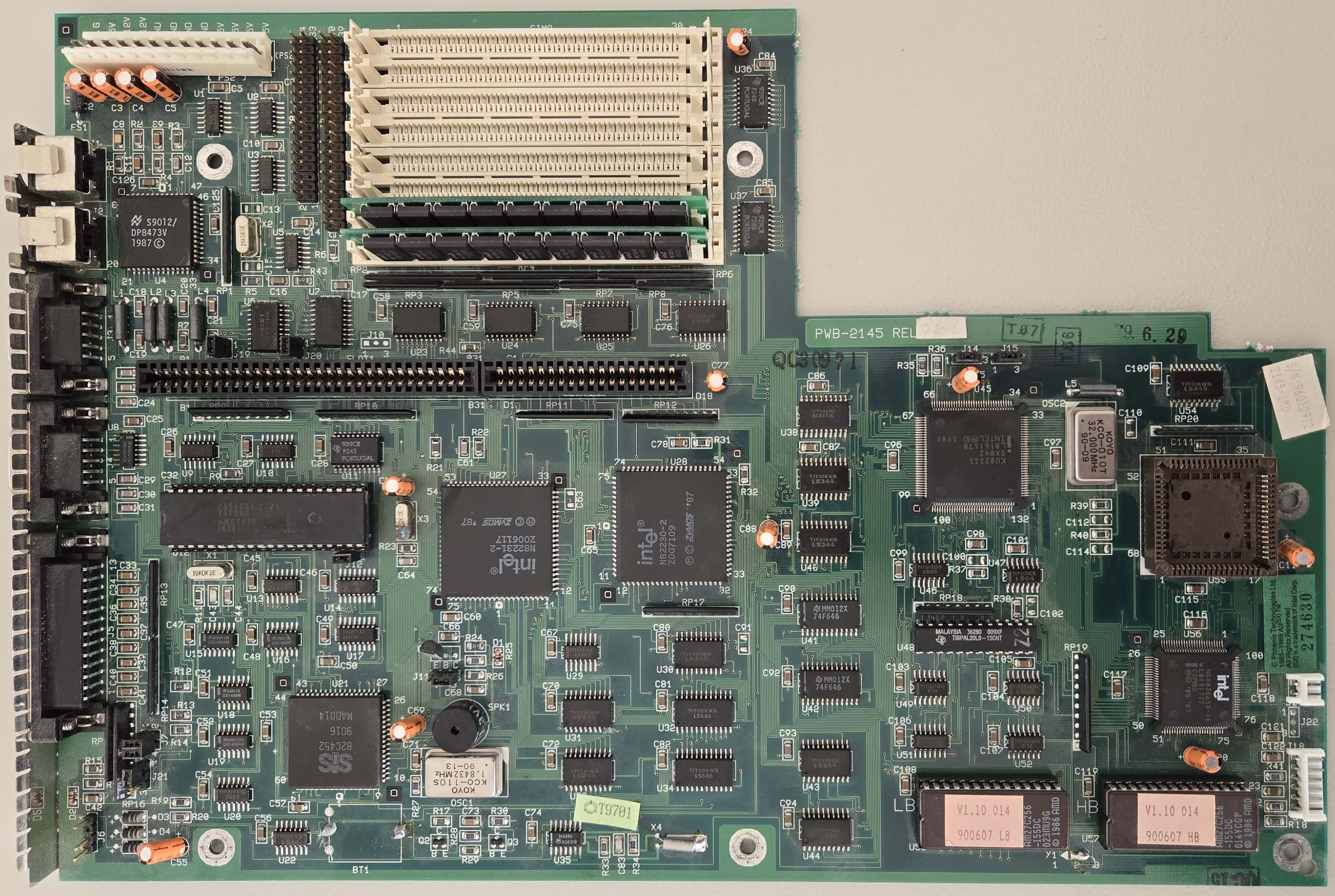

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (dumbbells_45759)

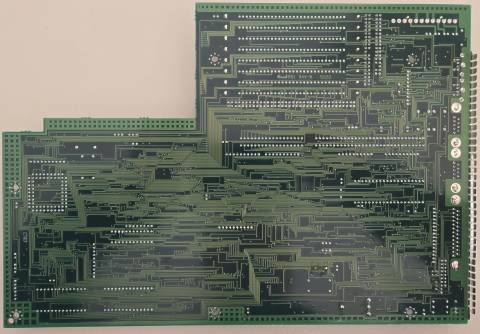

image3 Image 3 of 5 (dumbbells_45759)
image4 Image 4 of 5 (dumbbells_45759)
image5 Image 5 of 5 (dumbbells_45759)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
