Octagon Systems XE-900
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speed
133MHz
moboForm factor
EPIC (max 115 x 165 mm)
dimDimensions
115mm x 165mm
chipCache
None/Integrated in the CPU
ramMax RAM size
256MB512MB(Low-Power SO-DIMMs)
ramRAM type
144-pin SDR SO-DIMM
pwrPSU connector
OEM/Proprietary
tag Also known as
connI/O ports
1x
CF Card Slot
1x
IDE interface
1x
LVDS
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
6x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
PC/104+ (PC/104-Plus)
notes Notes

Onboard Via EDEN ESP CPU

The XE–900 supports PC-100 or PC-133 SO–DIMM modules up to 256 MB. Some low-power 512 MB SO–DIMM modules are also supported.

115 mm x 165 mm x 29.5 mm, EPIC form factor (board), 171.45 mm x 184.15 mm x 38.96 mm (with Integrated Conductive Cooling System)

Last updated 2025-05-20T13:19:27Z
Board info score is 6.9/10
bios 0 BIOS files available
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
13.01.03
OS support
Windows 9x
Arch
Size
5.2MB
Filename
Name
Version
10.10.20
OS support
Windows NT 4.0
Arch
Size
3.7MB
Filename
Name
Version
13.00.49
OS support
Windows 9x
Arch
Size
4.8MB
Filename
Name
Version
11.10.09
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
image1 Image 1 of 2 (Octagon Systems)

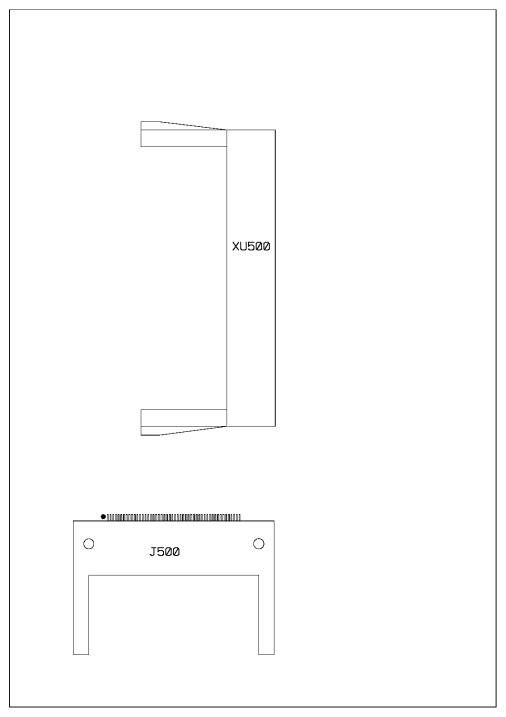

image2 Image 2 of 2 (Octagon Systems)
