Nvidia DP Sledgehammer CRB
Logs
chipChipset
cpuSocket
Socket 940 (mPGA940)
speedFSB speed
Empty
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
Floppy interface
2x
IDE interface
2x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
2x
32-bit PCI
3x
64-bit PCI-X
notes Notes

Customer reference board for development of nForce3 Pro 250 boards.

Requires full 8-pin EPS with dual CPUs, as each half powers a dedicated socket.

Last updated 2025-05-25T20:10:52Z
Board info score is 7.9/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.10 NVIDIA NFORCE3
Note
Core version
4.0 Release 6.0
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.008
OS support
Empty
Arch
x86
Size
2.2MB
Filename
Name
Version
1.08.5
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
11.4MB
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
406.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
30.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.9MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-09
File
Logs

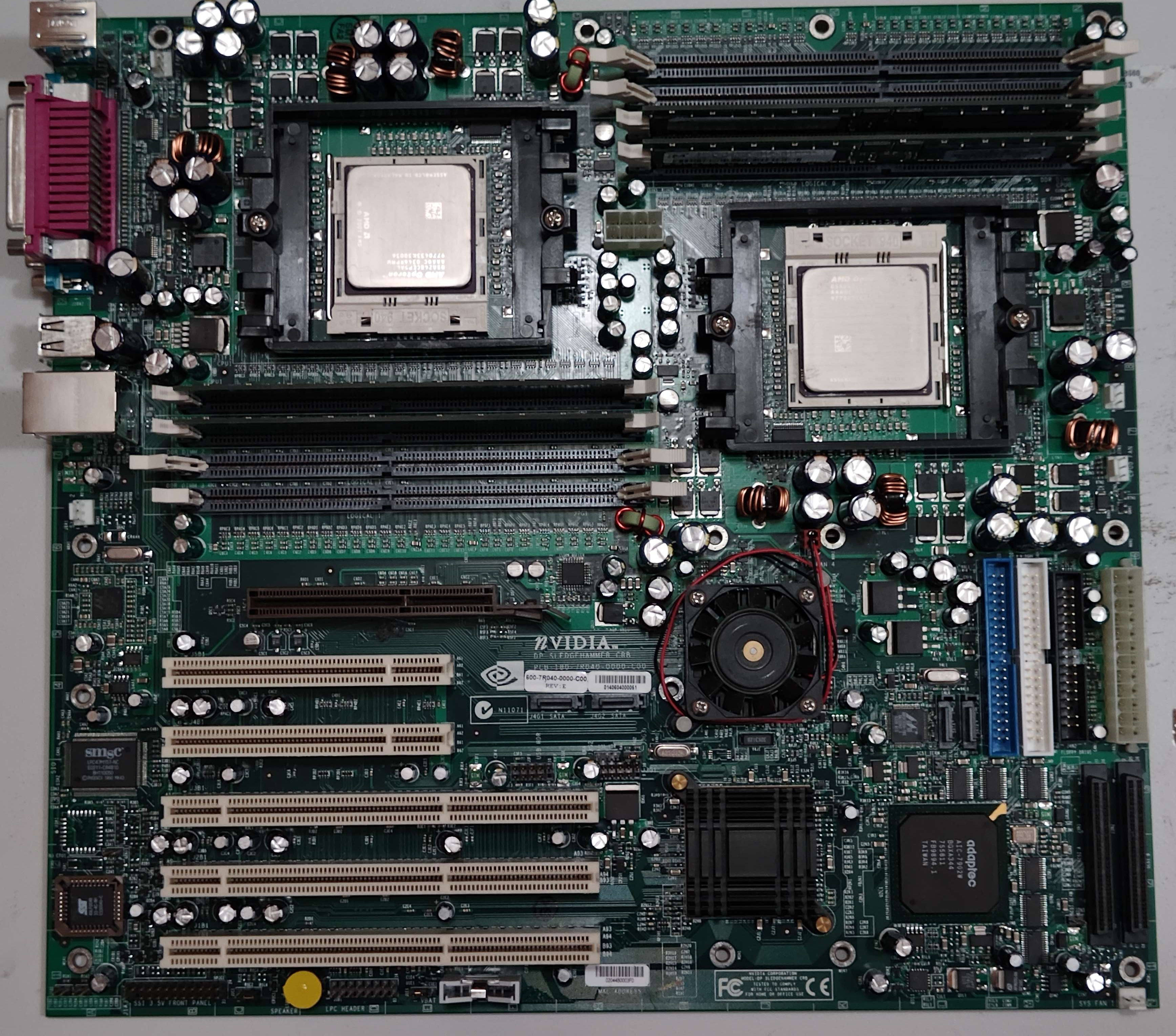

image1 Image 1 of 2 (kothnaaken)

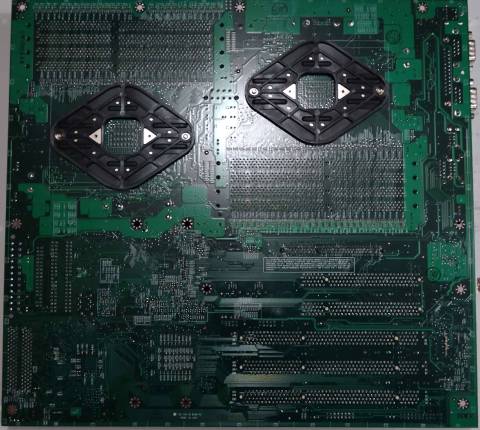

image2 Image 2 of 2 (kothnaaken)
