Northgate Computer Systems SLIMLINE ZXP
Chipset
Sockets
FSB speeds 16MHz20MHz25MHz33MHz50MHz
Form factorOEM / Proprietary
Dimensions330mm x 218mm
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM type 30-pin SIMM
PSU connector
Also known as
- Northgate Computer Systems NSL486
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
Known issues

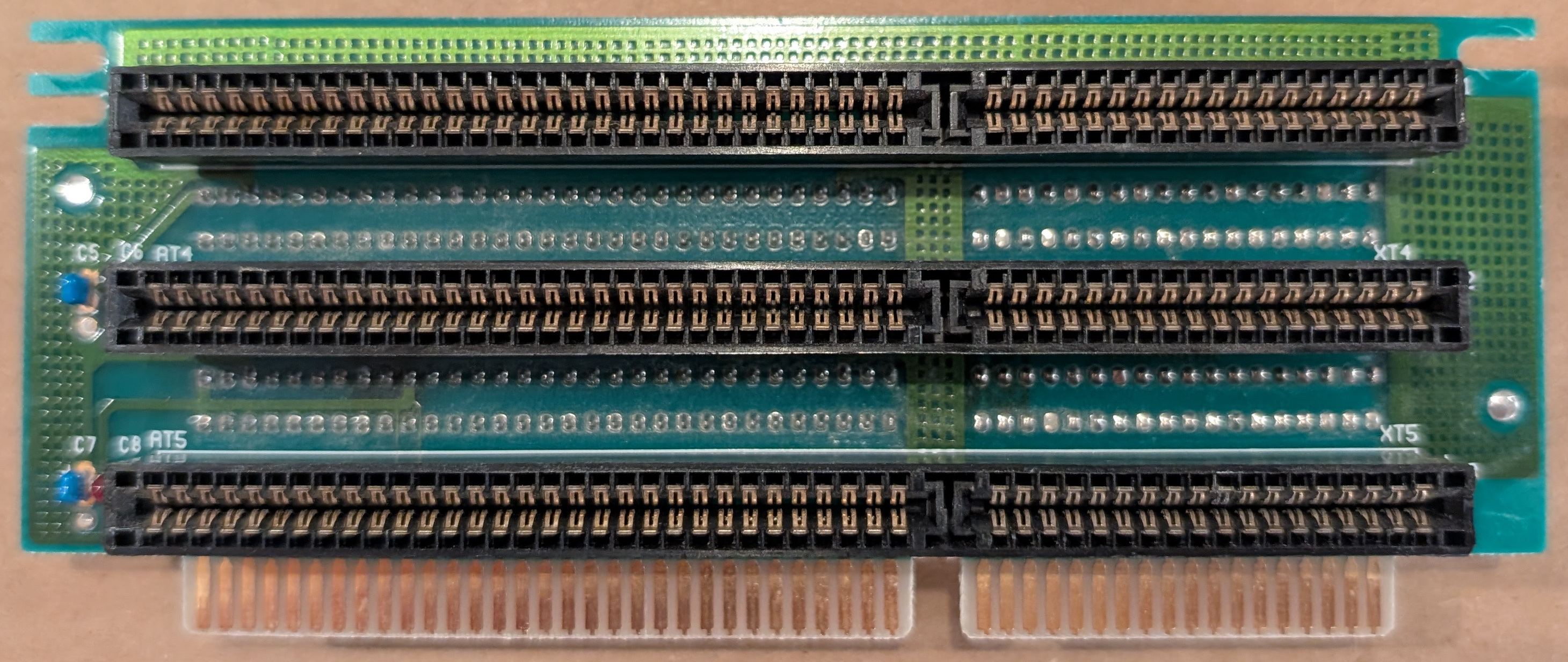

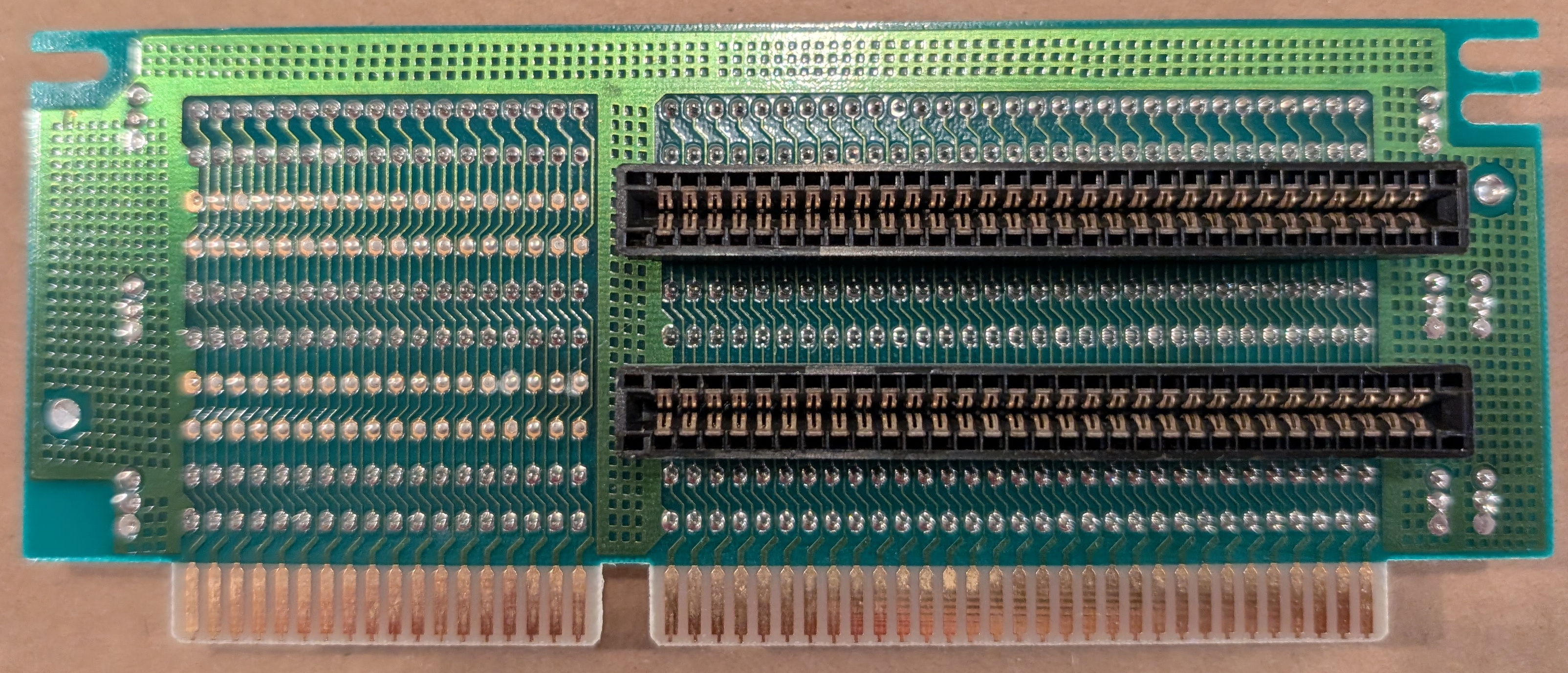

- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T19:02:12Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Human Interface
-> RAMDAC
-> Real-Time Clock
-> Signal transmitter/receiver
-> Super I/O
-> Video
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
Mylex - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
OS/2 1.x
OS/2 2.x
Windows 3.0
Windows NT 3.5x
Arch
x86
Size
857.2KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs

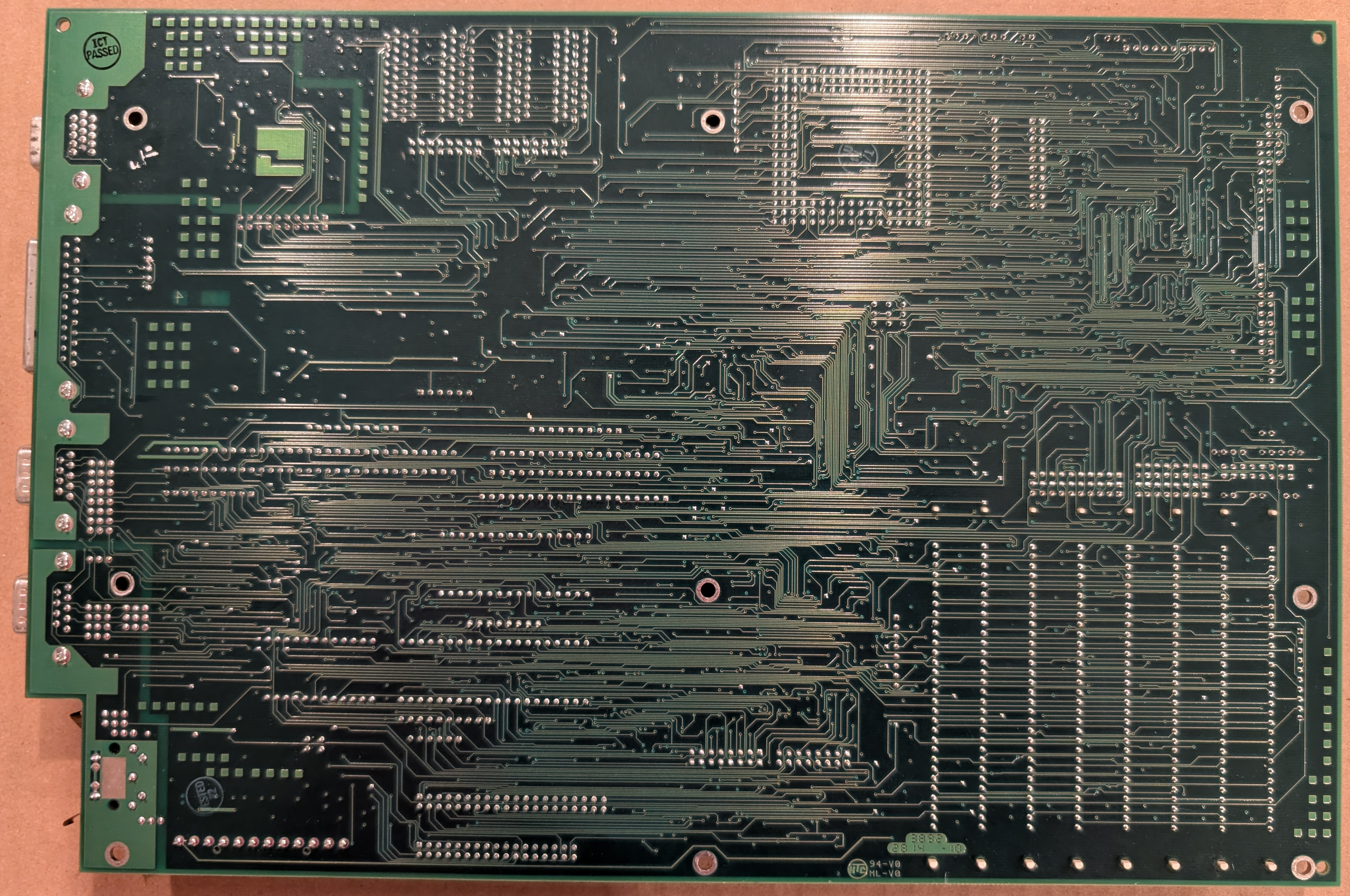

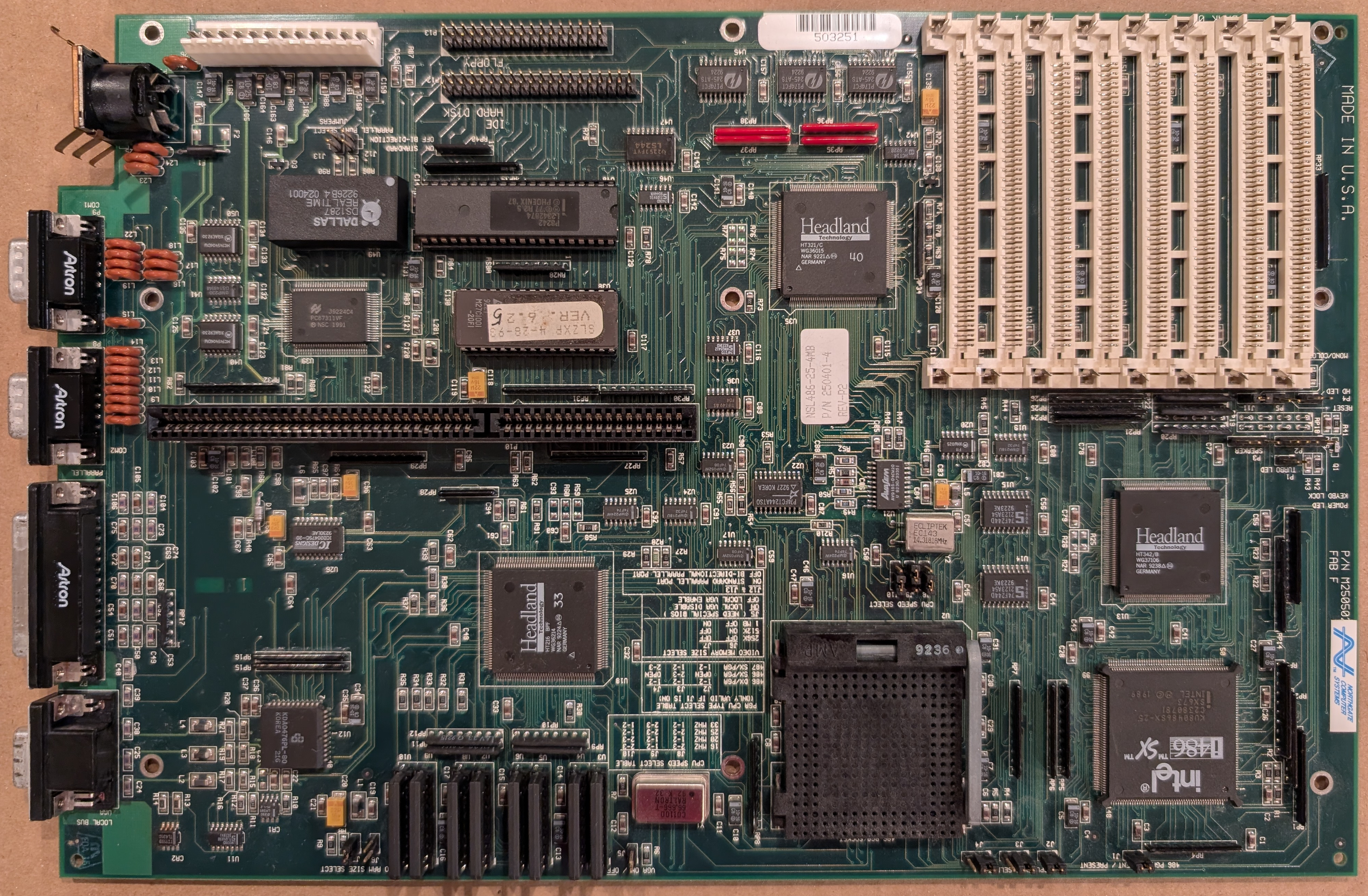

Image 1 of 5 (Microhouse)
Image 2 of 5 (Josh Behrends)
Image 3 of 5 (Josh Behrends)
Image 4 of 5 (Josh Behrends)
Image 5 of 5 (Josh Behrends)
