NORCO MITX-6682
Chipset
Socket
FSB speed 400MHz
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
1GB(DDR-400)
RAM type DDR UDIMM
PSU connector
Also known as
- NORCO NORCO-6682
I/O ports1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
Notes
Embedded AMD Geode LX700 Processor
20-pin ATX or 8-24V DC-In
Last updated 2025-05-30T18:56:50Z
Board info score is 7.9/10
Chips
-> Chipset part
-> Network
-> Super I/O
CPU family support
0 BIOS files available
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Family
Release date
File
Logs

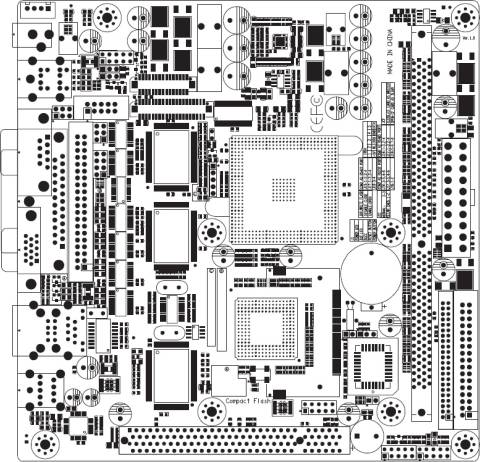

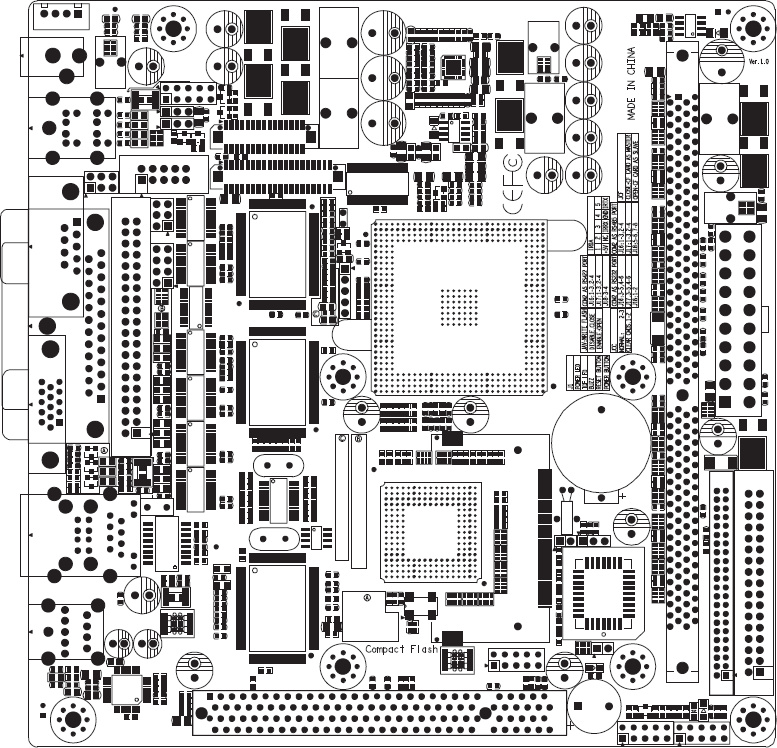

Image 1 of 2 (NORCO)

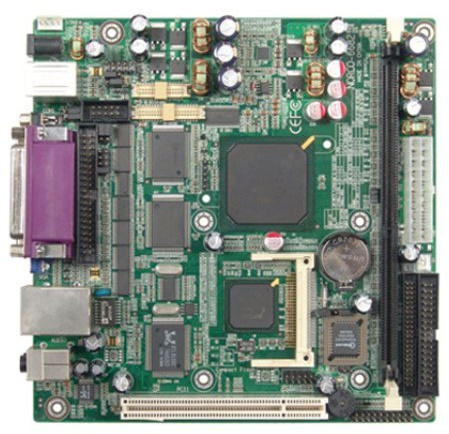

Image 2 of 2 (NORCO)
