NEWSMAY/NEOSMAY NSMAY N100
Logs
Chipset
Socket
FSB speed Empty
Form factorNano ITX (max 120 × 120 mm)
Dimensions120mm x 120mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type 260-pin DDR4 SO-DIMM
PSU connector
Also known as
- NEWSMAY/NEOSMAY NSMAY N200
- NEWSMAY/NEOSMAY AC8-N System Board
- SZBOX AC8-N System Board
- UMAX U-BOX N10 Pro System Board
- Unknown R-M8ANX02R110
- Unknown M8_AN_X02R110
I/O ports1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
DisplayPort
1x
HDMI
2x
RJ-45 LAN
1x
SD Card Slot
4x
USB 3.0
1x
VGA
Expansion slots1x
M.2 (E key)
1x
M.2 (M key)
Last updated 2025-10-05T18:13:07Z
Board info score is 7.7/10
Chips
-> Audio
-> Processor
-> Super I/O
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
1 board document available
Release date
File
Logs

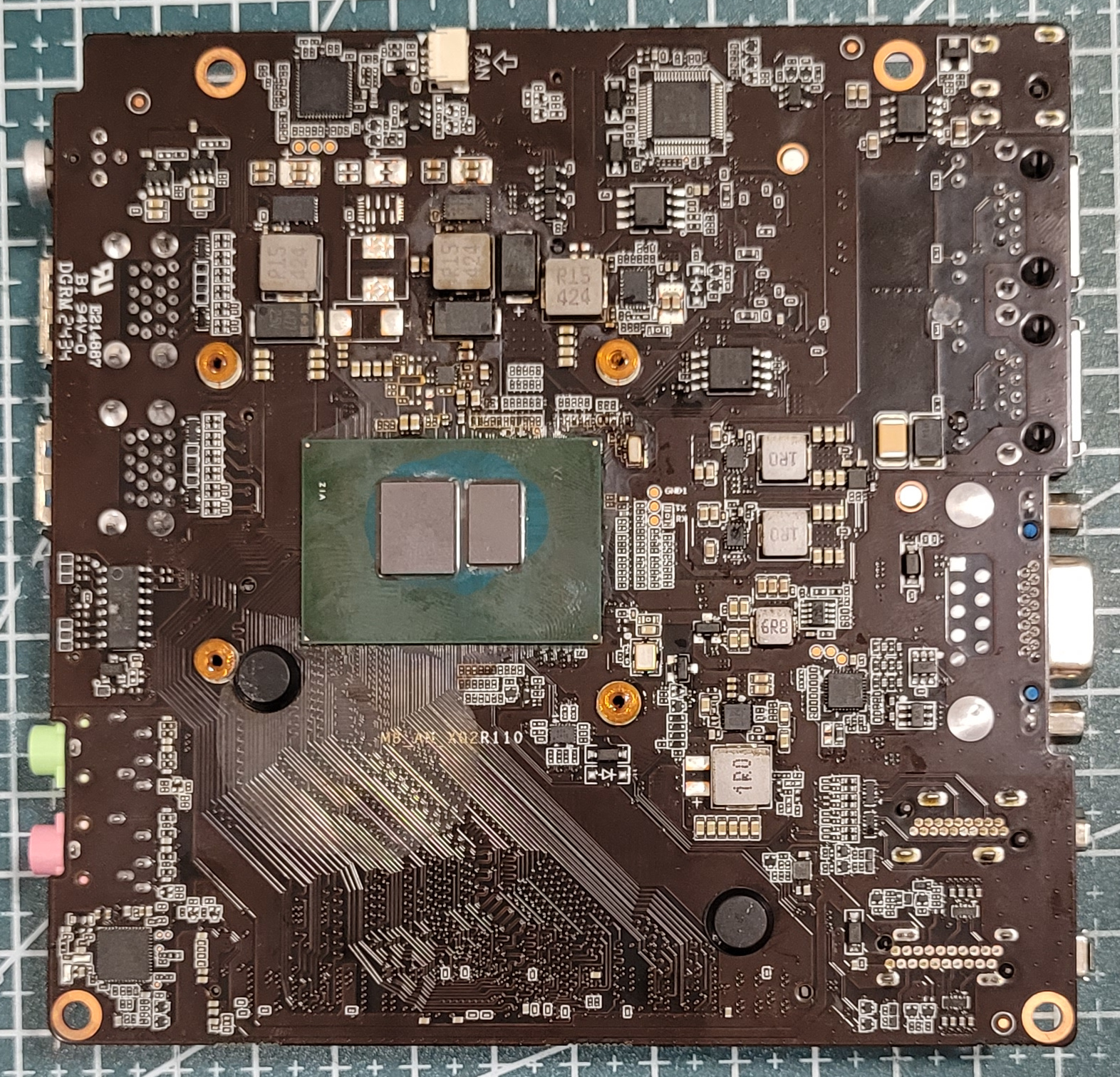

Image 1 of 3 (Wolt1x)
Image 2 of 3 (Wolt1x)

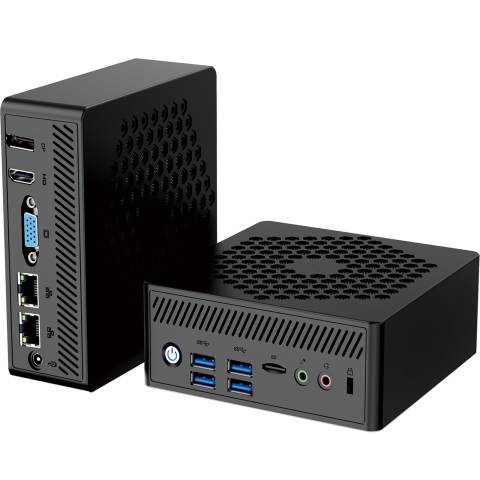

Image 3 of 3 (NEWSMAY/NEOSMAY)
