NEC G8RNL (Socket 6)
Logs
chipChipset
Empty
cpuSocket
Socket 6 (PGA235)
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
128KB256KB
ramMax RAM size
96MB
ramRAM types
72-pin FPM72-pin Parity FPM
pwrPSU connector
PC-98
tag Also known as
  • NEC PC-9821Xp system board
connI/O ports
1x
3.5mm Line-In
2x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
2x
IDE interface
1x
PC-98 Mini-DIN Keyboard
1x
PC-98 Mini-DIN Mouse
1x
Parallel
1x
Serial
1x
VGA
cardExpansion slots
1x
PC-98 C-bus
notes Notes

  • WARNING: Board has Socket 6 and therefore ONLY supports 3.3V or 3.45V 486 CPUs, 5V 486 CPUs are NOT supported on this board.

  • The white slot on the board that looks like a PCI slot is actually an L2 cache slot. DO NOT attempt to insert a PCI card into the slot.

  • Standard 128KB Cache, maximum 256KB Cache

Last updated 2023-08-01T18:39:07Z
Board info score is 5.7/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
image1 Image 1 of 3 (okqubit.net)
image2 Image 2 of 3 (okqubit.net)

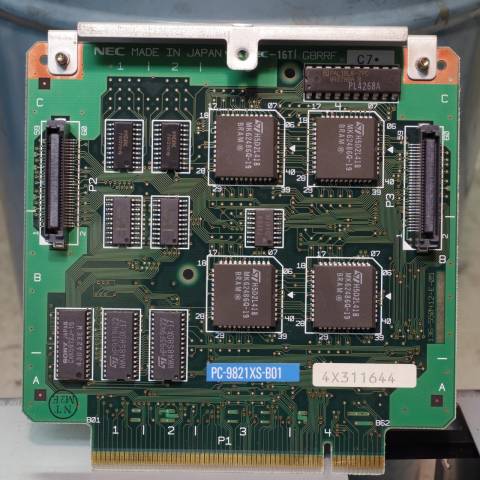

image3 Image 3 of 3 (okqubit.net)
