NCR MODEL 3227
Chipset
Sockets
FSB speeds 25MHz33MHz50MHz
Form factorLPX (max 229 x 330 mm)
Dimensions310mm x 304mm
Max VRAM size1MB
Cache
None/Integrated in the CPU
Max RAM size
32MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T18:58:24Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Super I/O
-> Video
CPU family support
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

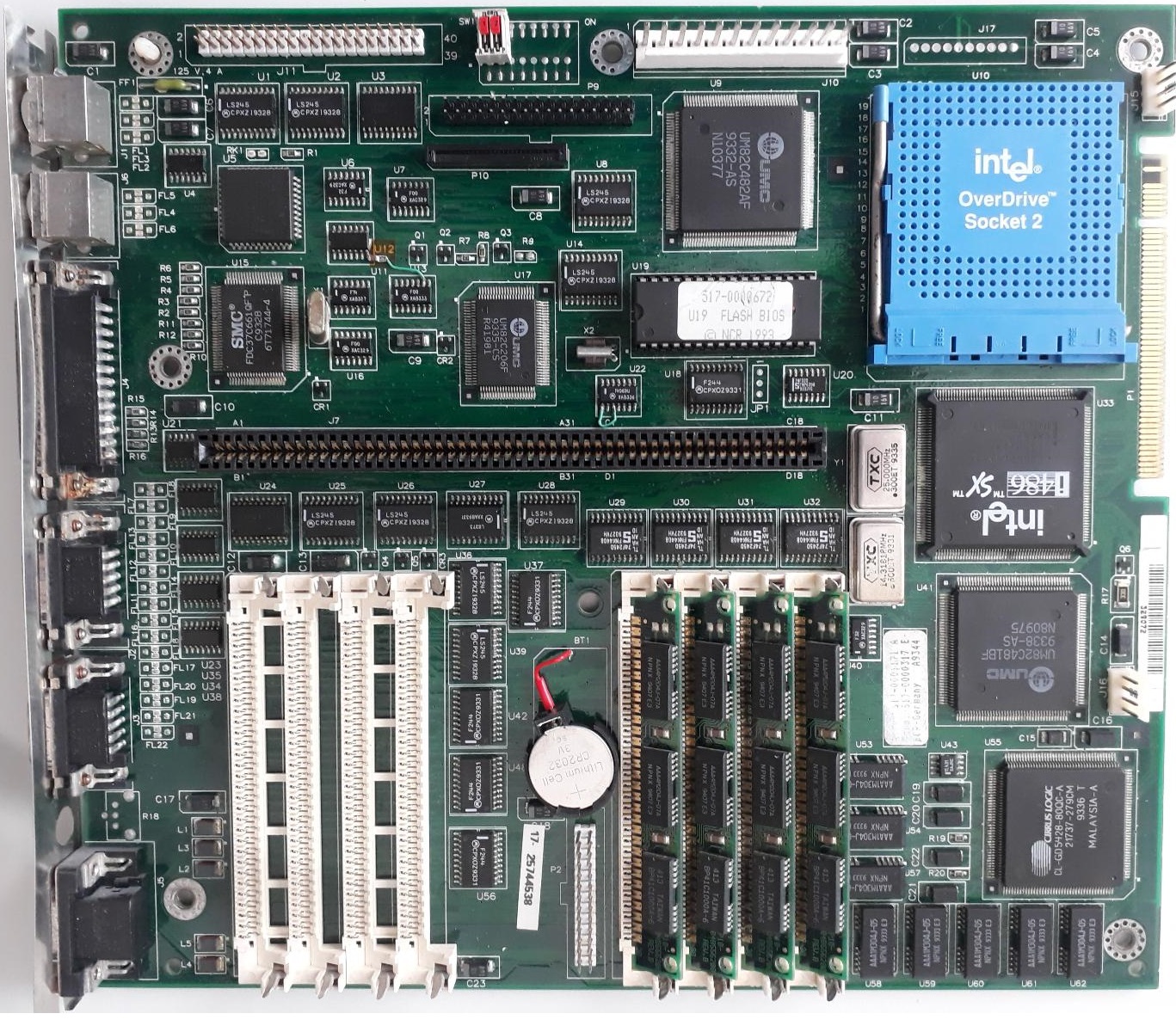

Image 1 of 3 (Microhouse)

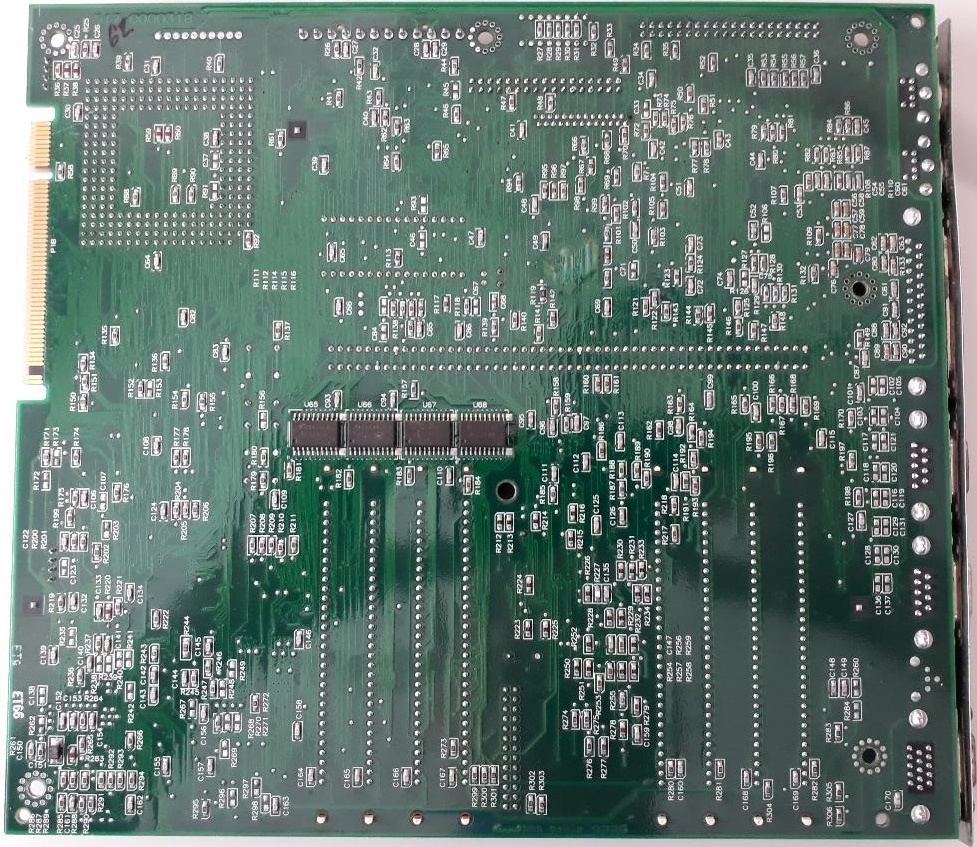

Image 2 of 3 (Jan Kouba)
Image 3 of 3 (Jan Kouba)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
