NCL America Computer C2121
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
12MHz
moboForm factor
OEM / Proprietary
dimDimensions
Empty
ramMax VRAM size
256KB
chipCache
None/Integrated in the CPU
ramMax RAM size
4MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
CGA
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
Empty
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes

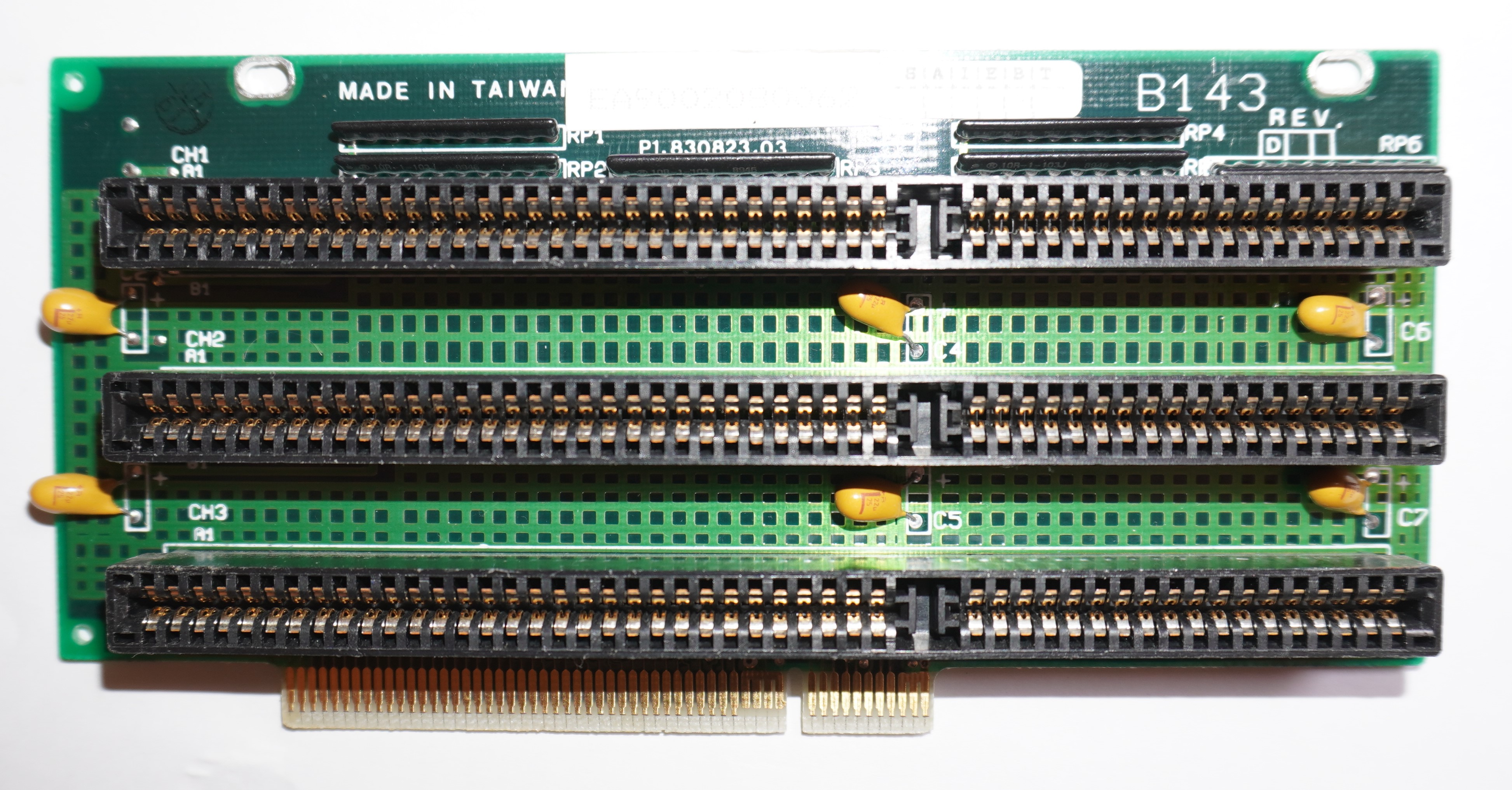

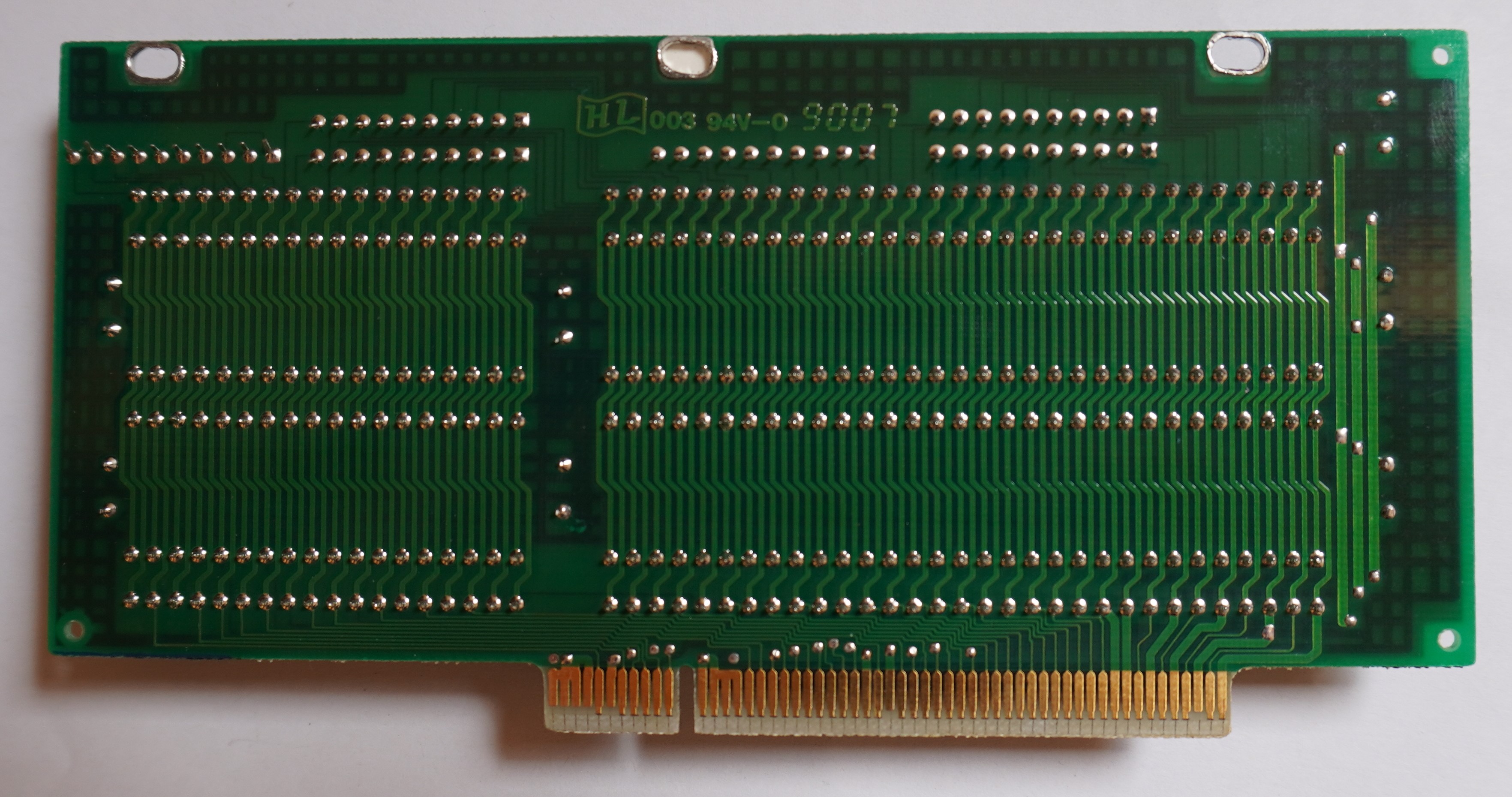

Riser card with 3 16bit ISA

Last updated 2025-06-03T18:35:27Z
Board info score is 7.3/10
bios 0 BIOS files available
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1989-06-27
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
1988
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

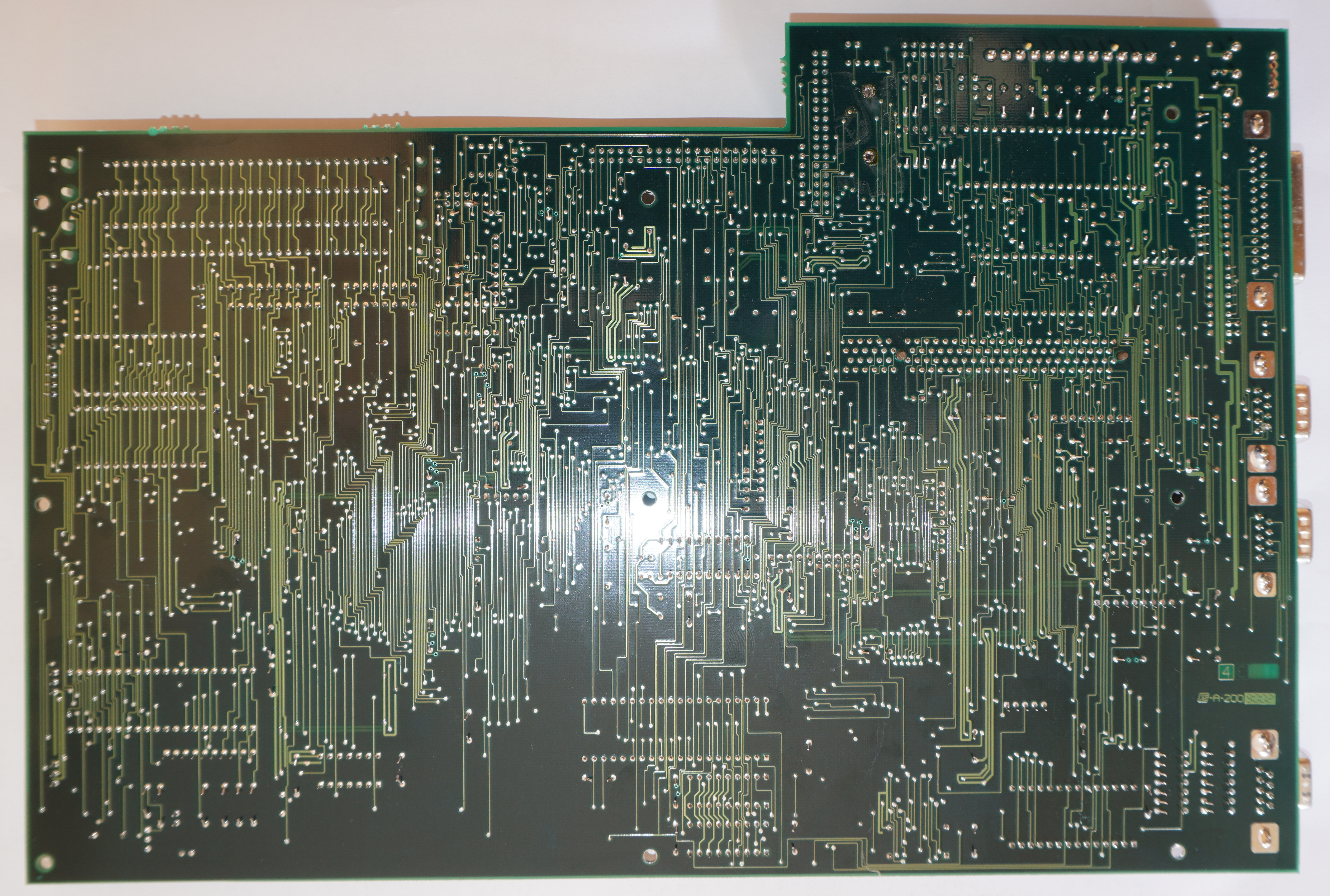

image1 Image 1 of 4 (Elke Wehmer)
image2 Image 2 of 4 (Elke Wehmer)
image3 Image 3 of 4 (Elke Wehmer)
image4 Image 4 of 4 (Elke Wehmer)
