MSI X99A GODLIKE GAMING CARBON
Chipset
Socket
FSB speed Empty
Form factorExtended ATX/EATX (max 305 × 330 mm)
Dimensions305mm x 272mm
Cache
None/Integrated in the CPU
Max RAM size
128GB
RAM type DDR4 UDIMM
PSU connector
Also known as
- MSI MS-7883 VER:1.1
I/O ports1x
3.5mm Audio Combo
1x
6.3mm Line-Out
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
SATA Express
10x
SATA III
1x
Toslink
6x
USB 2.0
9x
USB 3.1 Type-A
1x
USB 3.1 Type-C
Expansion slots1x
M.2 (M key)
2x
PCIe x16
3x
PCIe x16 @ x8
Notes
5x PCIe 3.0 x16 slots, support up to 4-way mode
- 1-way mode: x16/ x0/ x0/ x0/ x0
- 2-way mode: x16/ x0/ x0/ x16/ x0*, 16/ x0/ x0/ x8/ x0**
- 3-way mode: x16/ x0/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x0**
- 4-way mode: x8/ x8/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x4**
Last updated 2025-12-30T15:07:34Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> USB ctrl.
CPU family support
8 BIOS files available
AMI - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10
Windows 7
Windows 8.x
Windows Vista
Arch
x86
, x86-64
, IA-64
Size
8.9MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2014-06-23
File
Logs
Chip
Release date
2014-11-18
File
Logs
Chip
Release date
File
Logs

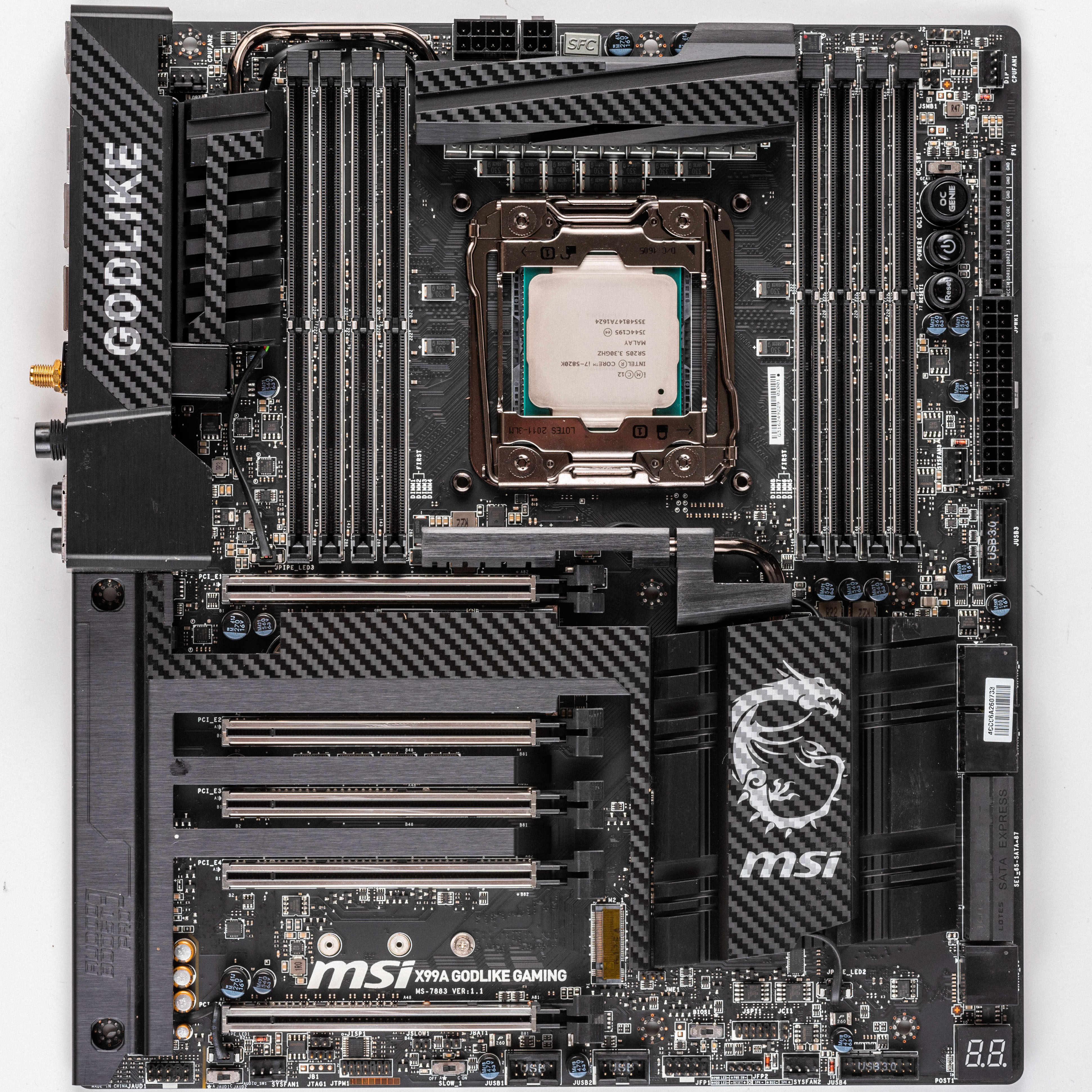

Image 1 of 5 (MSI)

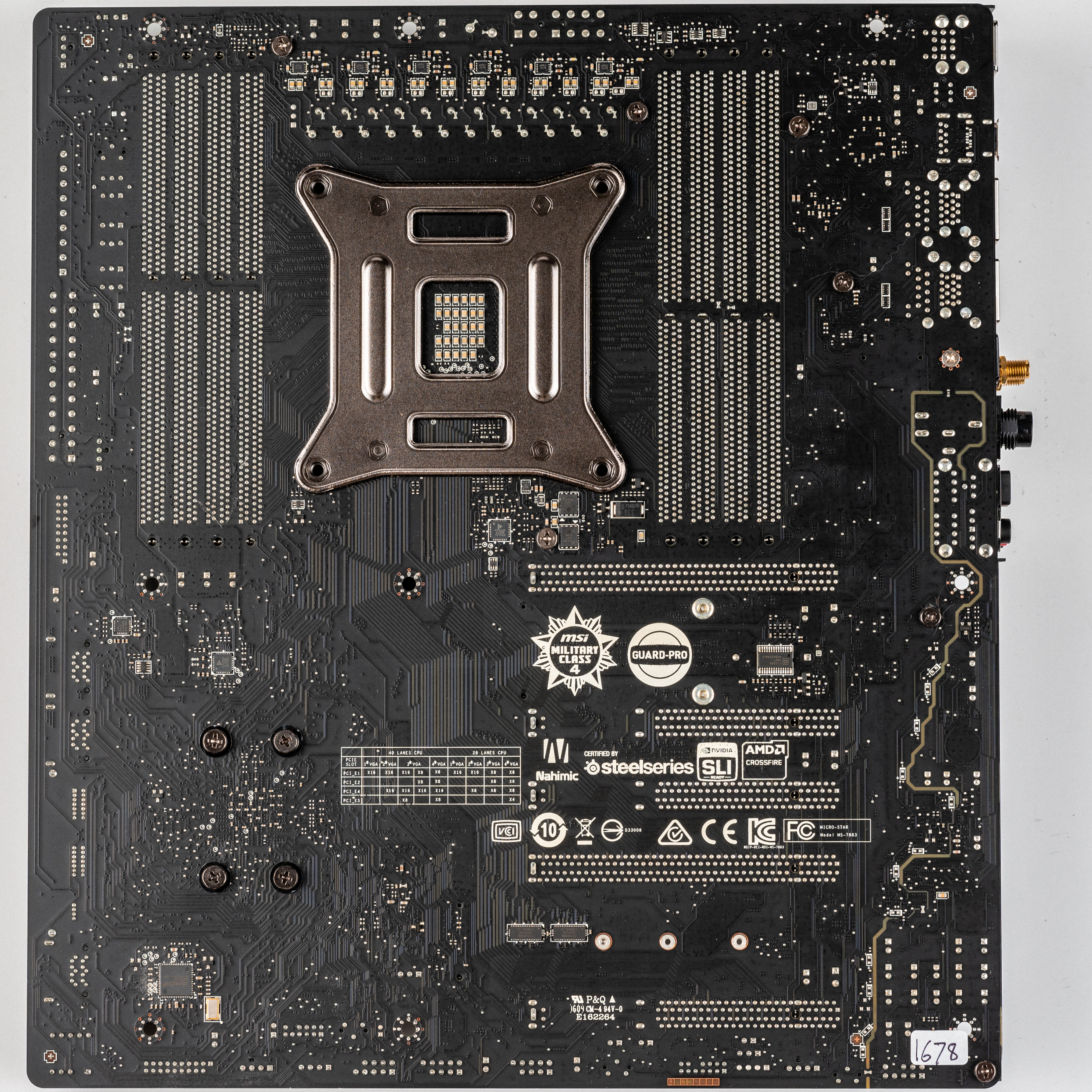

Image 2 of 5 (MSI)

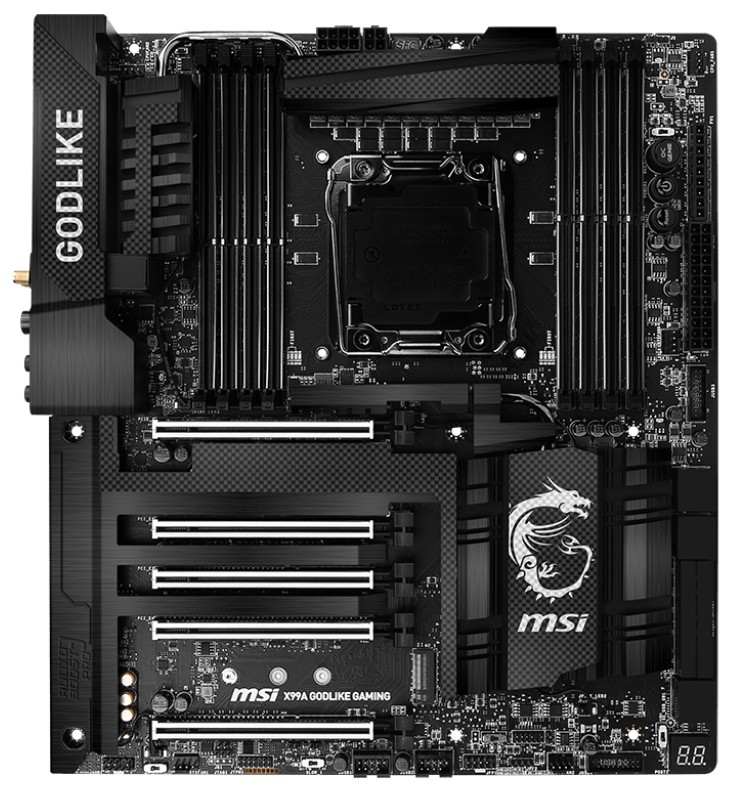

Image 3 of 5 (Motherboard Continuum)

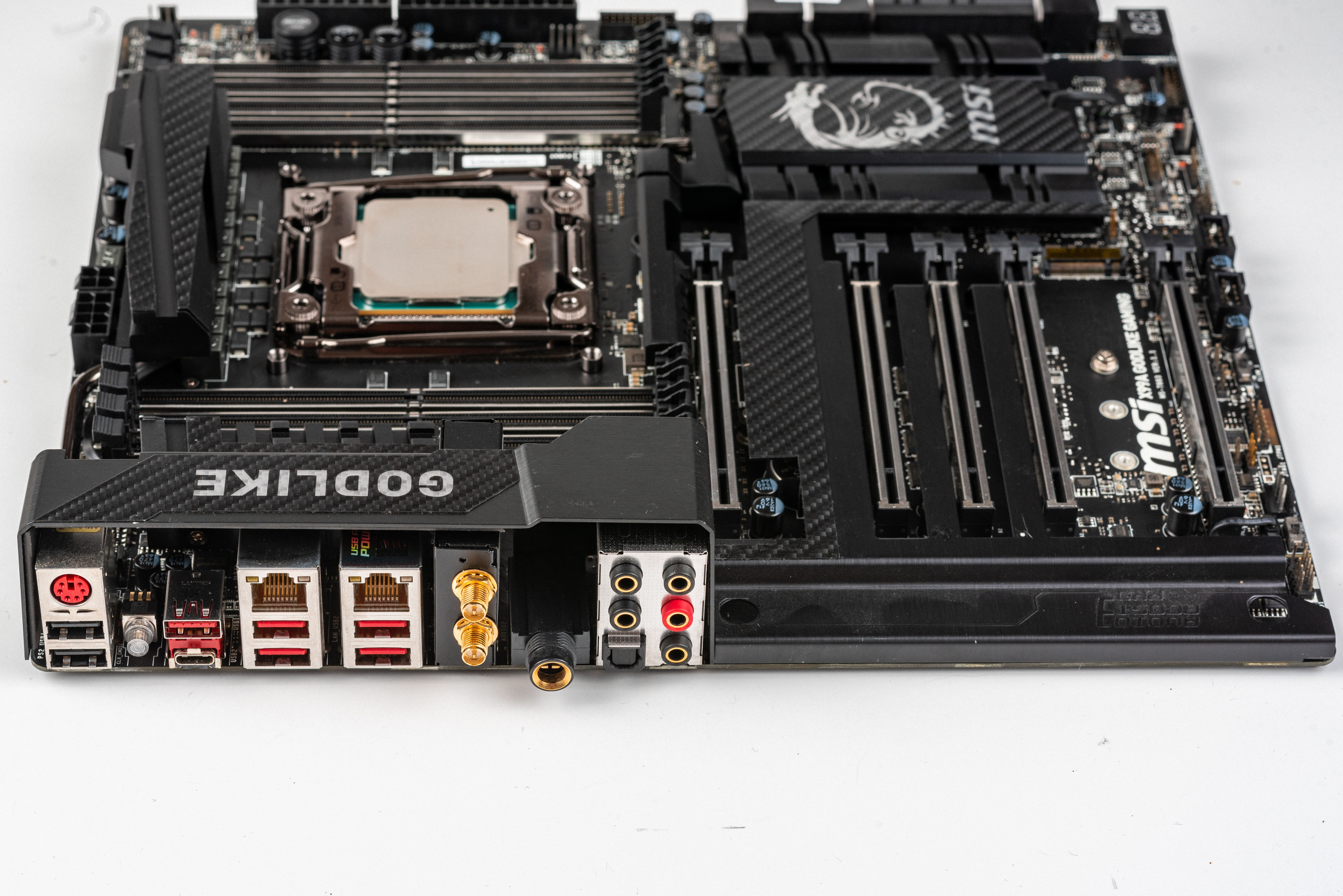

Image 4 of 5 (Motherboard Continuum)

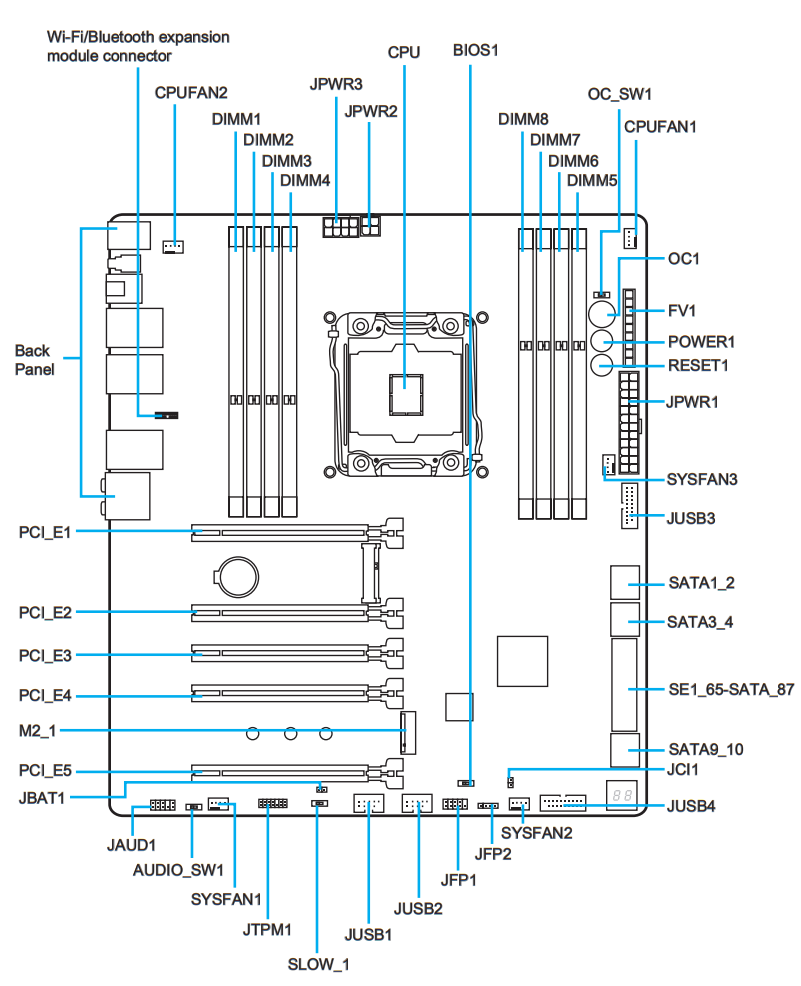

Image 5 of 5 (Motherboard Continuum)
