MSI RS480M
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

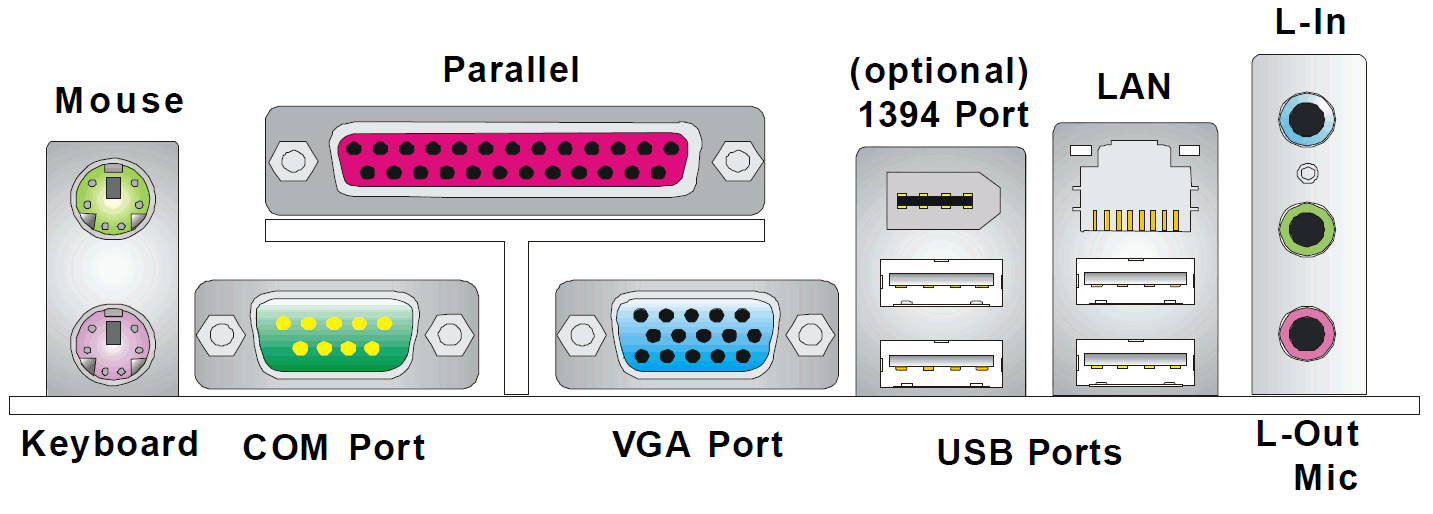

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
cardExpansion slots
3x
32-bit PCI
1x
PCIe x16
Last updated 2025-06-10T14:04:53Z
Board info score is 9.8/10
bios 5 BIOS files available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/12/2005-RS480-SB400-6A666M4HC-00
Note
eMachines OEM
Core version
v6.00PG
BIOS version
Logs

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-021406-ATHLON64-1ABZR002
Note
Core version
080012
BIOS version
Logs
POST string
63-0100-000001-00101111-060705-ATHLON64-1ABZR002
Note
Core version
080012
BIOS version
Logs
POST string
63-0100-000001-00101111-053005-ATHLON64-1ABZR002
Note
Core version
080012
BIOS version
Logs
POST string
63-0100-000001-00101111-052505-ATHLON64-1ABZR002
Note
Core version
080012
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.14.10.6525
OS support
Windows XP/2k3
Arch
x86
Size
23.9MB
Filename
Name
Version
6.14.10.6525
OS support
Windows XP/2k3
Arch
x86
Size
23.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
2002-10-01
File
Logs
Chip
Release date
2003-08-07
File
Logs
Chip
Release date
2006-09-26
File
Logs

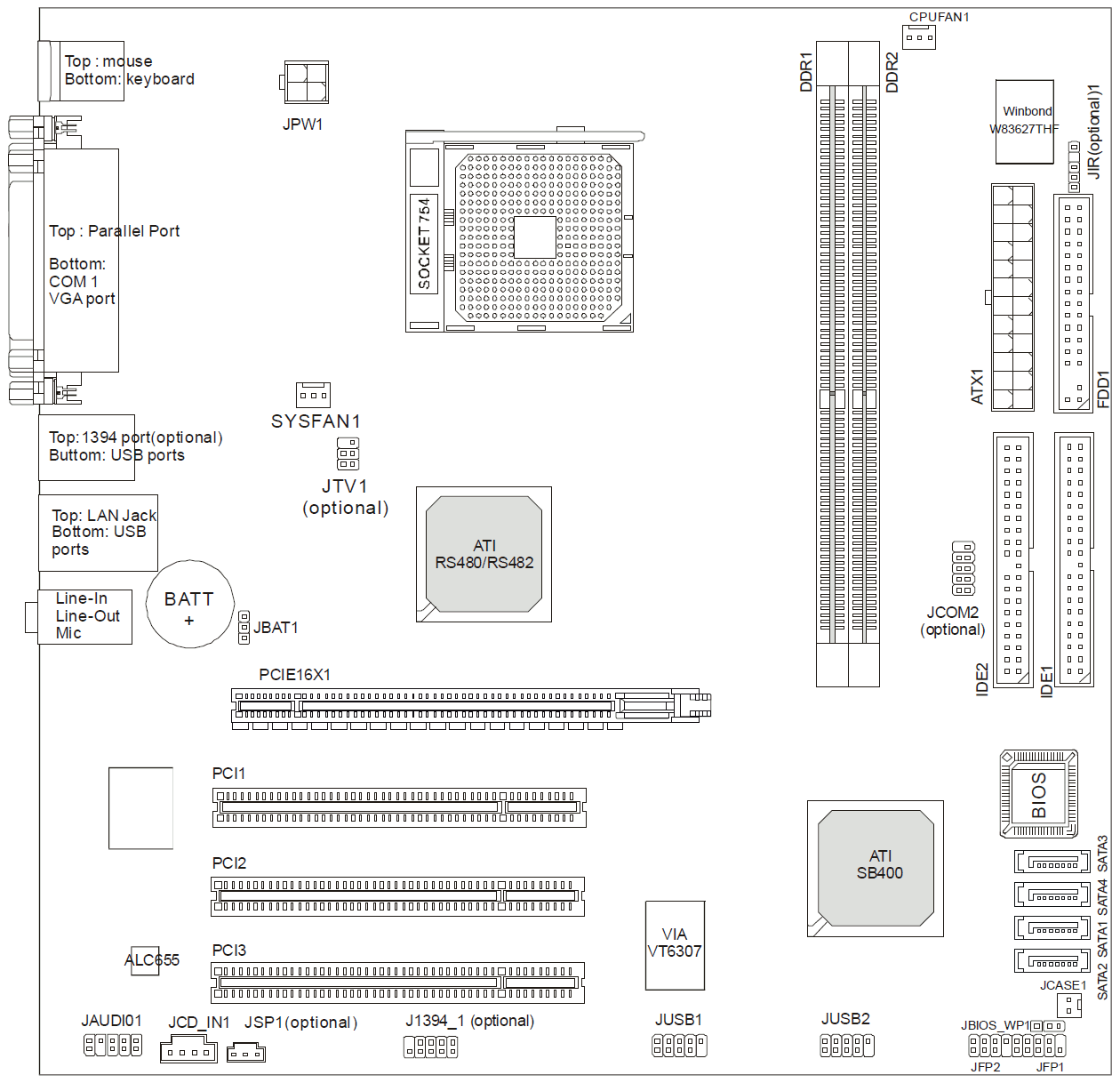

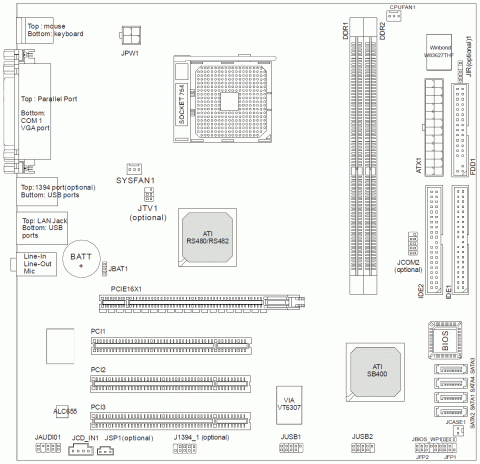

image1 Image 1 of 5 (MSI)
image2 Image 2 of 5 (MSI)

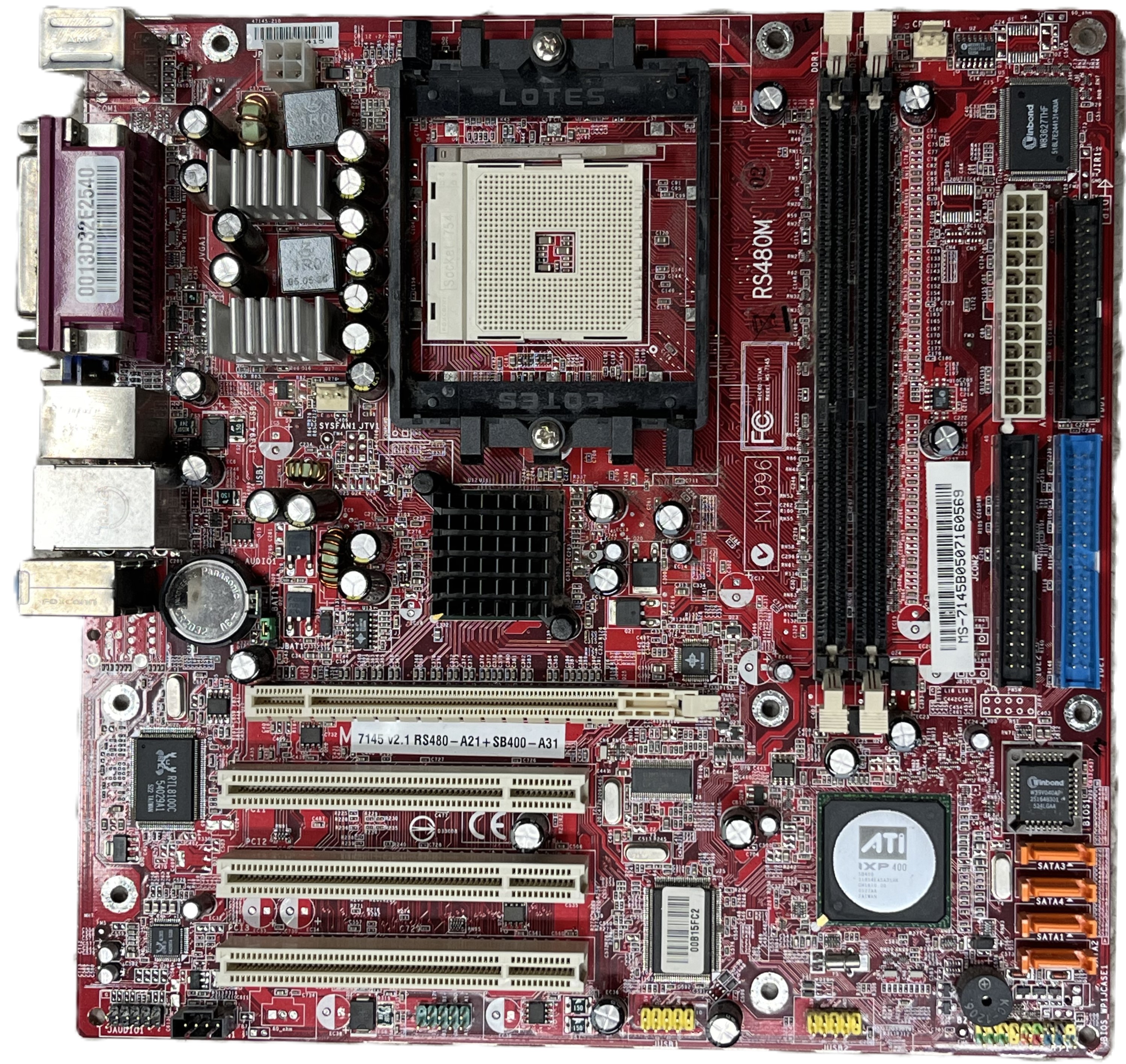

image3 Image 3 of 5 (Douglar)

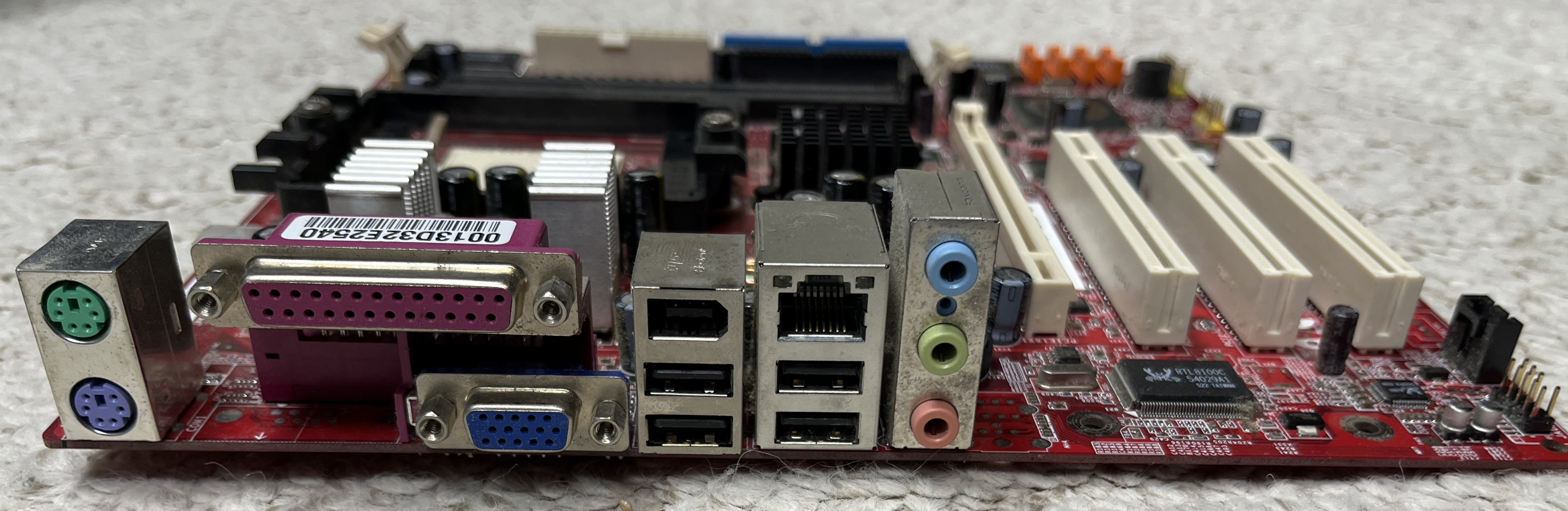

image4 Image 4 of 5 (Douglar)

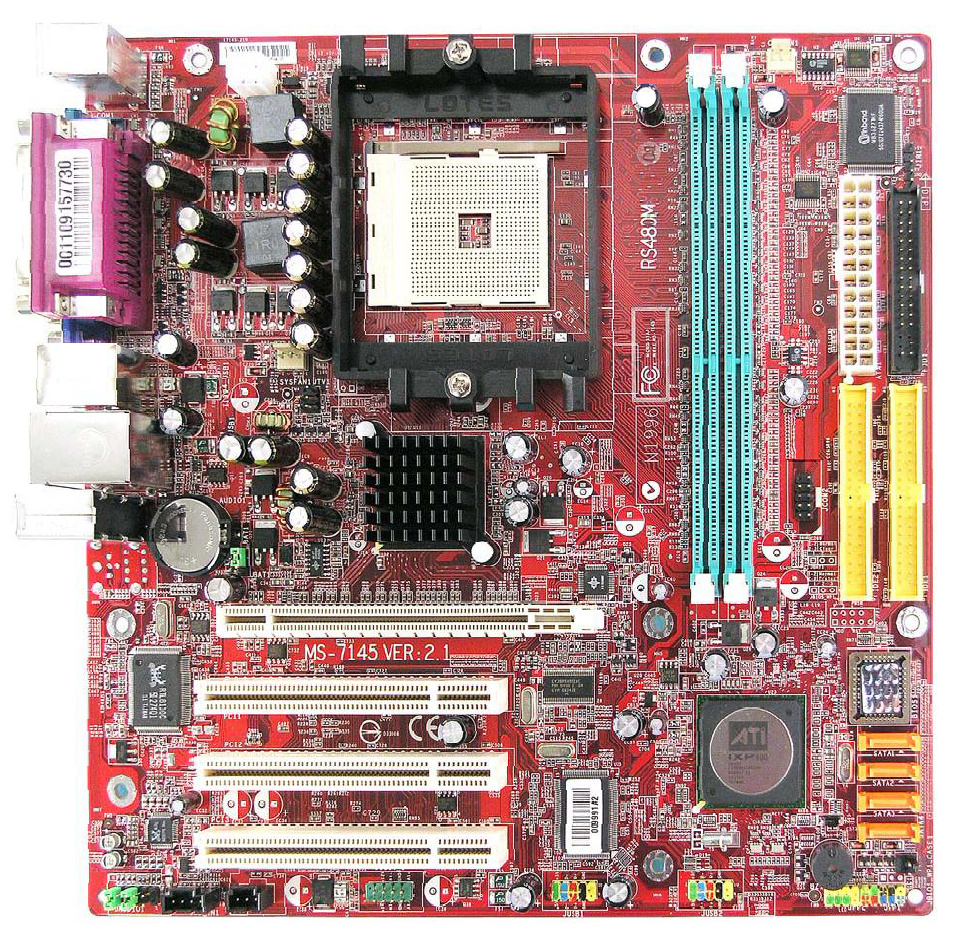

image5 Image 5 of 5 (MSI)
