MSI P965 Neo-F

Description

Chips

BIOS 10

Drivers 4

Documentation 1

Chipset

Intel P965 (Broadwater-P)

Socket

Socket T (LGA775)

FSB speeds

533MHz800MHz1066MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 220mm

Cache

None/Integrated in the CPU

Max RAM size

8GB(DDR2-800)

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

Also known as

MSI MS-7235 VER:1.1

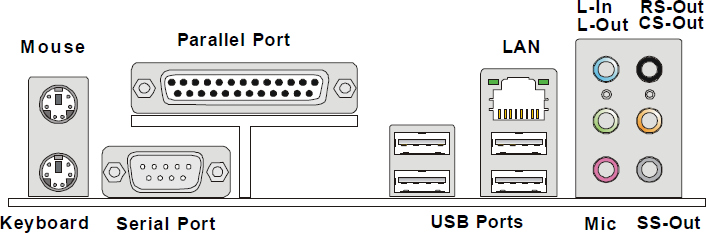

I/O ports

1x

3.5mm Audio Combo

1x

Floppy interface

1x

IDE interface

1x

IrDA

1x

PS/2 keyboard

1x

PS/2 mouse

1x

Parallel

1x

RJ-45 LAN

5x

SATA II

1x

Serial

8x

USB 2.0

Expansion slots

3x

32-bit PCI

2x

PCIe x1

1x

PCIe x16

Known issues

Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

Last updated 2025-08-06T07:43:52Z

Board info score is 9.8/10

Chips

-> Chipset part

Intel 82P965 (MCH) Intel 82801HB (ICH8)

-> Audio

Realtek ALC883 (High Definition Audio)

-> Clock Synth / PLL

ICS ICS9LPRS510EGLF

-> Network

Realtek RTL8110SC (PCI Gigabit Ethernet)

-> SATA/IDE ctrl.

JMicron JMB361 (PCIe to SATA II & PATA HC)

-> Super I/O

Winbond W83627EHG

CPU family support

10 BIOS files available

Award - 10 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

06/13/2008-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.11 061308

Core version

6.00PG

BIOS version

Logs

POST string

07/05/2007-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.10 070507

Core version

6.00PG

BIOS version

Logs

POST string

05/11/2007-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.9 051107

Core version

6.00PG

BIOS version

Logs

POST string

03/27/2007-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.8 032707

Core version

6.00PG

BIOS version

Logs

POST string

02/15/2007-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.7 021507

Core version

6.00PG

BIOS version

Logs

POST string

12/17/2006-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.6 121706

Core version

6.00PG

BIOS version

Logs

POST string

08/18/2006-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.5 081806

Core version

6.00PG

BIOS version

Logs

POST string

08/08/2006-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.4 080806

Core version

6.00PG

BIOS version

Logs

POST string

07/24/2006-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.3 072406

Core version

6.00PG

BIOS version

Logs

POST string

07/17/2006-Broadwater-6A79LM4CC-00

Note

W7235IMS V1.2 071706

Core version

6.00PG

BIOS version

Logs

4 drivers available

Name

Version

OS support

Arch

Size

Filename

Name

JMB36x Windows driver WHQL

Version

R1.17.39

OS support

Windows 2000

Windows Vista

Windows XP/2k3

Arch

x86 , x86-64

Size

3.8MB

Filename

jmb36x-windrv-r1-17-39whql.zip

Name

Realtek HD audio driver

Version

R2.74

OS support

Windows 2000

Windows 7

Windows Vista

Windows XP/2k3

Arch

Size

30.7MB

Filename

0001-wdm-r274.zip

1 board document available

Release date

File

Logs

Release date

2006-06

File

MS-7235 V1.0 manual

Logs

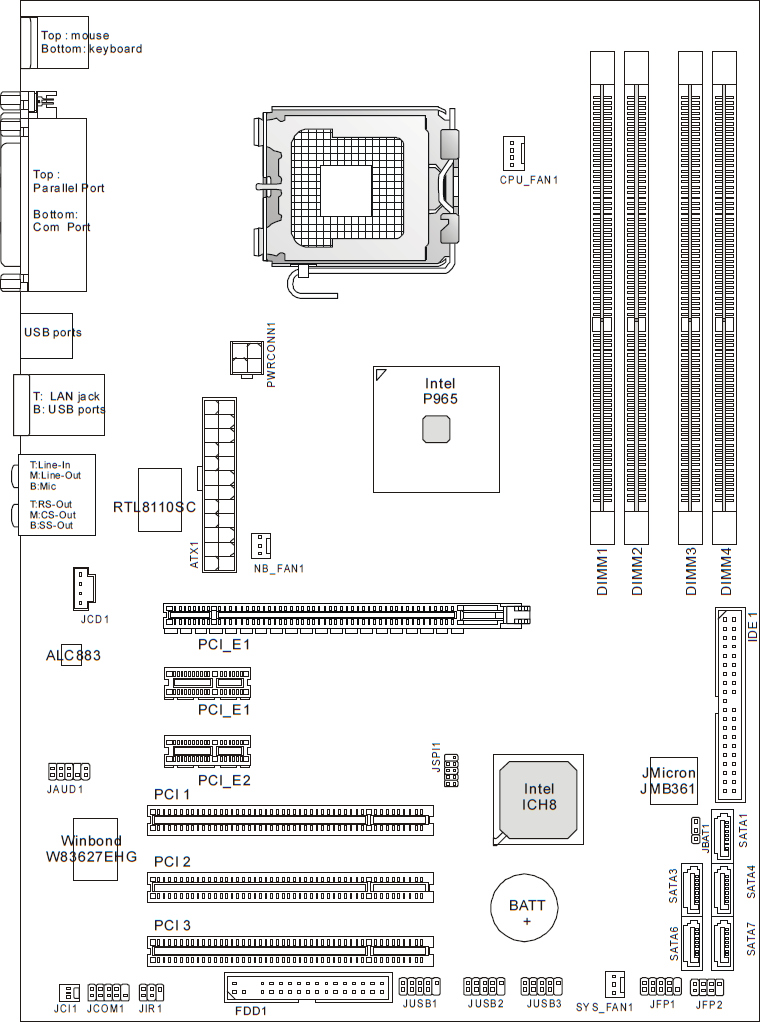

Image 1 of 4 (MSI)

Image 2 of 4 (VanoRu)

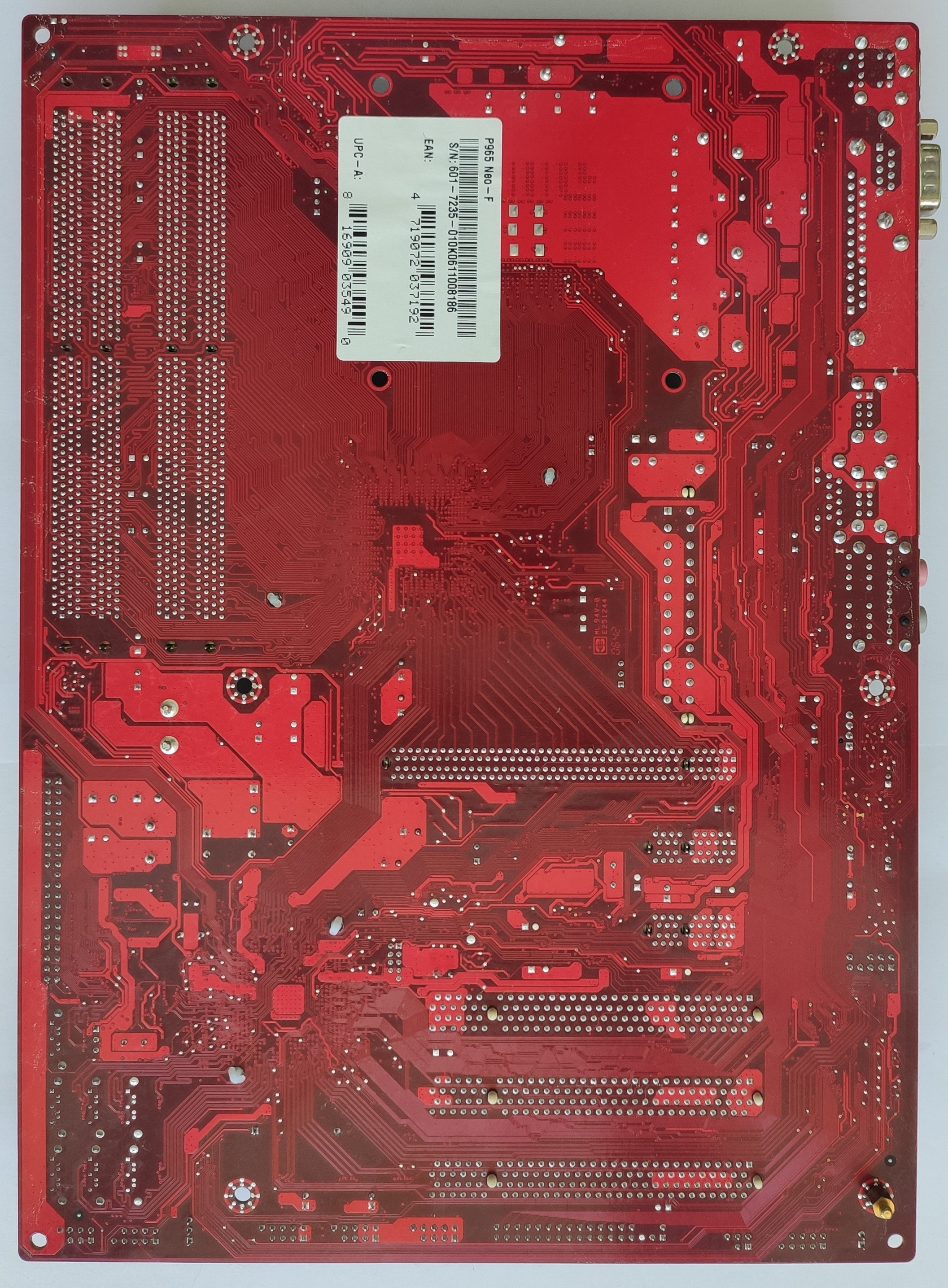

Image 3 of 4 (VanoRu)

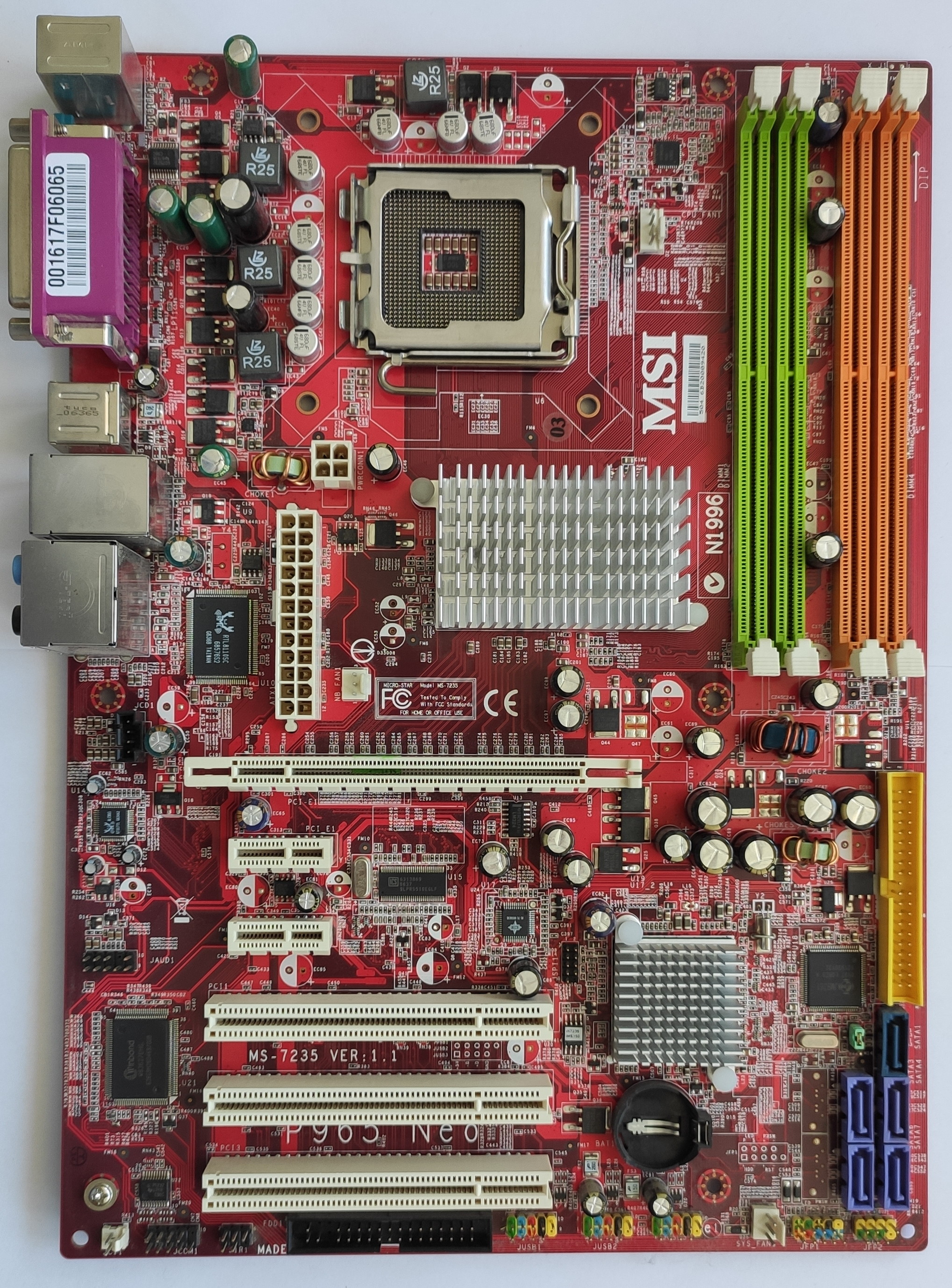

Image 4 of 4 (MSI)
