MSI MS-7448
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
1x
Serial
6x
USB 2.0
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Optional DVI

Last updated 2025-10-27T09:15:50Z
Board info score is 5.9/10
chip Chips
-> Chipset part
Intel BD82P55 (PCH)
-> Audio
Realtek ALC662 (High Definition Audio)
-> Network
Broadcom BCM57760
-> Super I/O
Fintek F71882FG
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

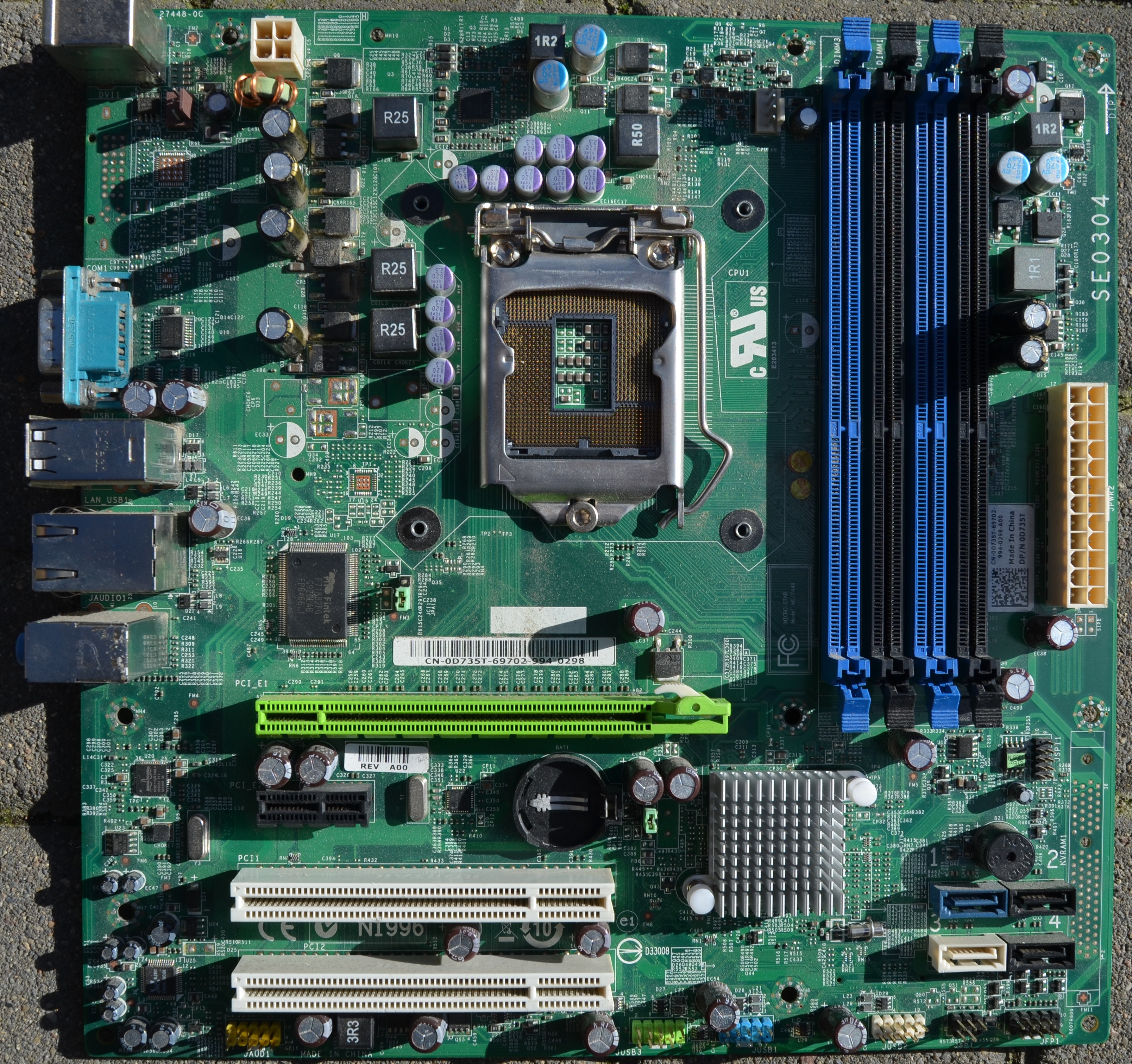

image1 Image 1 of 2 (kotelstudios)

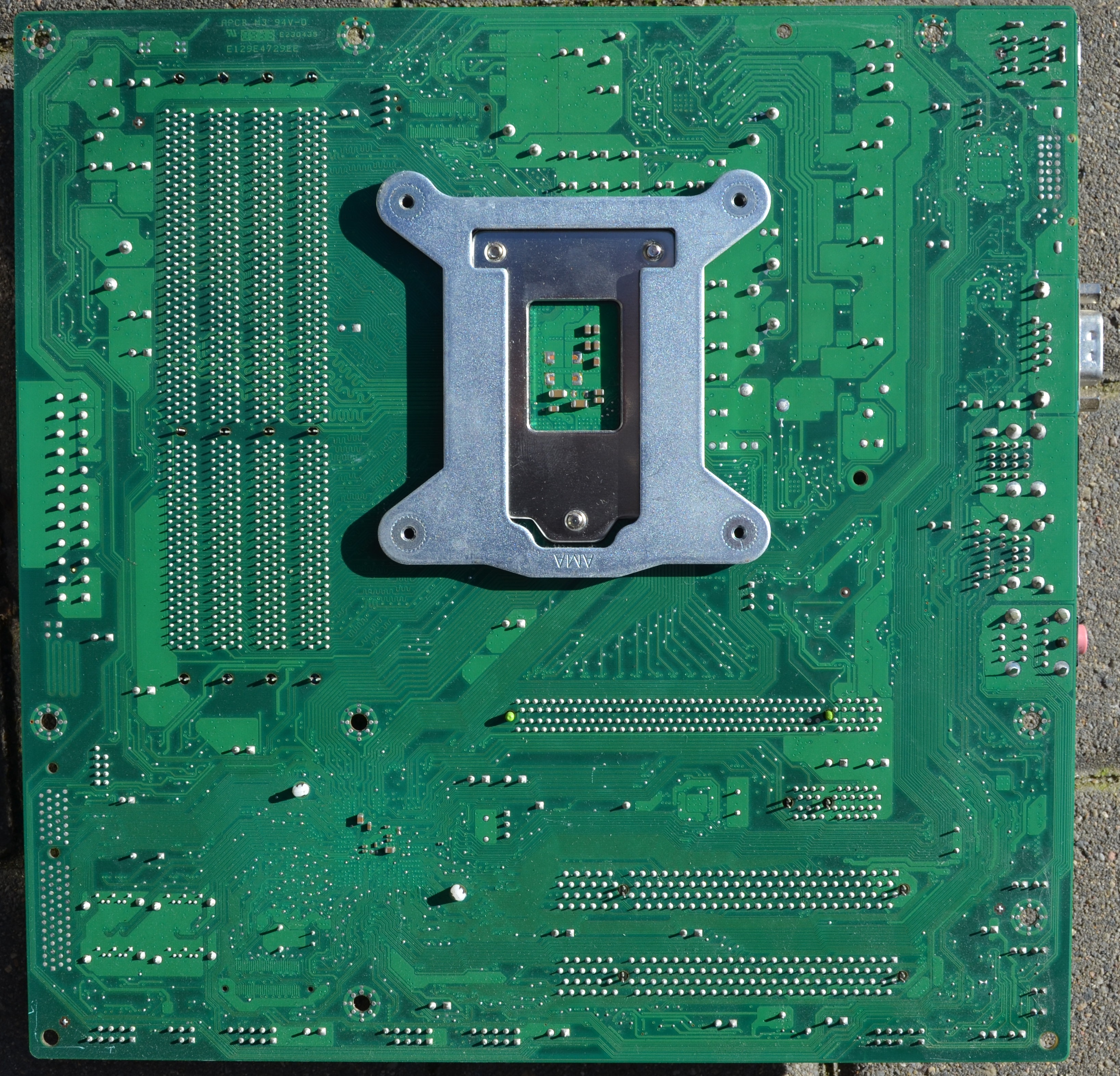

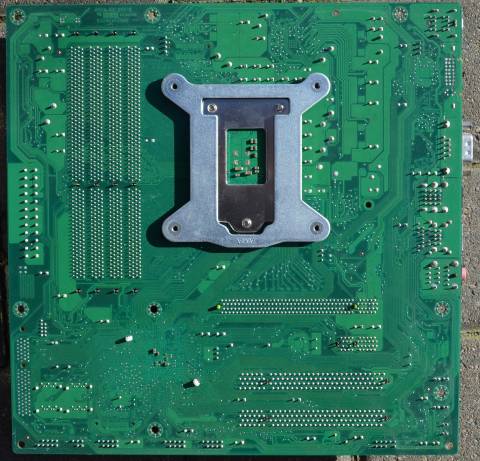

image2 Image 2 of 2 (kotelstudios)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
