MSI MS-6378 Ver 2.x
Chipset
Socket
FSB speeds 200MHz266MHz
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size8MB
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type SDR UDIMM
PSU connector
Empty
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
Serial
4x
USB 1.x
1x
VGA
Expansion slots1x
16-bit ISA
3x
32-bit PCI
1x
CNR
Notes
Realtek 8100 network. Small mosfet near ram is IRU 1050 CP. VRM mosfets are 80N03S KT135J.
Last updated 2024-05-13T12:53:15Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
CPU family support
5 BIOS files available
Award - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Arch
Size
8.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 Warp 4.x
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS
OS/2 Warp 4.x
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
973.7KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

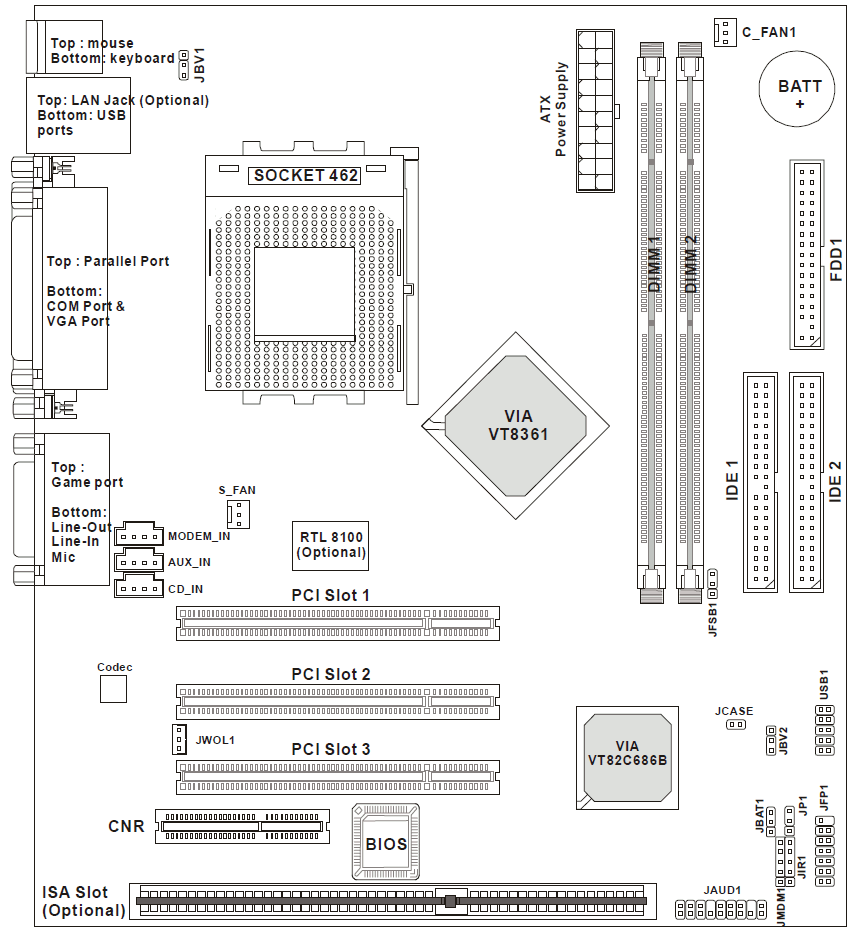

Image 1 of 2 (evasive)

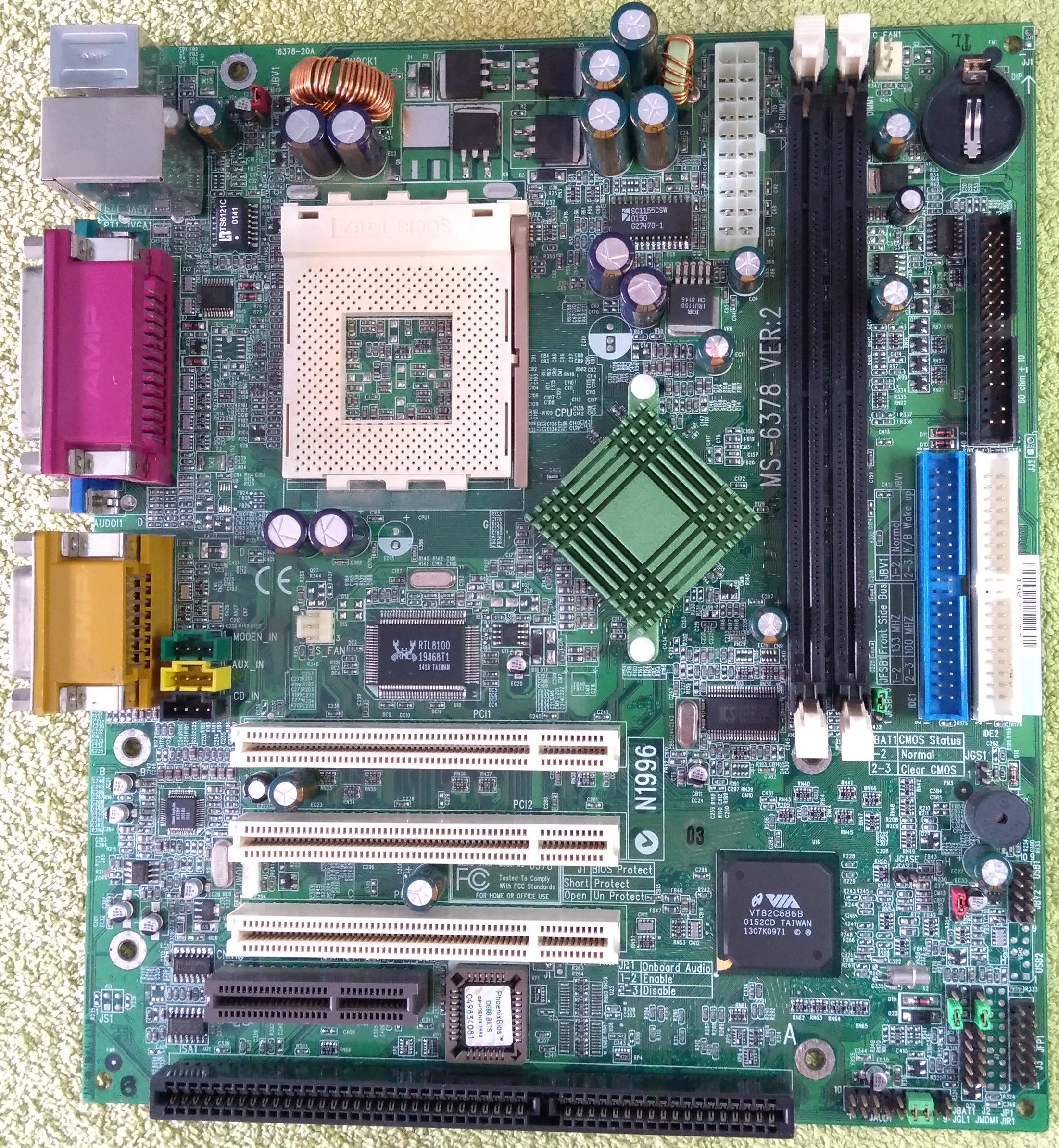

Image 2 of 2 (Nexxen)
