MSI MS-6316 (IR3)

Description

Chips

BIOS 1

Drivers 81

Documentation 0

Chipset

AMD 750 (Irongate)

Socket

Slot A (Slot-242)

FSB speed

200MHz

Form factor

microATX (max 244 x 244 mm)

Dimensions

305mm x 192mm

Max VRAM size

32MB

Cache

None/Integrated in the CPU

Max RAM size

512MB(PC100)

RAM type

SDR UDIMM

PSU connector

ATX 1.x (20-pin ATX)

Also known as

Time / Tiny 500 series system board, marked MS-6316 VER:1

I/O ports

1x

3.5mm Audio Combo

1x

Floppy interface

1x

Gameport

2x

IDE interface

1x

PS/2 keyboard

1x

PS/2 mouse

1x

Parallel

2x

Serial

4x

USB 1.x

1x

VGA

Expansion slots

3x

32-bit PCI

Notes

Time/Tiny list this as "MSI 6136" (obviously a typing error)

Last updated 2025-06-08T17:15:36Z

Board info score is 8.6/10

Chips

-> Chipset part

AMD 751 (System Controller (Irongate)) AMD 756 (Peripheral Bus Controller (Viper))

-> Audio

Creative ES1373 (AudioPCI)

-> Super I/O

Winbond W83977EF

-> Video

Nvidia RIVA TNT2 M64 (NV6)

CPU family support

K7 - Athlon XP/M (*)

1 BIOS file available

AMI - 1 entry

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

62-1200-000000-00101111-071595-IRONGATE-1AMD75X0

Note

Core version

071595

BIOS version

Logs

81 drivers available

Name

Version

OS support

Arch

Size

Filename

Name

AMD 700 series IRQ Driver

Version

1.11

OS support

Windows 9x

Arch

x86

Size

180.2KB

Filename

amdirq-111-win98.exe

Name

AMD 700 series Power Management Setup

Version

1.22s

OS support

Windows 9x

Arch

x86

Size

423.6KB

Filename

powmgmt-122s-win98-me-2000.exe

Name

AMD 700/800 series Chipset Driver Pack

Version

1.30

OS support

Windows 2000

Windows 9x

Windows XP/2k3

Arch

x86

Size

2.7MB

Filename

amddrvpk-130-win98-me-2000-xp.exe

Name

AMD 751 AGP miniport driver 2k

Version

4.45

OS support

Windows 2000

Arch

Size

143.7KB

Filename

Name

AMD 751 AGP miniport driver 98

Version

4.45

OS support

Windows 9x

Arch

Size

120.2KB

Filename

Name

Creative AudioPCI ES137x VXD driver

Version

4.06.1154

OS support

Windows 9x

Windows NT 4.0

Arch

Size

20.9MB

Filename

Name

Creative AudioPCI ES137x WDM driver

Version

5.12.01.4107

OS support

Windows 2000

Windows 9x

Arch

x86

Size

2.8MB

Filename

Name

NVIDIA Detonator Display Driver (Guru3D)

Version

45.23

OS support

Windows 9x

Arch

x86

Size

9.3MB

Filename

Name

NVIDIA Detonator Display Driver (WHQL, old .cat)

Version

40.72

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

12.3MB

Filename

40-72-winxp-whql.exe

Name

NVIDIA Detonator Display Driver (w/NV1A)

Version

28.32

OS support

Windows 9x

Arch

x86

Size

8MB

Filename

28-32-winme.exe

Name

NVIDIA Detonator Display Driver (w/NV1A/4/25)

Version

28.32

OS support

Windows NT 4.0

Arch

x86

Size

7.7MB

Filename

28-32-winnt4.exe

Name

NVIDIA Detonator Display Driver (w/NV1A/Ti4200)

Version

28.32

OS support

Windows 9x

Arch

x86

Size

8MB

Filename

28-32-win9x-nw.exe

Name

NVIDIA Detonator Display Driver (w/Ti 4200)

Version

28.32

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

8.2MB

Filename

28-32-winxp-nw.exe

Name

NVIDIA ForceWare Display Driver (WHQL)

Version

56.64

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

10MB

Filename

56-64-winxp2k-english-whql.exe

No board documents available

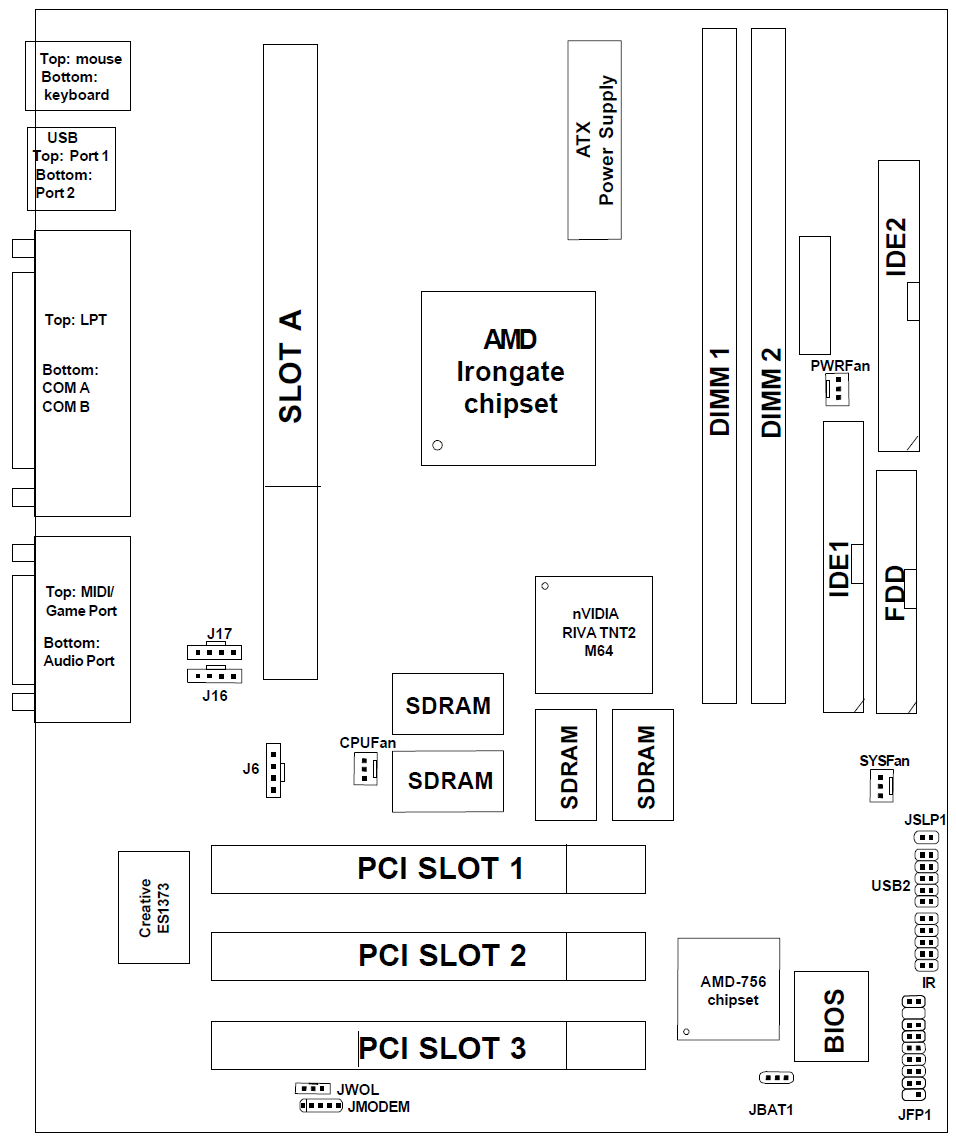

Image 1 of 3 (MSI)

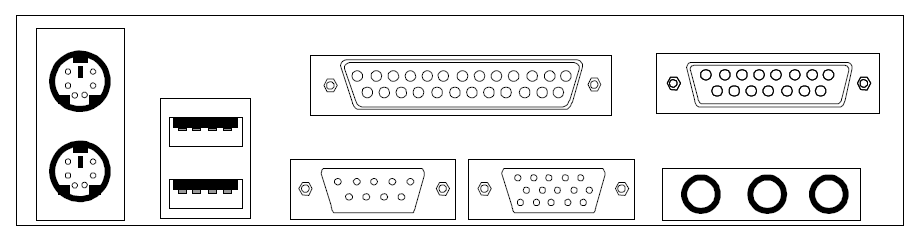

Image 2 of 3 (eddiegi686)

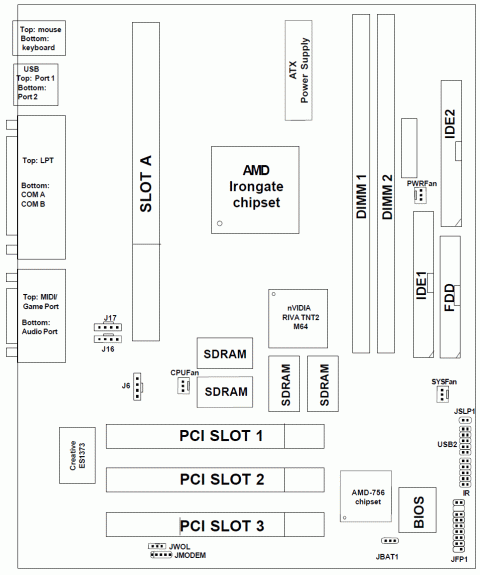

Image 3 of 3 (MSI)
