MSI MS-6117
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speeds
66MHz68MHz75MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 186mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
SB_Link
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
notes Notes

There are two variants with different size flash chips (1MBit/128KB and 2MBit/256KB), each of which can only be flashed with their respective BIOS versions (each noted in the BIOS download section)

The Chinese and Japanese AMIBIOS versions can be switched to English by pressing the F1 key in the Setup program. They unusually display the POST and Setup screens in 640x480 resolution.

Last updated 2025-12-29T13:04:08Z
Board info score is 9.6/10
bios 30 BIOS files available

vendor AMI - 14 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
61-0107-001169-00111111-071595-440LX
Note
1MBit - Traditional Chinese version
Core version
071595
BIOS version
Logs
POST string
61-1204-001169-00111111-071595-440LX
Note
1MBit - Simplified Chinese version
Core version
071595
BIOS version
Logs
POST string
61-0303-009999-00111111-071595-440LX
Note
1MBit - Simplified Chinese version
Core version
071595
BIOS version
Logs
POST string
61-0208-001169-00111111-071595-440LX
Note
1MBit - Latest AMIBIOS
Core version
071595
BIOS version
Logs
POST string
61-1214-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0821-001169-00111111-071595-440LX-1440L000-H
Note
1MBit - Third party dump
Core version
071595
BIOS version
Logs
POST string
61-0805-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0717-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0616-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0504-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0403-001169-00111111-071595-440LX
Note
1MBit
Core version
071595
BIOS version
Logs
POST string
61-0212-001169-00111111-071595-440LX
Note
1MBit - Supports HDDs up to 128GB
Core version
071595
BIOS version
Logs
POST string
61-0205-001169-00111111-071595-440LX
Note
1MBit - Japanese version
Core version
071595
BIOS version
Logs
POST string
61-1021-001169-00111111-071595-440LX
Note
Core version
071595
BIOS version
1.1
Logs

vendor Award - 17 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/16/1998-i440LX-W977-2A69JM49C-00
Note
1MBit - Viglen OEM
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i440LX-W977-2A69JM49C-00
Note
1MBit - Viglen OEM
Core version
4.51PG
BIOS version
Logs
POST string
02/12/98-i440LX-W977-2A69JM49C-00
Note
1MBit - Viglen OEM
Core version
4.51PG
BIOS version
Logs
POST string
11/19/97-i440LX-W977-2A69JM49C-00
Note
1MBit - Viglen OEM
Core version
4.51PG
BIOS version
Logs
POST string
11/19/97-i440LX-W977-2A69JM49C-00
Note
1MBit - Viglen OEM
Core version
4.51PG
BIOS version
Logs
POST string
11/19/97-i440LX-W977-2A69JM49C-00
Note
1MBit - FSC OEM
Core version
4.51PG
BIOS version
Logs
POST string
01/27/1999-i440LX-W977-2A69JM49C-00
Note
2MBit - LG IBM OEM
Core version
4.51PG
BIOS version
Logs
POST string
10/10/2003-i440LX-W977-2A69JM4DC-00
Note
2MBit - Patched for 128GB HDD with other fixes, supports Coppermine & Tualatin
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i440LX-W977-2A69JM4DC-00
Note
2MBit - Latest AwardBIOS
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i440LX-W977-2A69JM49C-00
Note
1MBit - Latest AwardBIOS
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
POST string
06/16/1998-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
POST string
02/12/98-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
POST string
02/12/98-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
POST string
07/29/98-i440LX-W977-2A69JM49C-00
Note
2MBit
Core version
4.51PG
BIOS version
Logs
POST string
11/19/97-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
POST string
08/27/97-i440LX-W977-2A69JM49C-00
Note
1MBit
Core version
4.51PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-03
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

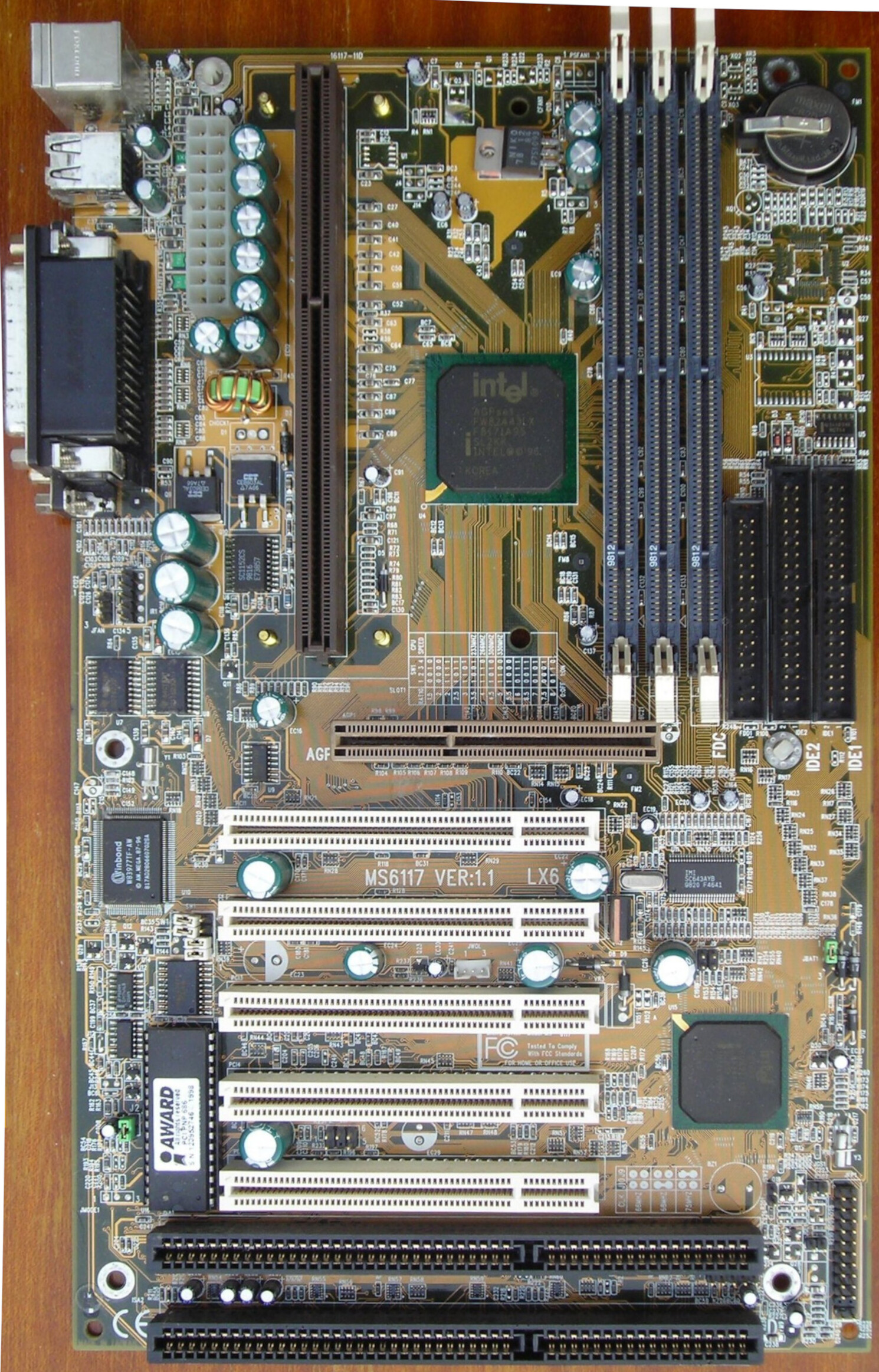

image1 Image 1 of 5 (Microhouse)

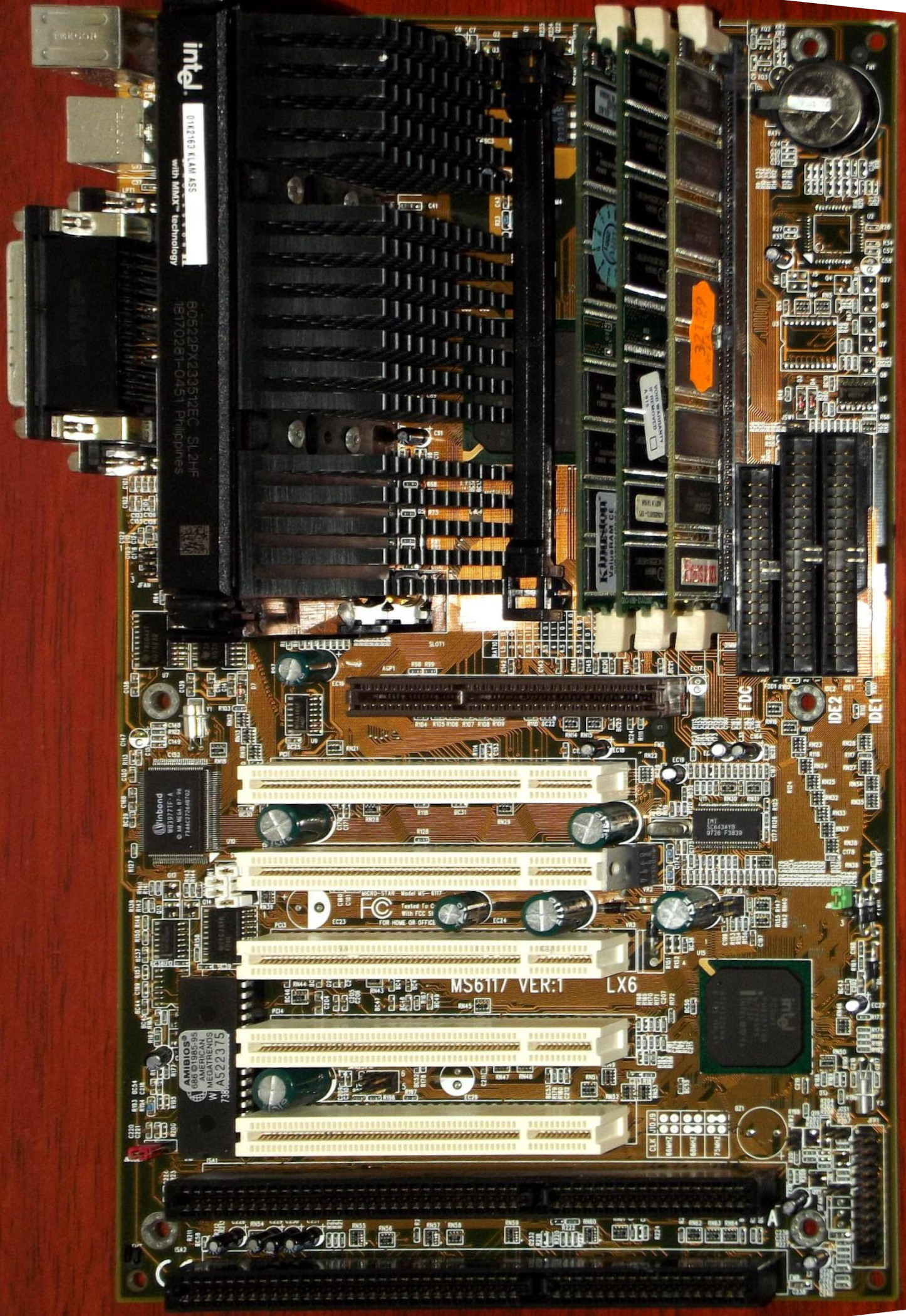

image2 Image 2 of 5 (Carlos S. M.)

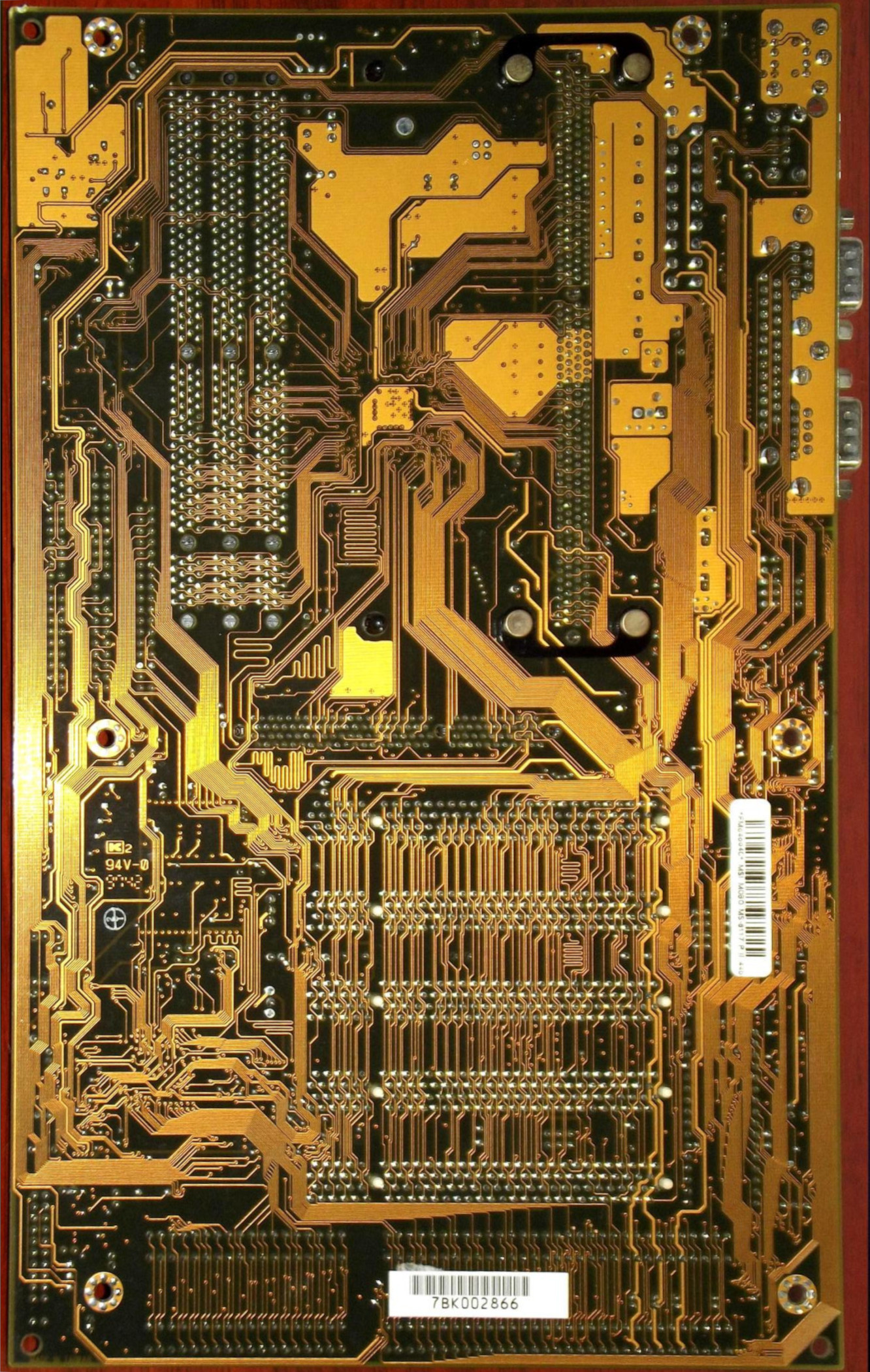

image3 Image 3 of 5 (Computer Retro)
image4 Image 4 of 5 (mR_Slug)
image5 Image 5 of 5 (Computer Retro)
