MSI KT6 Delta
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
3GB
RAM type DDR UDIMM
PSU connector
Also known as
- MSI MS-6590 VER:2
I/O ports1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
5x
32-bit PCI
Notes
Known variants:
- FIS2R (With extra PROMISE SATA controller)
- FIR (Without extra PROMISE SATA controller)
Last updated 2025-05-22T06:39:39Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> FireWire ctrl.
-> Network
-> Power Management
-> Signal transmitter/receiver
-> Super I/O
CPU family support
7 BIOS files available
AMI - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1021-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0728-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0210-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0115-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0905-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0721-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
POST string
63-0710-009999-00101111-040201-VIA_K7-KT600200
Note
Core version
070010
BIOS version
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
, x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000
Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000
Windows NT 4.0
Windows Vista
Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs

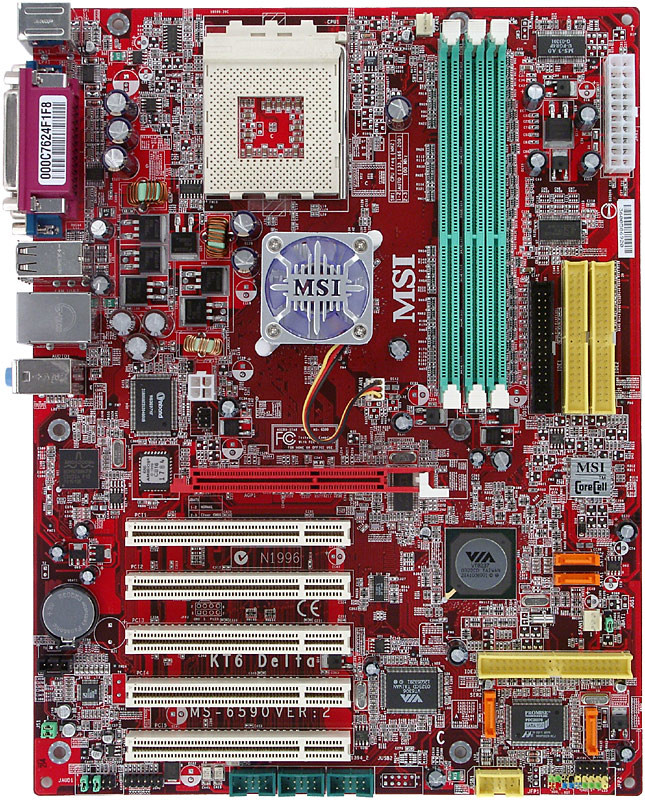

Image 1 of 2 (evasive)
Image 2 of 2 (iXBT LABS)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
