MSI K9N2 SLI Platinum
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as

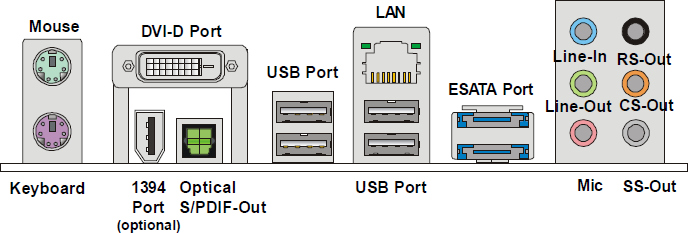

connI/O ports
1x
DVI
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
2x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
notes Notes
  • NVidia Hybrid SLI feature is only supported in Windows Vista with specific video cards and driver versions.
Last updated 2025-05-15T19:29:54Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-102510-ATHLON64-1ADYW007
Note
A7374NMS V3.9 102510
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-060810-ATHLON64-1ADYW007
Note
A7374NMS V3.8 060810
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-011510-ATHLON64-1ADYW007
Note
A7374NMS V3.7 011510
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-111709-ATHLON64-1ADYW007
Note
A7374NMS V3.6 111709
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-050609-ATHLON64-1ADYW007
Note
A7374NMS V3.5 050609
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-122308-ATHLON64-1ADYW007
Note
A7374NMS V3.3 122308
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-080208-ATHLON64-1ADYW007
Note
A7374NMS V3.2 080208
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-060308-ATHLON64-1ADYW003
Note
A7374NMS V3.1 060308
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2008-01-10
File
Logs
Chip
Release date
2008-11-28
File
Logs

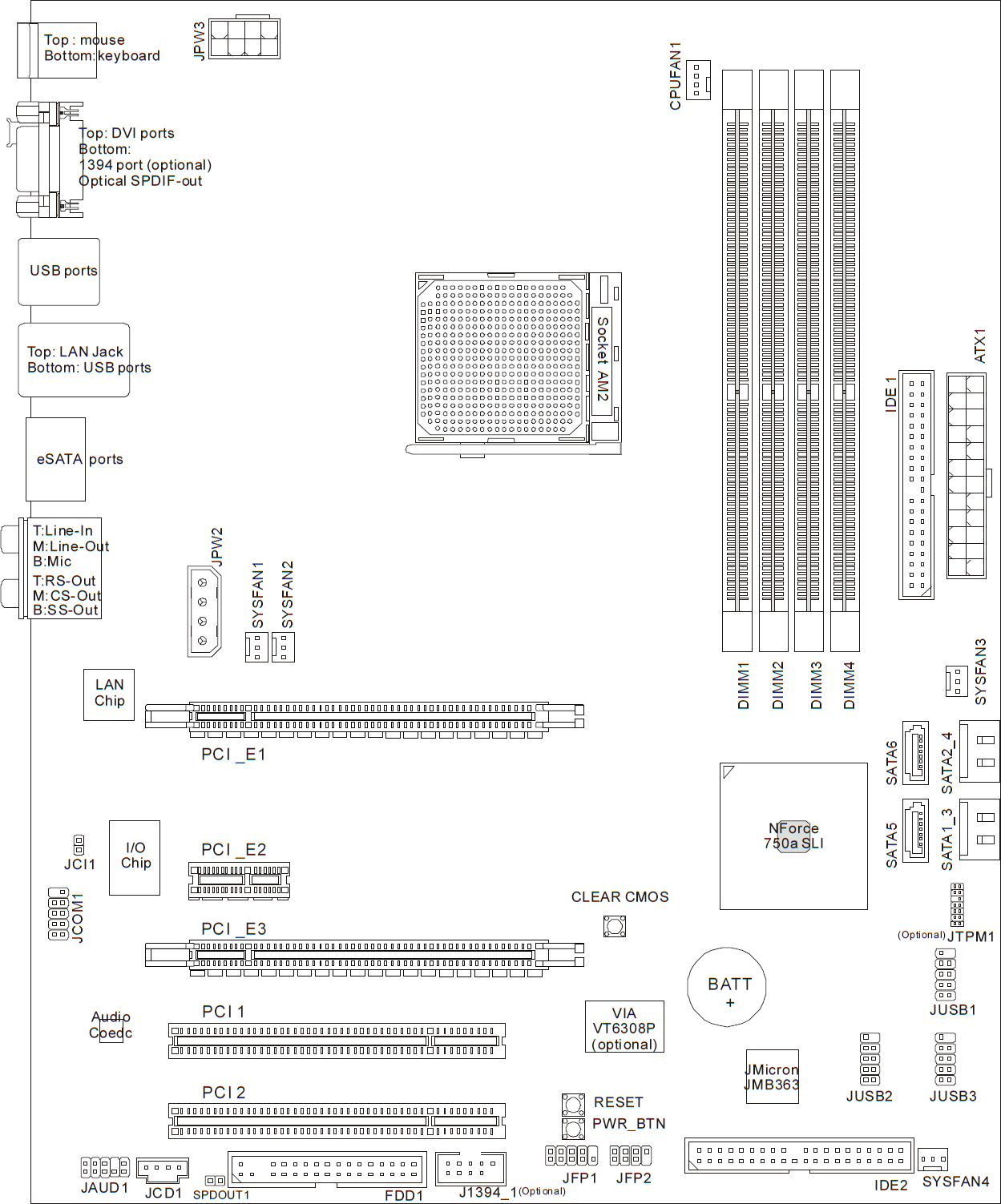

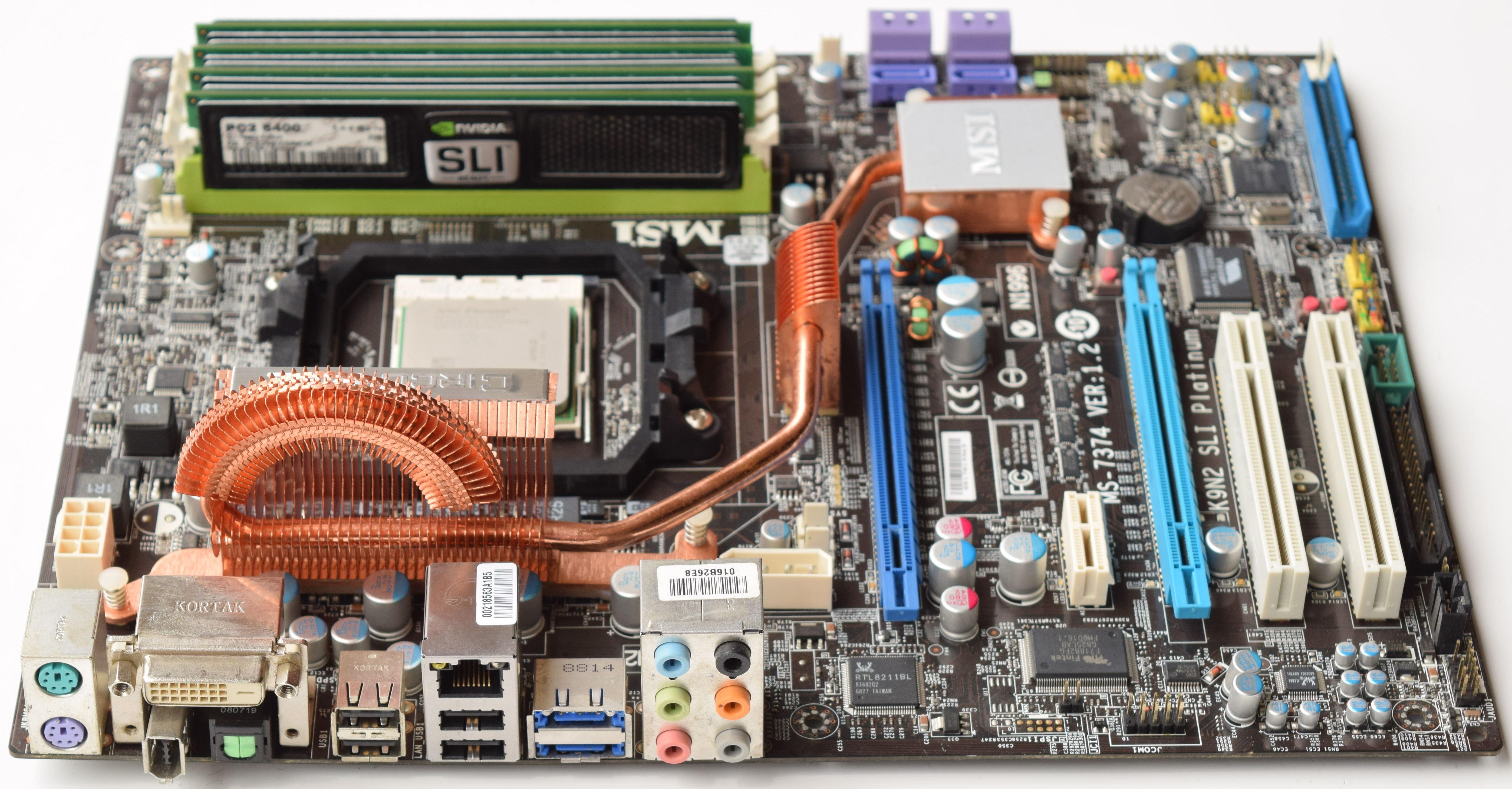

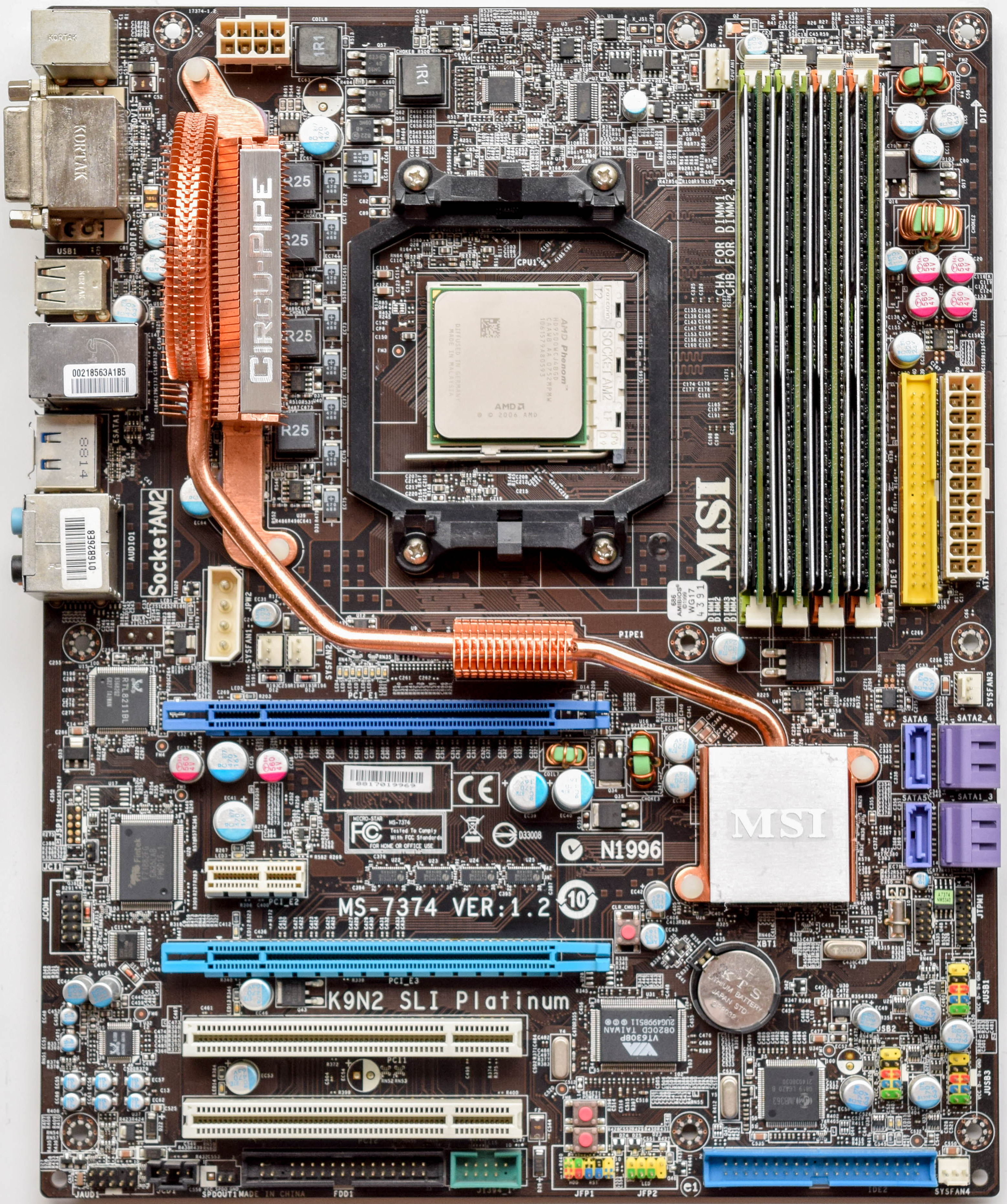

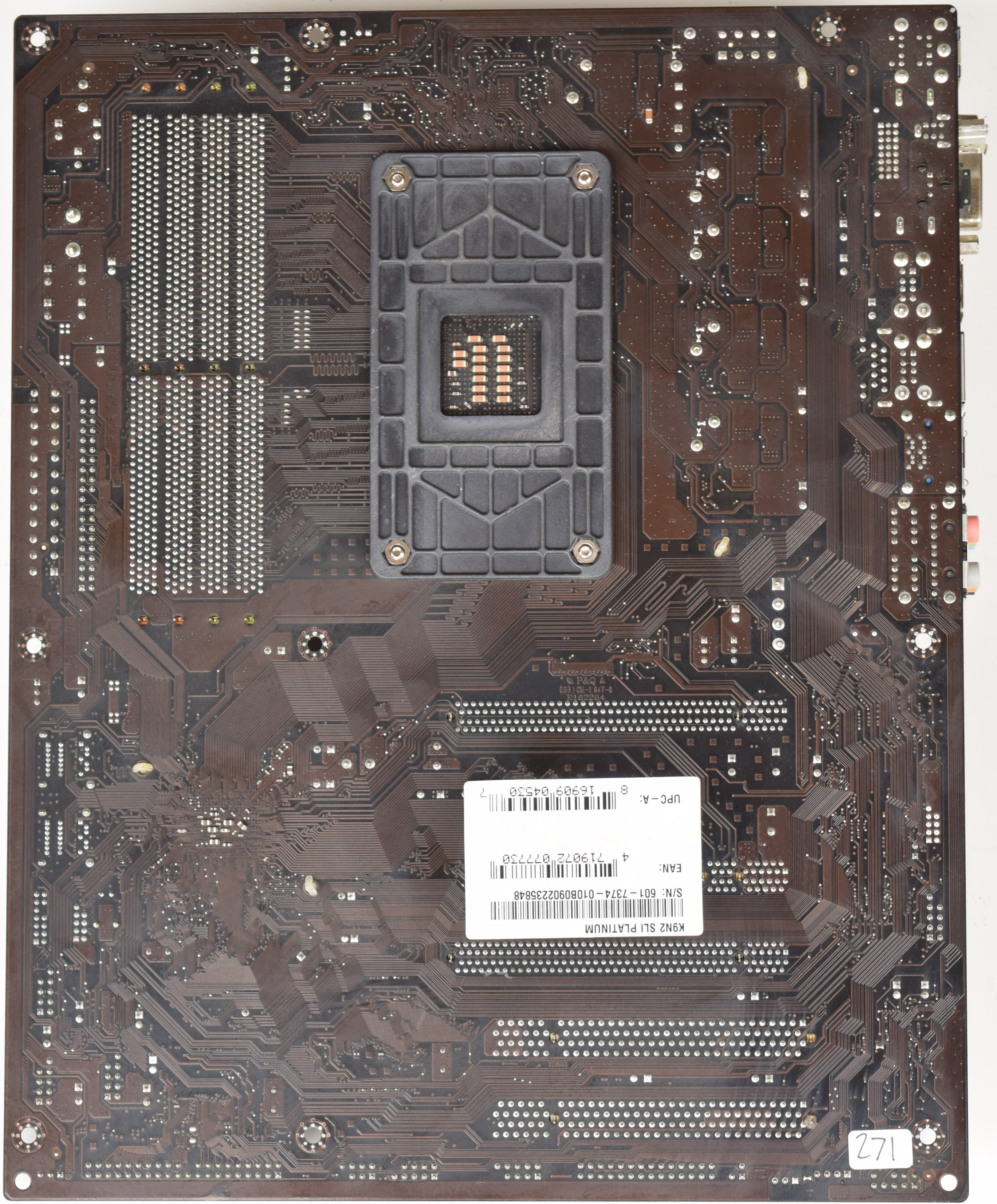

image1 Image 1 of 5 (MSI)
image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (MSI)
