MSI K8N Neo4 Platinum (MS-7125 VER:3.A)
Logs
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
4 GB
RAM type DDR UDIMM
PSU connector

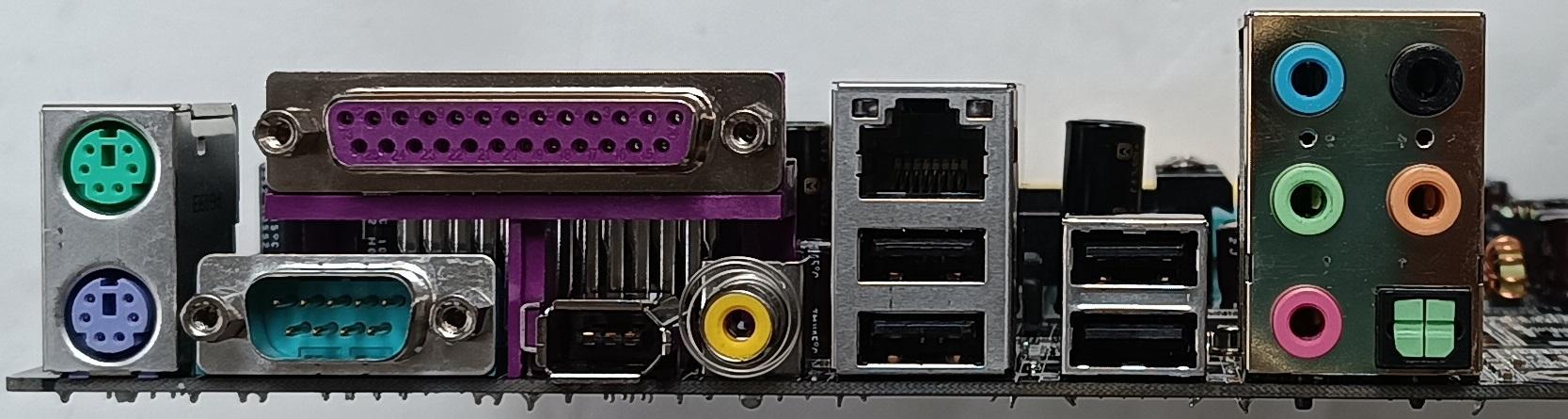

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA I
1x
Serial
10x
USB 2.0
Expansion slots4x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Notes
F version:
- nForce4 chipset
- SATA I (1.5Gb/s)
- no IEEE1394/Firewire
FI version (and Platinum):
- nForce4 Ultra chipset
- SATA II (3Gb/s)
- includes IEEE1394/Firewire (VIA VT6307)
Last updated 2025-12-16T17:10:04Z
Board info score is 9.1/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Miscellaneous
-> Network
-> Power Management
-> Power Regulation
-> Super I/O
CPU family support
5 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.0
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Size
1.4MB
Filename
Name
Version
1.0
Arch
x86-64
OS support
Windows 2000
Windows NT 4.0
Size
819.6KB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

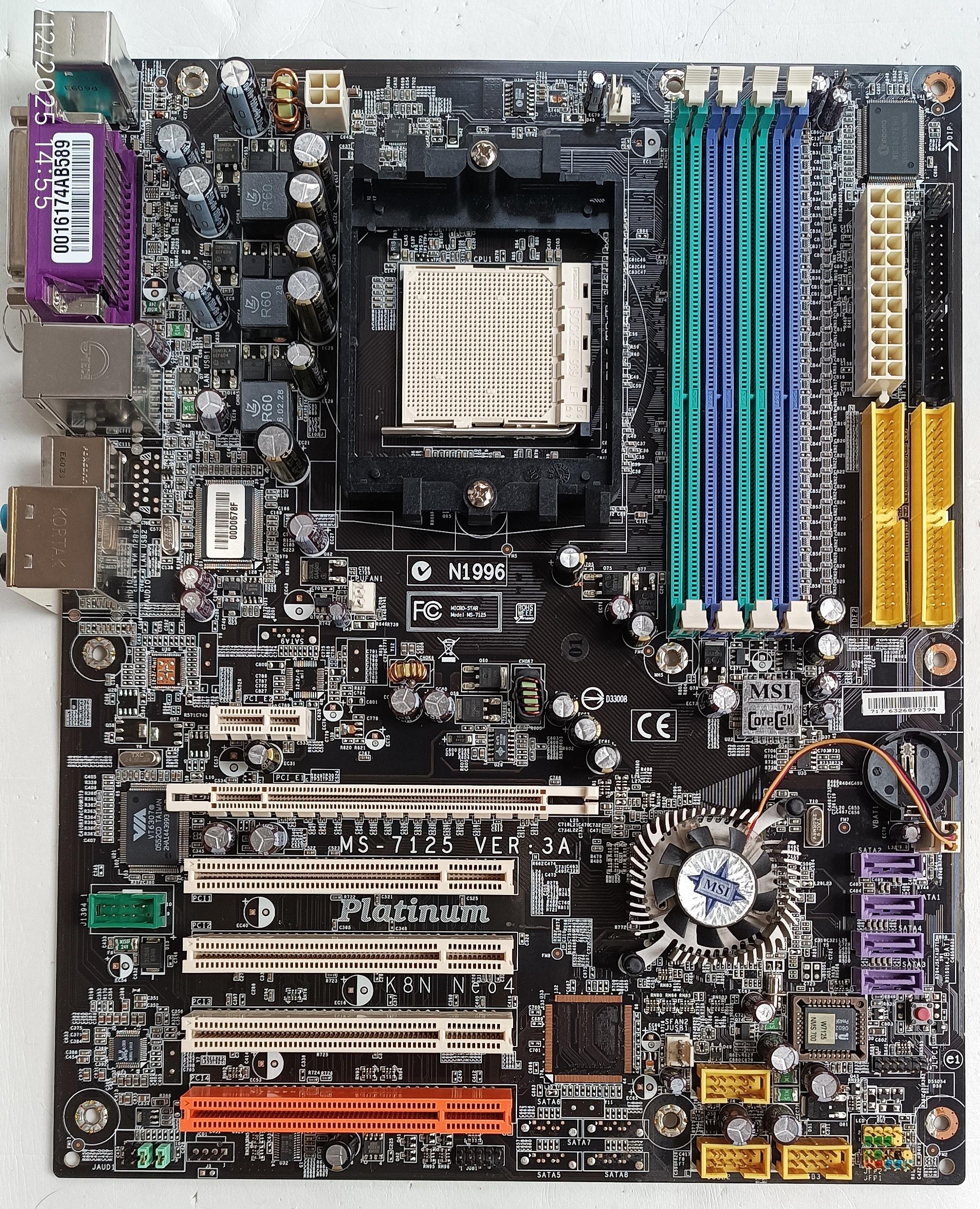

Image 1 of 3 (Karbist)

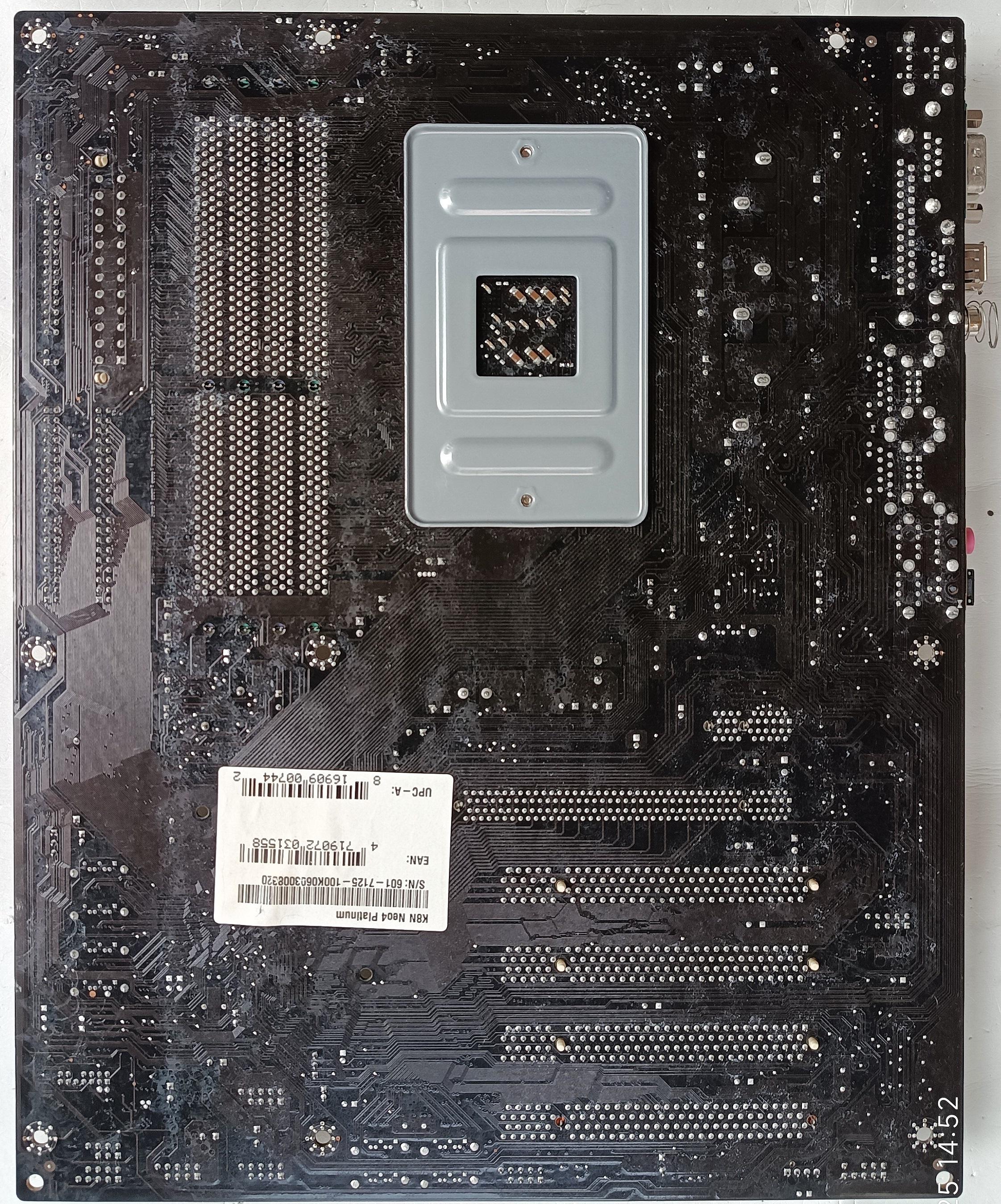

Image 2 of 3 (Karbist)
Image 3 of 3 (Karbist)
