MSI G31M4-F

Description

Chips

BIOS 7

Drivers 3

Documentation 3

Chipset

Intel G31 (Bearlake-G)

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz

Form factor

microATX (max 244 x 244 mm)

Dimensions

Empty

Cache

None/Integrated in the CPU

Max RAM size

4GB

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

Also known as

MSI MS-7527 (v1.X)
Casper Neo (unknown model) system board
MSI G31M4

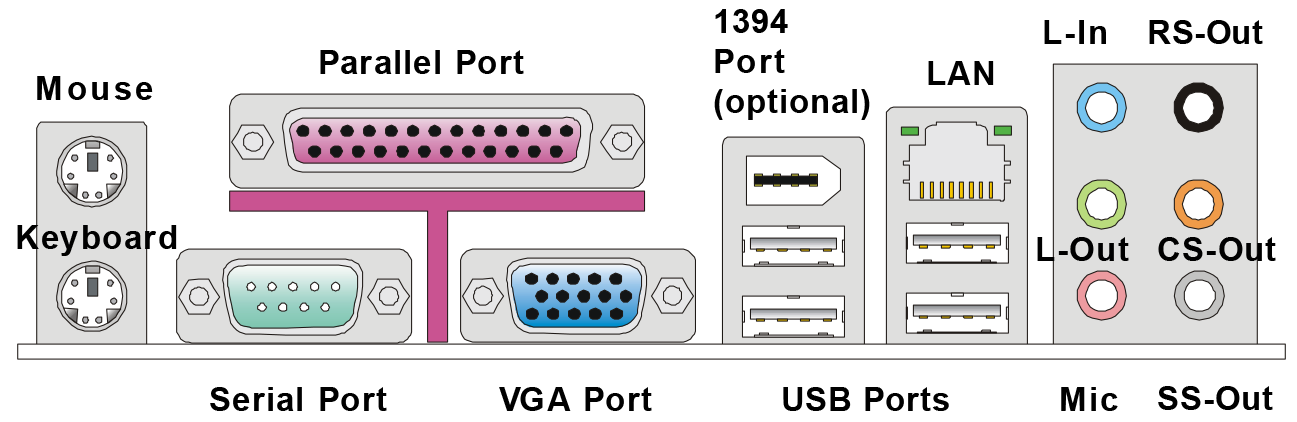

I/O ports

1x

3.5mm Audio Combo

2x

FireWire 400

1x

Floppy interface

1x

IDE interface

1x

Parallel

1x

RJ-45 LAN

1x

S/PDIF

4x

SATA II

1x

Serial

8x

USB 2.0

1x

VGA

Expansion slots

3x

32-bit PCI

1x

PCIe x16

Known issues

Underpowered VRM

The onboard VRM may not provide sufficient power for certain processors or configurations.

Notes

This motherboard only supports processors with up to 95W TDP (Thermal Design Power). Processors with higher TDP will NOT operate on this motherboard. Please refer to the CPU Support List in the Documentations section for a list of supported processor models.
A variant with Realtek RTL8101E LAN also exists. It is named G31M4-L and it uses a different BIOS (due to incompatible option ROM in the BIOS of this motherboard).
May also have an IEEE1394 (FireWire) port and/or a TPM (Trusted Platform Module) header, both are optional.

Last updated 2025-08-11T08:05:01Z

Board info score is 9.5/10

Chips

-> Chipset part

Intel 82G31 (GMCH) Intel 82801GB (ICH7)

-> Audio

Realtek ALC888 (7.1+2 ch HDA CODEC)

-> FireWire ctrl.

JMicron JMB381 (2 port FireWire 400 PCIe ctrl.)

-> Network

Realtek RTL8111C (PCIe Gigabit Ethernet)

-> Super I/O

Fintek F71882FG

-> Video

Intel GMA 3100 (Graphics Media Accelerator 3100)

CPU family support

7 BIOS files available

AMI - 7 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

63-0100-000001-00101111-081209-Bearlake-0AAAA000

Note

Modified Casper OEM BIOS for LGA771 Xeon support, by ismailTPC_Hastanesi

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-052209-Bearlake-0AAAA000

Note

Last official BIOS version. Updated CPU microcode and LAN option ROM

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-110608-Bearlake-0AAAA000

Note

Updated CPU microcode

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-100908-Bearlake-0AAAA000

Note

Fixes a CPU smart fan function bug after resuming from S3 sleep mode

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-071408-Bearlake-0AAAA000

Note

Updated CPU microcode

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-070408-Bearlake-0AAAA000

Note

Updated CPU microcode and shortened system resume timings for S3 sleep mode

Core version

080015

BIOS version

Logs

POST string

63-0100-000001-00101111-041108-Bearlake-0AAAA000

Note

First BIOS version

Core version

080015

BIOS version

Logs

3 drivers available

Name

Version

OS support

Arch

Size

Filename

Name

Intel 9xx and 3 series graphics driver

Version

14.32.4

OS support

Windows 2000

Windows XP/2k3

Arch

Size

47.9MB

Filename

Name

Intel Chipset Device Software

Version

9.2.0.1030

OS support

Windows 2000

Windows XP/2k3

Arch

Size

Empty

Filename

infinst-autol.zip

Name

Realtek HD audio driver

Version

R2.74

OS support

Windows 2000

Windows 7

Windows Vista

Windows XP/2k3

Arch

Size

30.7MB

Filename

0001-wdm-r274.zip

3 board documents available

Release date

File

Logs

Release date

File

CPU Support List

Logs

Release date

File

Logs

Release date

File

Logs

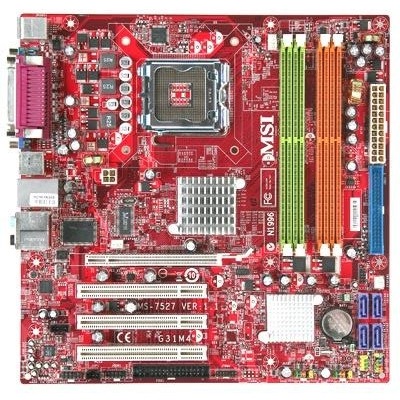

Image 1 of 3 (MSI)

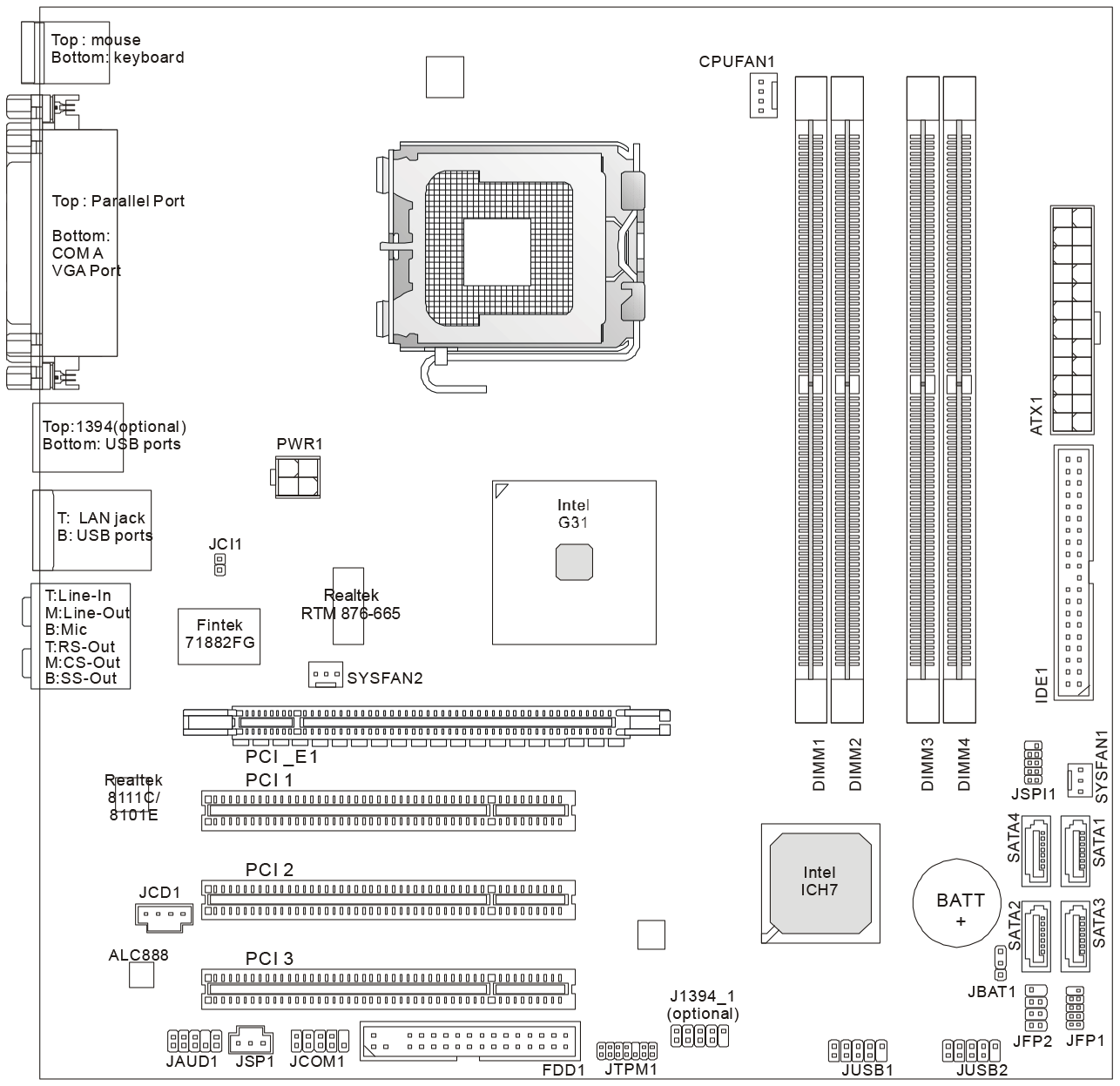

Image 2 of 3 (MSI)

Image 3 of 3 (MSI)
