MSI 970A SLI Krait Edition
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 224mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- MSI MS-7693 Ver. 5.x
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
6x
SATA III
1x
Serial
12x
USB 2.0
2x
USB 3.0
2x
USB 3.1 Type-A
Expansion slots2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Notes
- Supports SLI and CrossFire.
Last updated 2025-06-15T16:08:07Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> USB ctrl.
CPU family support
5 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10
Windows 7
Windows 8.x
Windows Vista
Arch
x86
, x86-64
, IA-64
Size
8.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
2014-06-23
File
Logs
Chip
Release date
2014-11-18
File
Logs
Chip
Release date
File
Logs

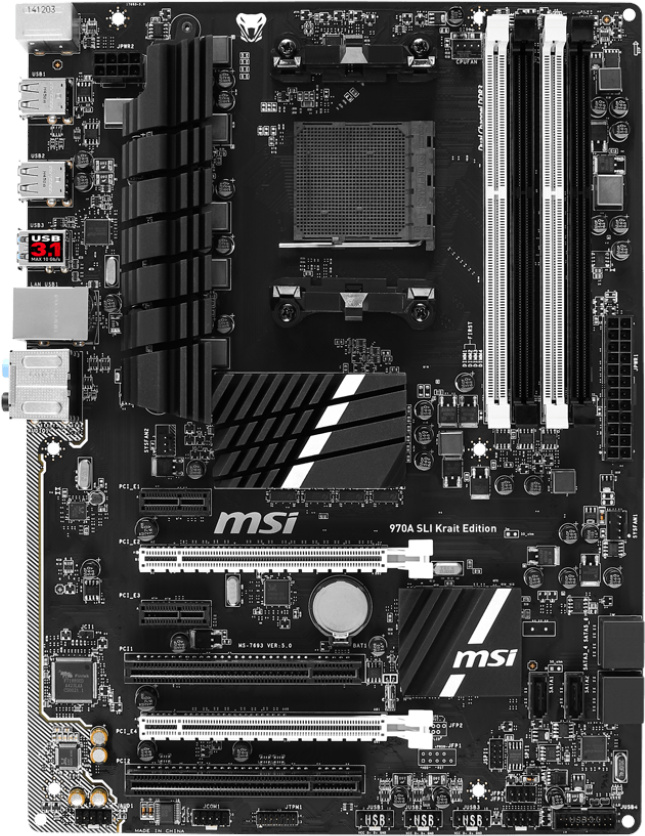

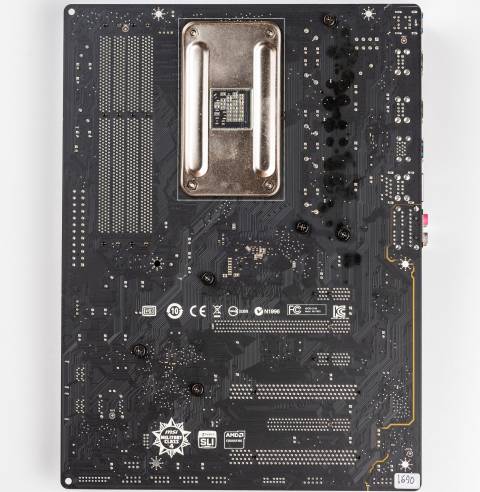

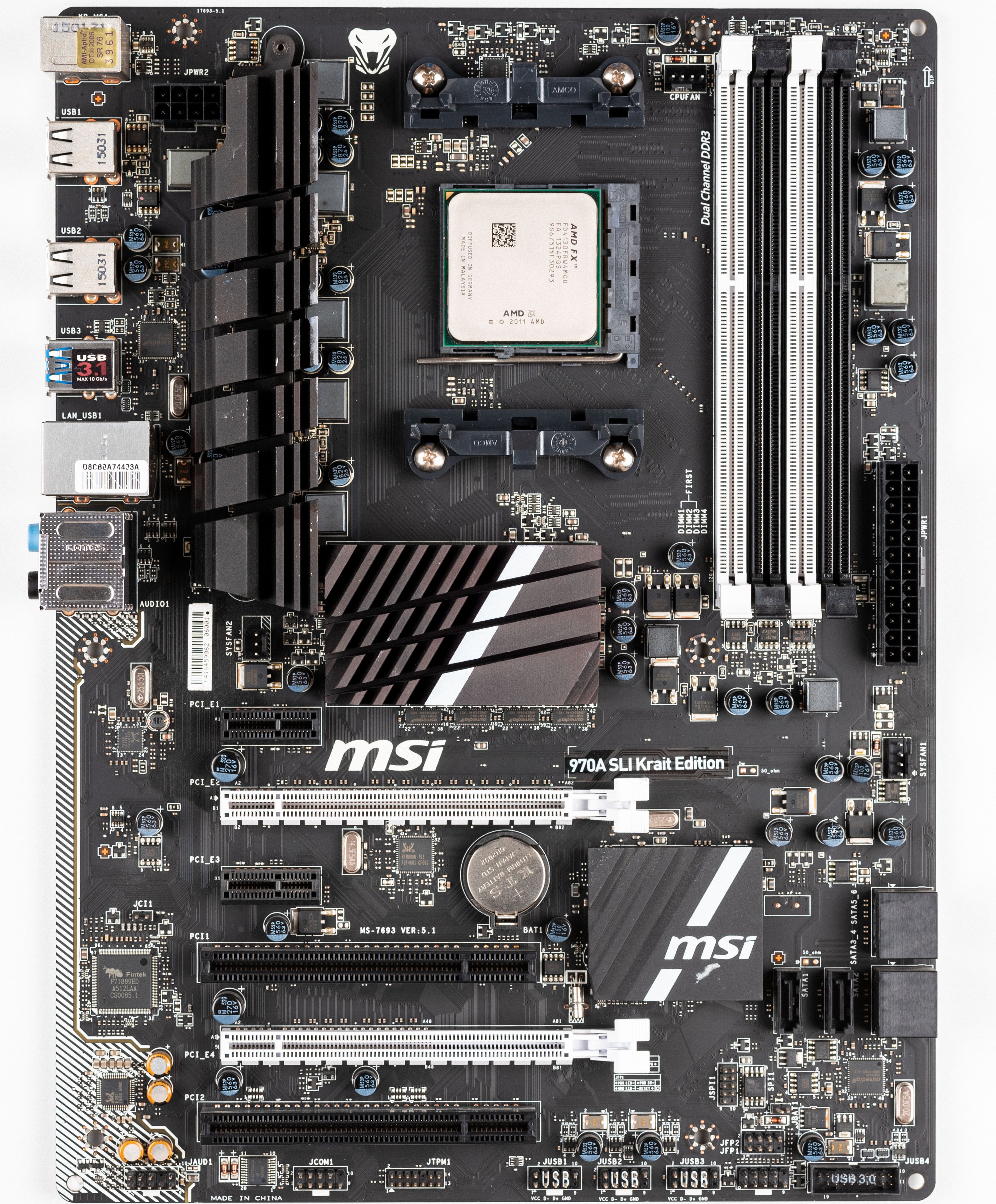

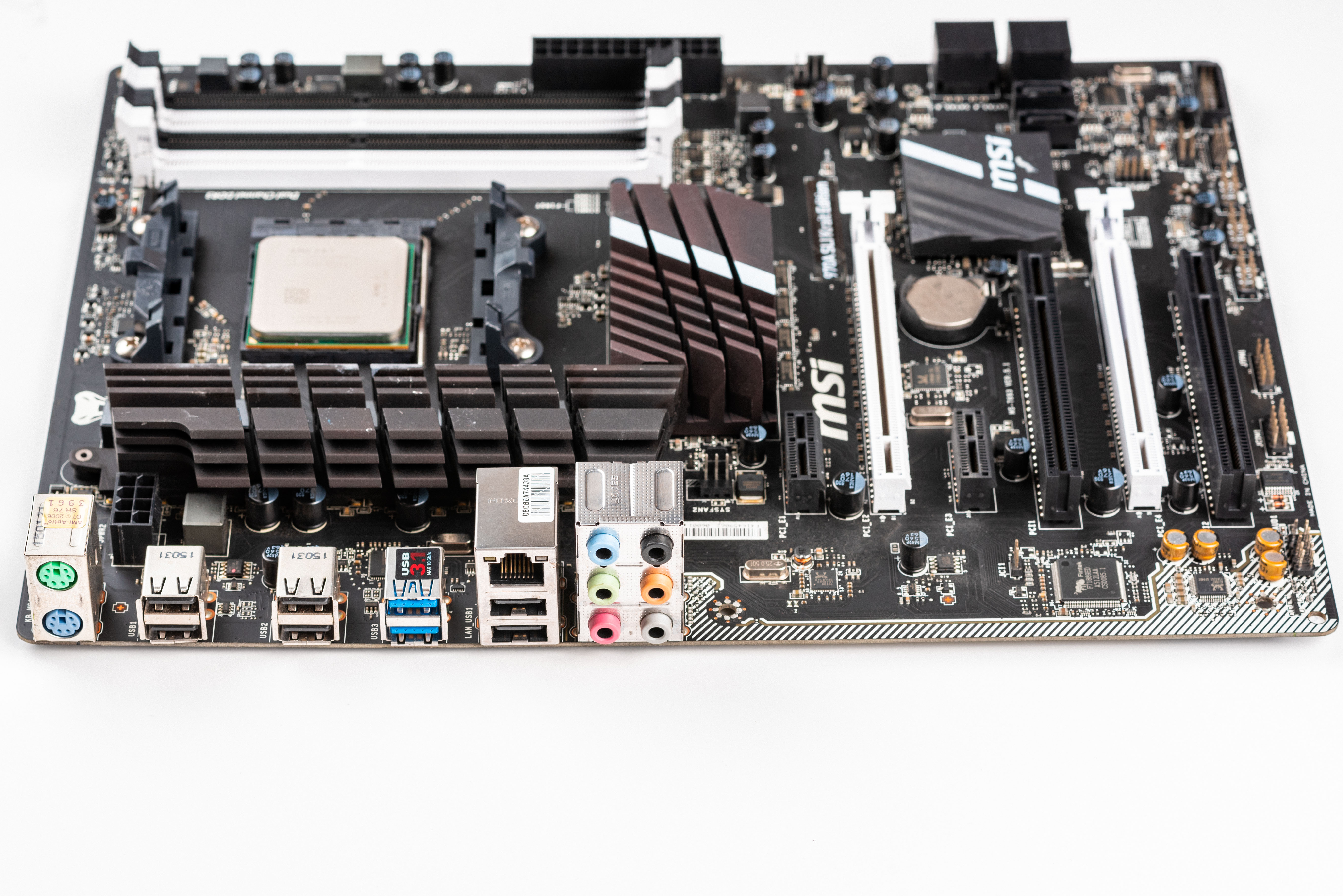

Image 1 of 5 (MSI)
Image 2 of 5 (Motherboard Continuum)
Image 3 of 5 (MSI)
Image 4 of 5 (Motherboard Continuum)
Image 5 of 5 (Motherboard Continuum)
