MSI 785GTM-E45
Logs
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 229mm
Cache
None/Integrated in the CPU
Max RAM size
8 GB
RAM type DDR2 UDIMM
PSU connector
Also known as
- MSI MS-7549
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-04-26T20:57:33Z
Board info score is 7.3/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
No BIOS files available
No drivers available
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

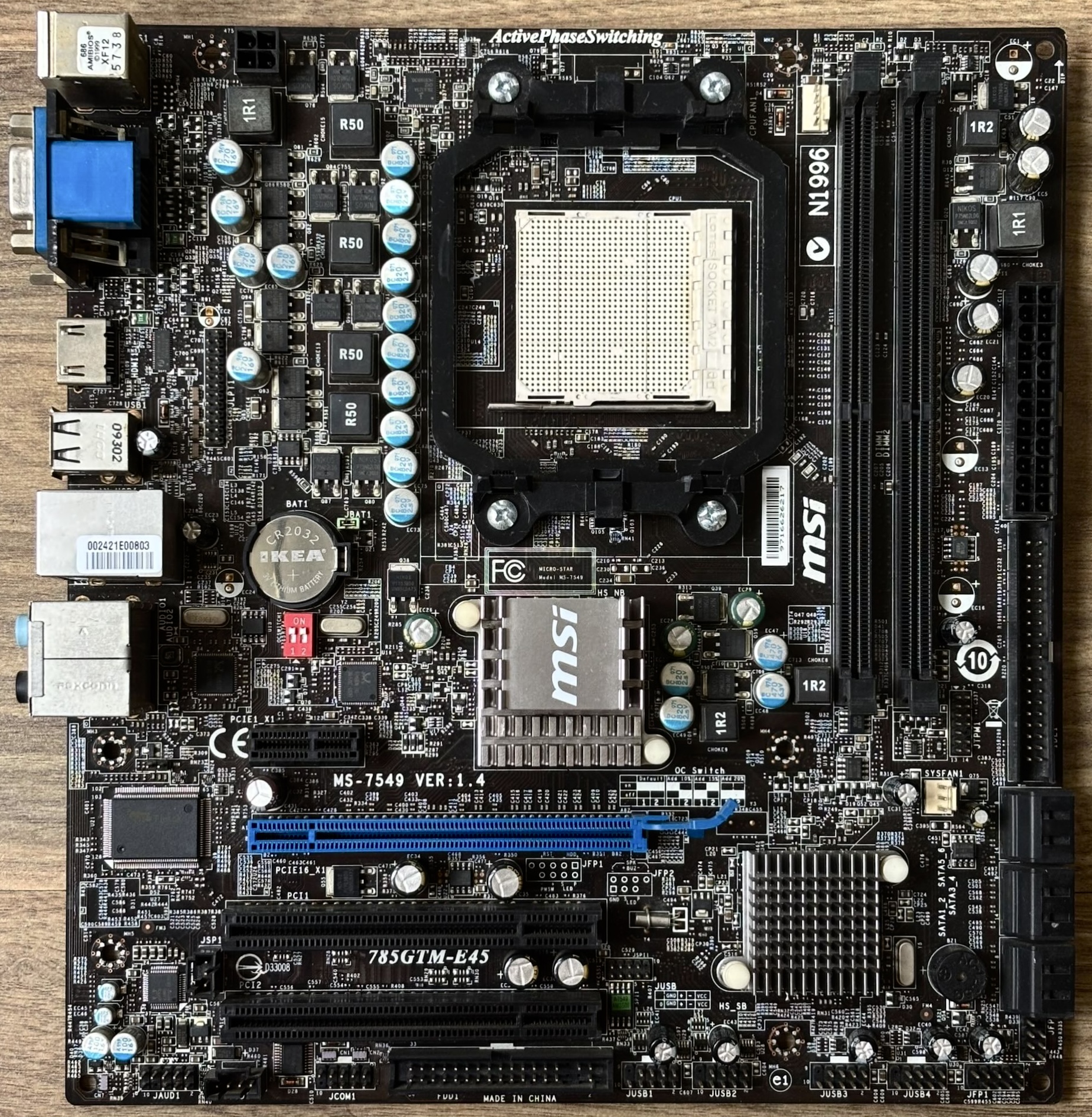

Image 1 of 2 (Momoka)

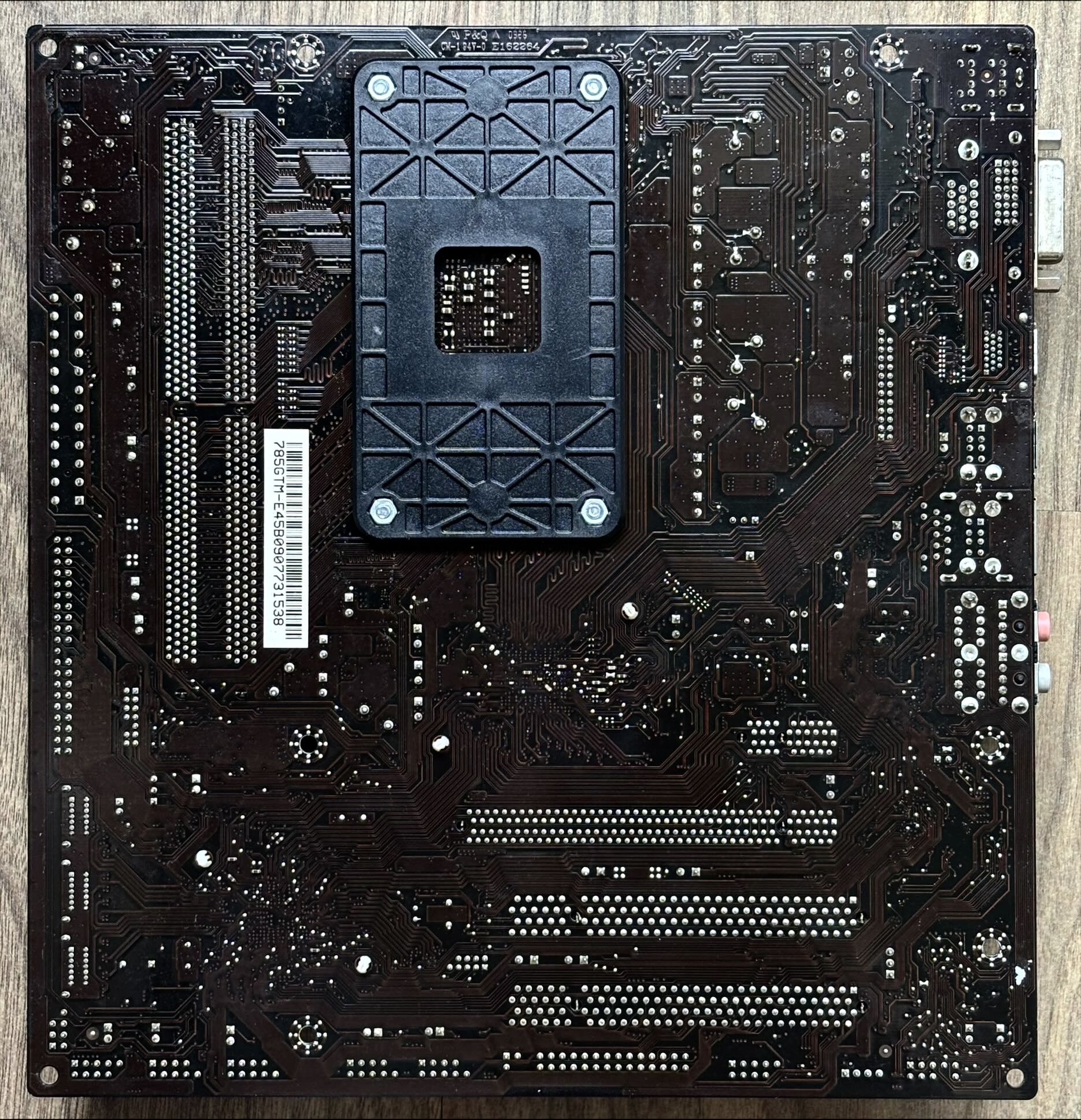

Image 2 of 2 (Momoka)
