MSI 785GM-E65
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-7596 Ver:1.2
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Uses Realtek ALC888S or Realtek ALC889 Audio Chip

Last updated 2025-12-21T13:22:16Z
Board info score is 8.6/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-021811-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-120810-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-090310-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-081710-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-050610-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040910-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-120909-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-092809-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-070809-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-070309-ATHLON64-A7596200
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

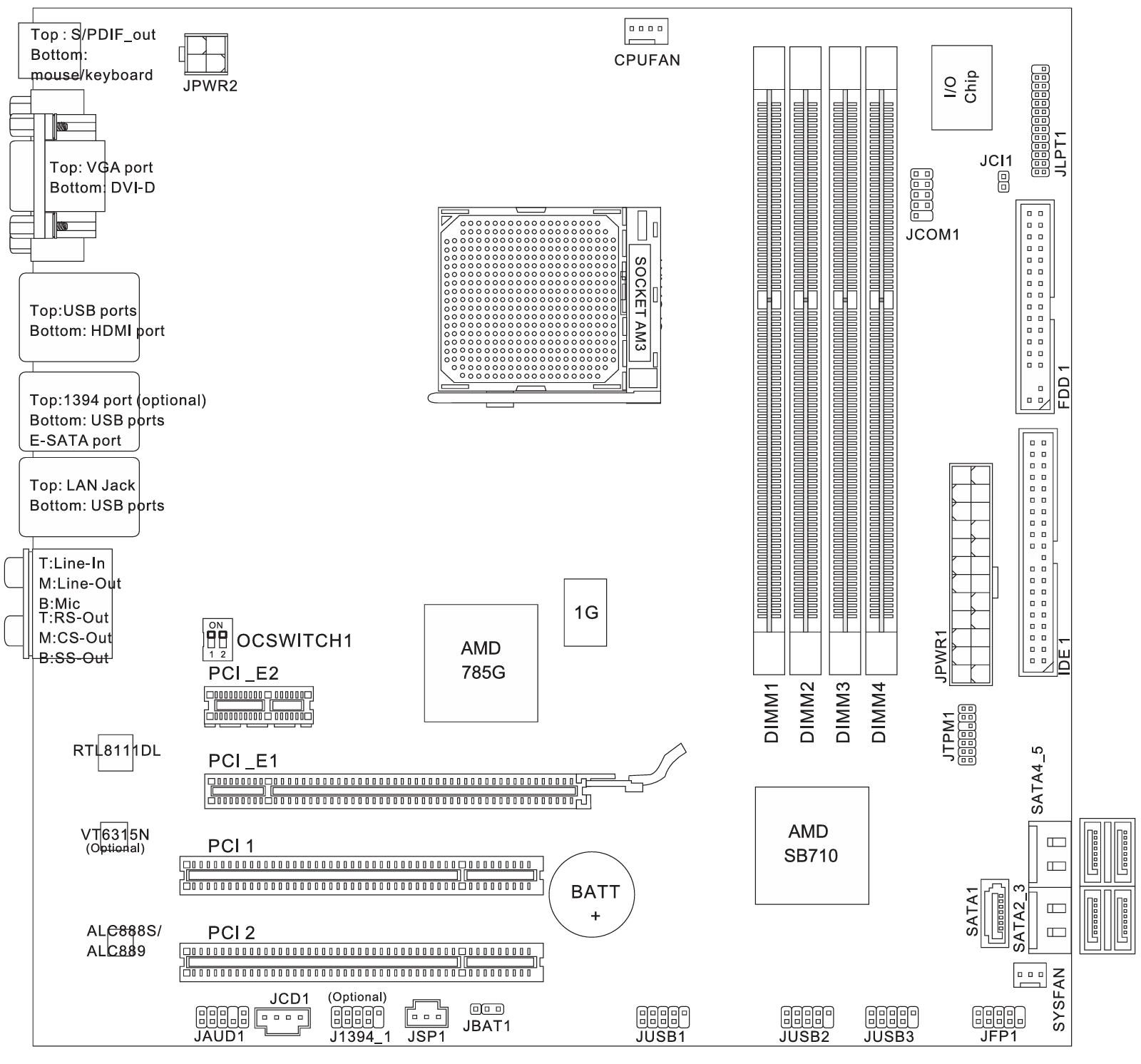

image1 Image 1 of 3 (MSI)

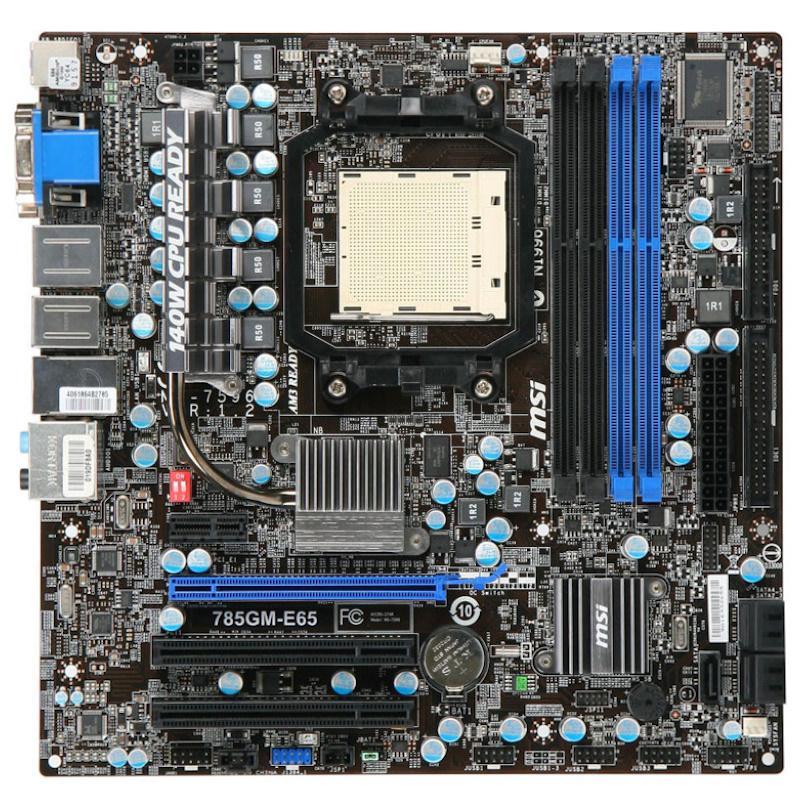

image2 Image 2 of 3 (MSI)

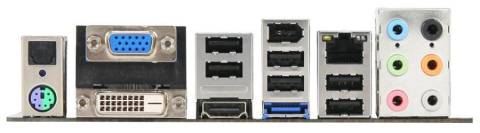

image3 Image 3 of 3 (MSI)
