MSI 760GM-P22 (FX)
Logs
chipChipset
cpuSocket
Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 228mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-7641 (v4.x)

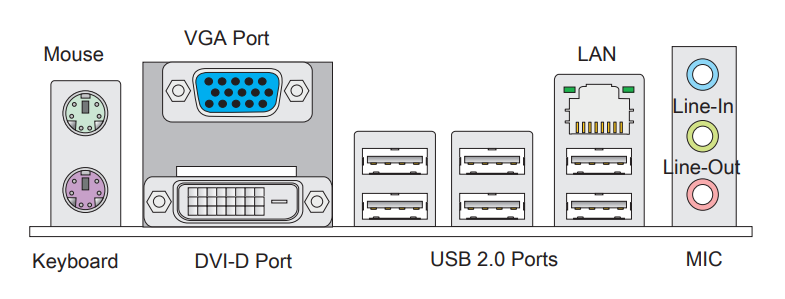

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2024-07-22T17:49:39Z
Board info score is 7.9/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0100-000001-00101111-042215-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-112514-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-121412-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-112812-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-103112-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-032312-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-030712-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-030612-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-021712-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-100711-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-093011-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
POST string
65-0100-000001-00101111-070711-LISBON-A7641100
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename

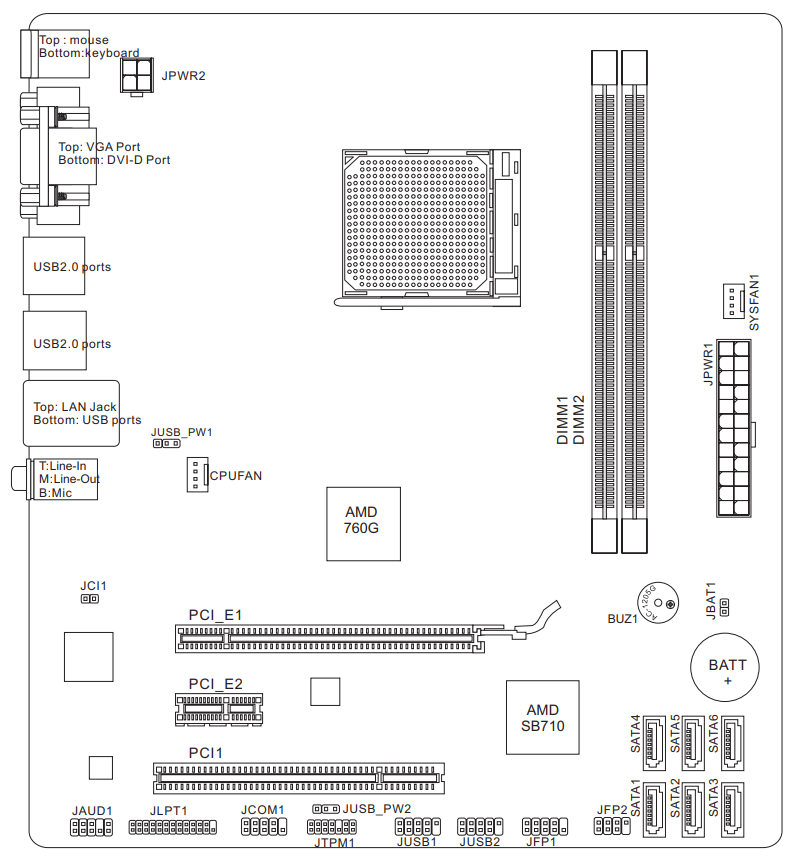

image1 Image 1 of 2 (MSI)
image2 Image 2 of 2 (MSI)
